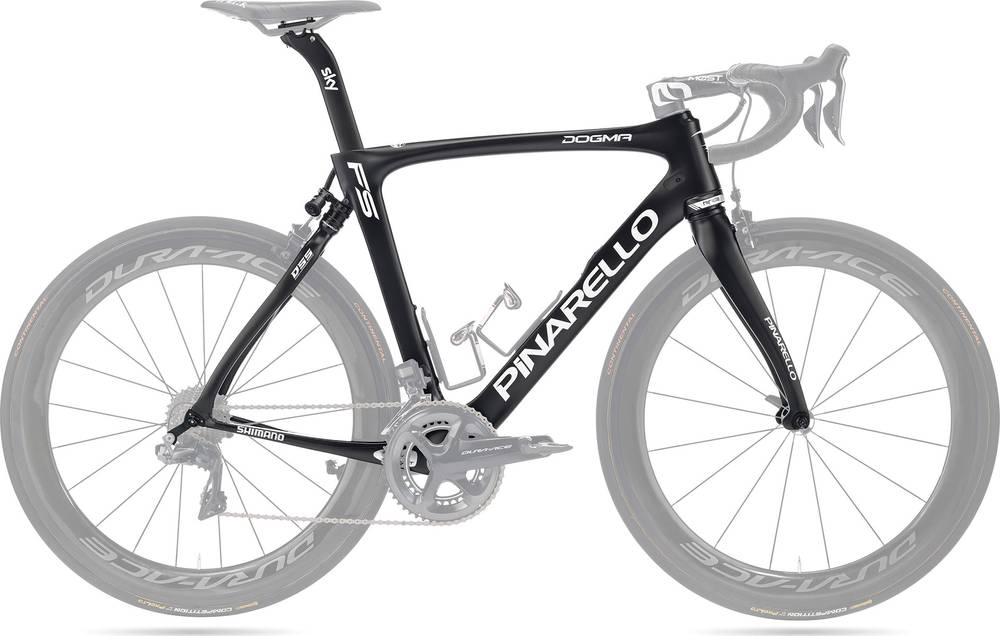

Pinarello Dogma FS Frameset 2020
2020 Road
Estimate price |
10,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon
Suspension Fork
Pinarello ONDA F12, ForkFlap, Torayca T1100
Drivetrain
Bottom Bracket
Italian Threaded
Cockpit
Headset
Drop-in-Bearing System, 1 1/4"-1 1/2"
Seat
Seatpost
Dogma FS Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 53cm | 55cm | 56cm | 57.5cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.5 mm | 1.51 mm |
| Stack | 558 mm | 563 mm | 573 mm | 587 mm |
| Reach | 372 mm | 380 mm | 382 mm | 388 mm |
| Top Tube Length | 539 mm | 551 mm | 559 mm | 569 mm |
| Seat Tube Angle | 73.7 ° | 73.4 ° | 73 ° | 73 ° |
| Seat Tube Length | 530 mm | 550 mm | 560 mm | 575 mm |
| Head Tube Angle | 72 ° | 72.3 ° | 72.7 ° | 73.2 ° |
| Head Tube Length | 127 mm | 132 mm | 140 mm | 153 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Dogma FS Frameset completes the Pinarello Dogma model. Pinarello released 171 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Pinarello Dogma 60.1 Frameset 2020 is the most affordable frame of this model and has a price of 5500$. On the other hand, Pinarello Dogma FS Frameset 2020, is the most expensive and costs 10000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, you could also get a good Race frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Pinarello Dogma FS Frameset price was 10000$. Comparing the average cost of a Race frame to this one, you will see that Dogma FS Frameset price is 309% more expensive.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
