Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 RD-R9200 12s
Front Derailleur
Shimano Dura Ace Di2 FD-9200 11S
Cassette
Shimano Dura Ace CS-R9200 12S
Crank
Shimano Dura Ace Di2 RD-R9200 12s
Bottom Bracket
Shimano Dura Ace SM-BB9200
Chain
Shimano Dura Ace CN-HG 12S
Wheels
Rims
PRINCETON GRIT 4540 DB
Tires
Pirelli P ZERO Race TLR 35-622
Brakes
Brakes
Front: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor, Rear: Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data

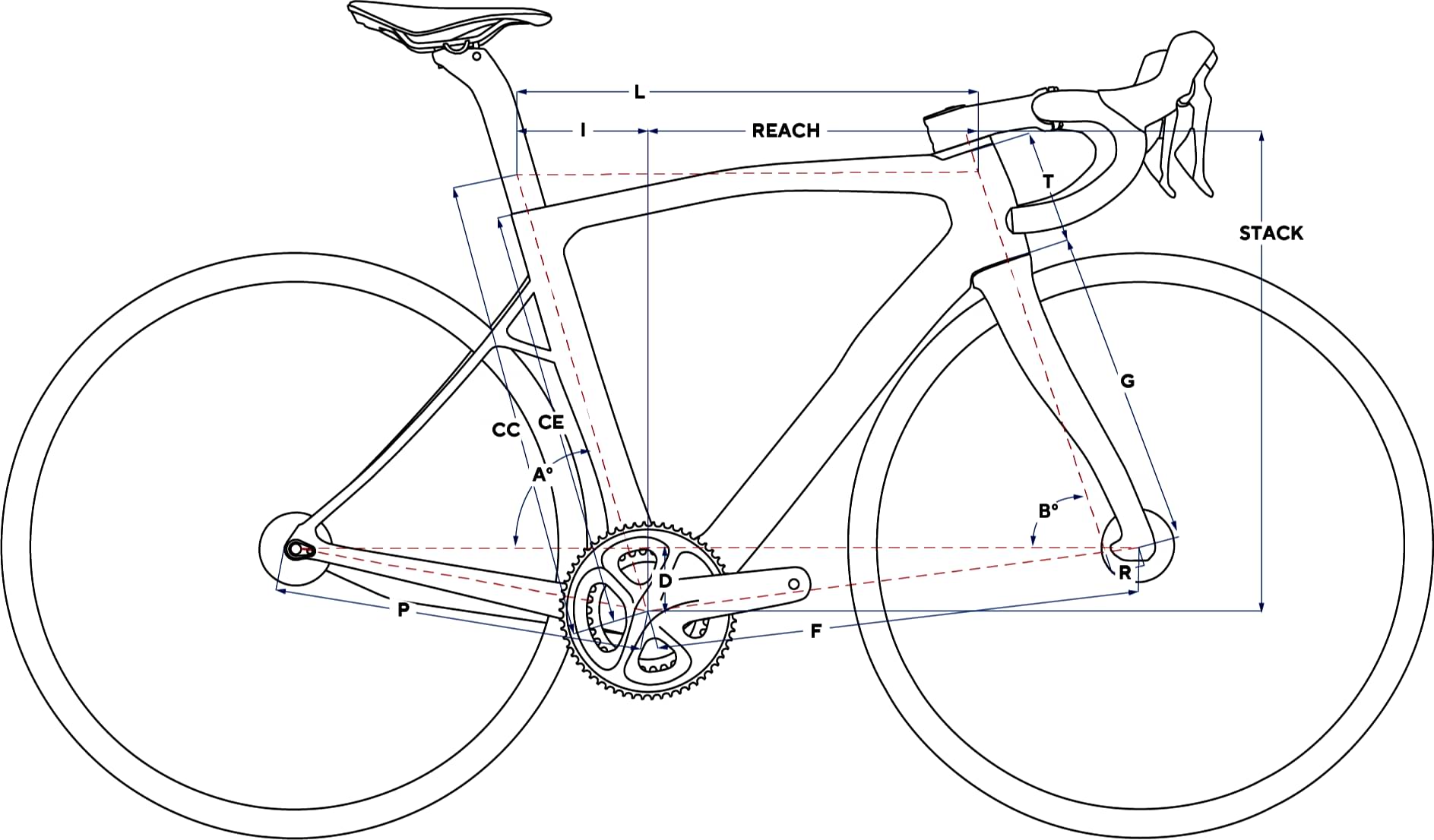

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.5 mm | 1.49 mm | 1.48 mm | 1.5 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.61 mm | 1.68 mm |
| Bottom Bracket Height | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 264 mm | 264 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 515.2 mm | 526.5 mm | 533.1 mm | 539.6 mm | 550 mm | 559.4 mm | 569.9 mm | 579.4 mm | 592.7 mm | 623 mm | 661.3 mm |
| Reach | 340.3 mm | 349.1 mm | 356.4 mm | 362.7 mm | 370.4 mm | 372.2 mm | 374 mm | 375.6 mm | 381.8 mm | 386.3 mm | 394.8 mm |
| Top Tube Length | 496 mm | 506 mm | 516 mm | 526 mm | 536 mm | 543 mm | 548 mm | 556 mm | 566 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.8 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 119 mm | 124 mm | 129 mm | 138 mm | 146 mm | 167 mm | 165 mm | 178 mm | 214 mm | 254 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

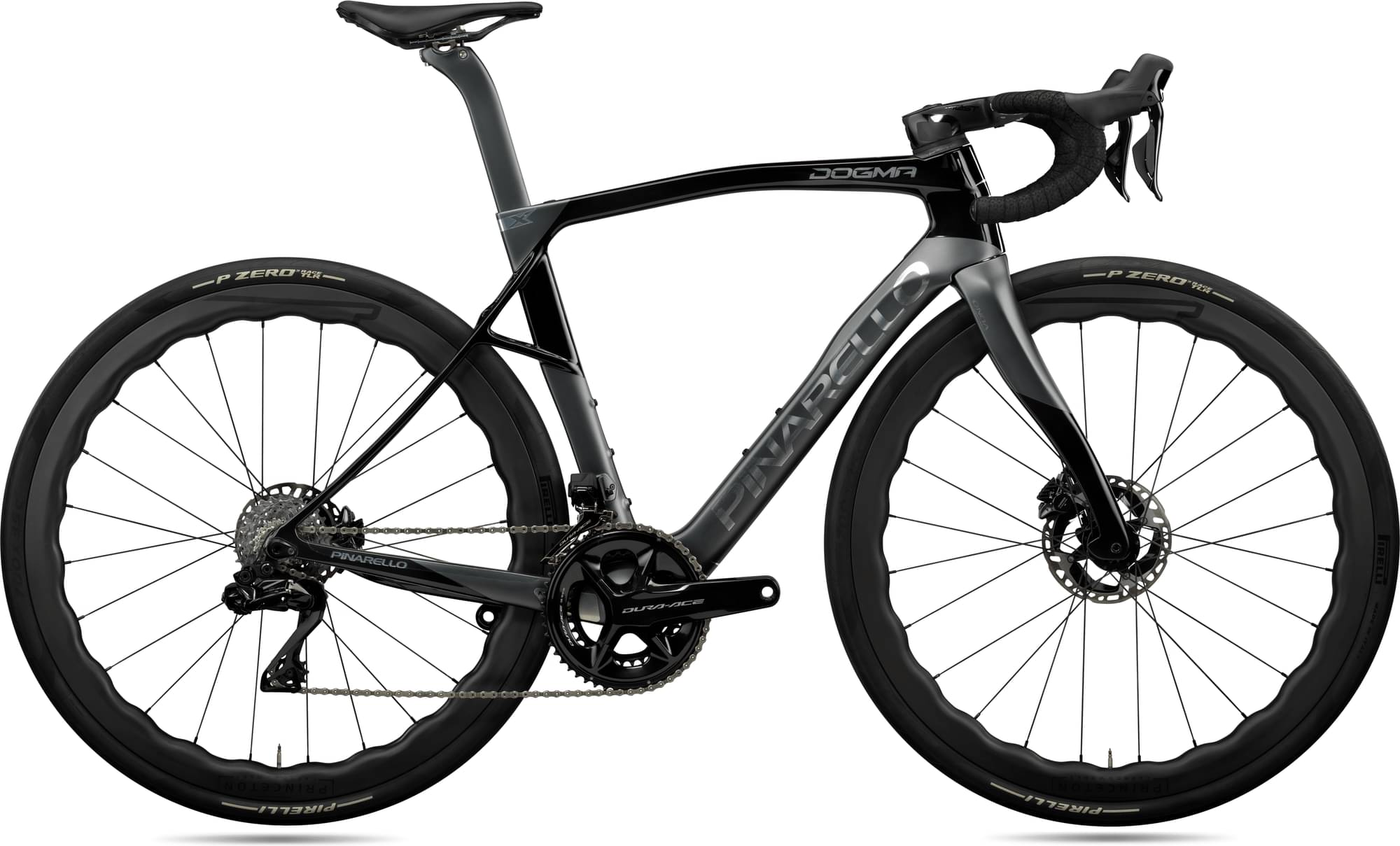

DOGMA X DURA ACE Di2 belongs to the Pinarello Dogma model. 174 bikes variations carry this model name so far. You can easily view all of the Pinarello Dogma bikes models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the DOGMA X DURA ACE Di2 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DOGMA X DURA ACE Di2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
