Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
Drivetrain
Rear Derailleur
Campagnolo Super Record WRL 12S
Front Derailleur
Campagnolo Super Record WRL 12S
Cassette
Campagnolo Super Record WRL 12S
Crank
Campagnolo Super Record WRL 12S
Bottom Bracket
campagnolo super record
Chain
Campagnolo Super Record WRL 12S
Wheels
Rims
Campagnolo Bora WTO
Tires
Pirelli P ZERO Race TLR 35-622
Brakes
Brakes
Front: Campagnolo Super Record 2 pistons caliper, 160mm rotor, Rear: Campagnolo Super Record 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
Bar Tape MOST Ultragrip evo 3mm - Black
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data

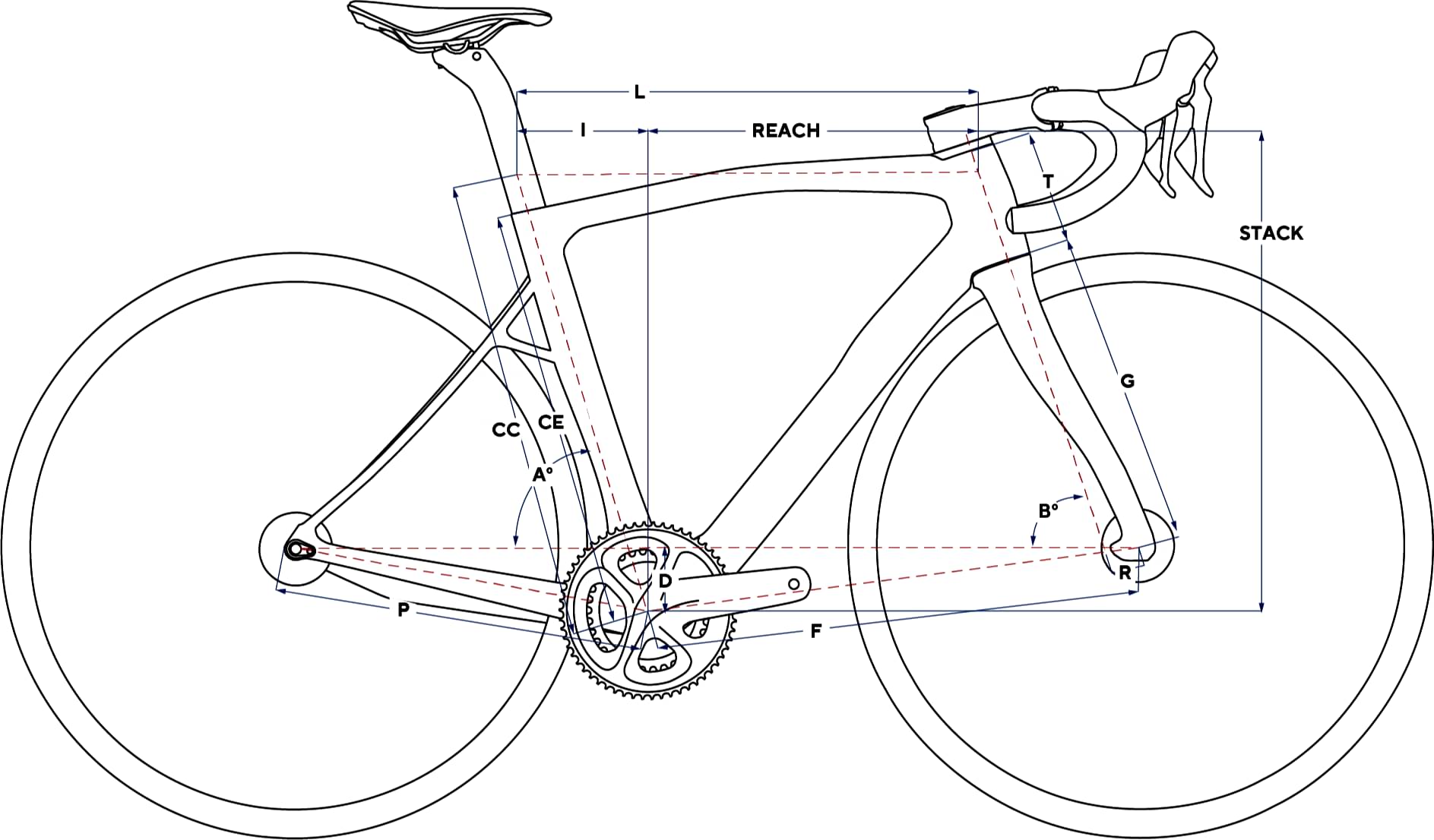

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.5 mm | 1.49 mm | 1.48 mm | 1.5 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.61 mm | 1.68 mm |
| Bottom Bracket Height | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 259 mm | 264 mm | 264 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 515.2 mm | 526.5 mm | 533.1 mm | 539.6 mm | 550 mm | 559.4 mm | 569.9 mm | 579.4 mm | 592.7 mm | 623 mm | 661.3 mm |
| Reach | 340.3 mm | 349.1 mm | 356.4 mm | 362.7 mm | 370.4 mm | 372.2 mm | 374 mm | 375.6 mm | 381.8 mm | 386.3 mm | 394.8 mm |
| Top Tube Length | 496 mm | 506 mm | 516 mm | 526 mm | 536 mm | 543 mm | 548 mm | 556 mm | 566 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.8 ° | 73 ° | 73 ° |
| Head Tube Length | 107 mm | 119 mm | 124 mm | 129 mm | 138 mm | 146 mm | 167 mm | 165 mm | 178 mm | 214 mm | 254 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
DOGMA X SUPER RECORD WRL is part of the Pinarello Dogma model. 171 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
DOGMA X SUPER RECORD WRL components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on DOGMA X SUPER RECORD WRL are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello DOGMA X SUPER RECORD WRL has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
