Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Wheels 27.5" -
Travel Front 90mm -
Suspension Hardtail
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Bottom Bracket Height | 295 mm | 295 mm | 300 mm |
| Trail | 78.75 mm | 75.5 mm | 75.5 mm |
| Top Tube Length | 556 mm | 572 mm | 591 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 430 mm | 465 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 92 mm | 92 mm | 92 mm |
| Chainstay Length | 415 mm | 417 mm | 419 mm |
| Wheelbase | 1053 mm | 1060 mm | 1078 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 55 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview

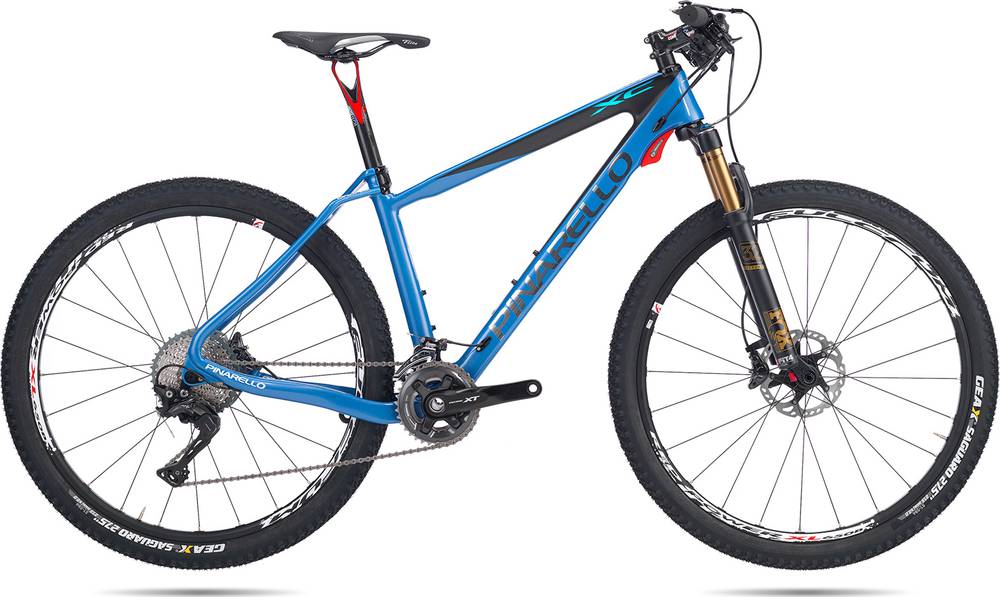

Dogma XC 7.7 completes the Pinarello Dogma model. Pinarello launched 171 frames of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Dogma XC 7.7 components
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
