Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 305 mm | 305 mm | 305 mm |
| Trail | 89.8 mm | 88.1 mm | 88.1 mm | 84.6 mm |
| Top Tube Length | 570 mm | 589 mm | 613 mm | 633 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 430 mm | 465 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.75 ° | 70 ° | 70 ° | 70.25 ° |
| Head Tube Length | 92 mm | 92 mm | 97 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 436 mm | 440 mm |
| Wheelbase | 1075 mm | 1088 mm | 1114 mm | 1132 mm |
| Bottom Bracket Drop | 72 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

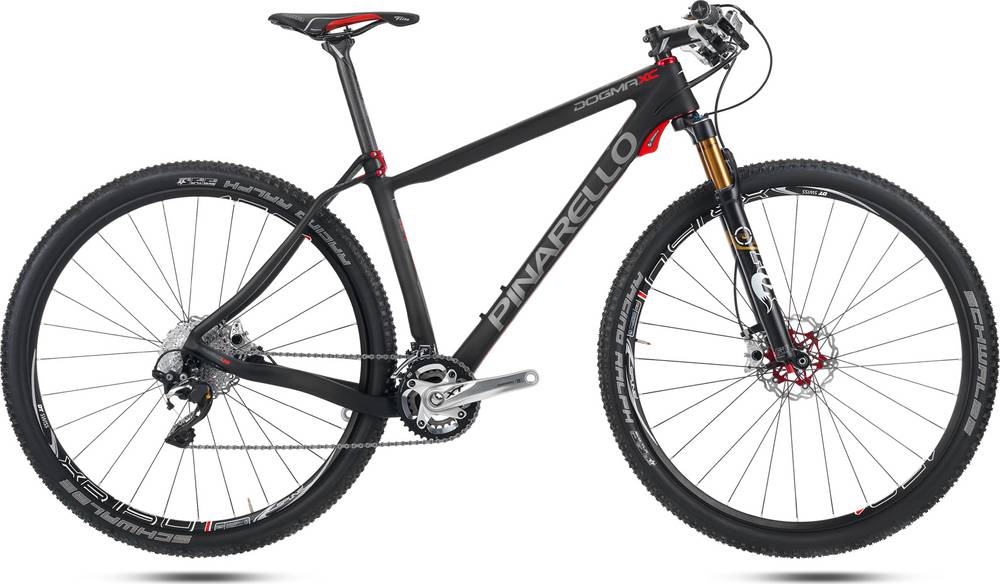

Dogma XC 9.9 completes the Pinarello Dogma model. There are 171 frames that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry frames
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Dogma XC 9.9 components
Sizes
Dogma XC 9.9 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
