Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 305 mm | 305 mm | 305 mm |
| Trail | 89.8 mm | 88.1 mm | 88.1 mm | 84.6 mm |
| Top Tube Length | 570 mm | 589 mm | 613 mm | 633 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 430 mm | 465 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.75 ° | 70 ° | 70 ° | 70.25 ° |
| Head Tube Length | 92 mm | 92 mm | 97 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 436 mm | 440 mm |
| Wheelbase | 1075 mm | 1088 mm | 1114 mm | 1132 mm |
| Bottom Bracket Drop | 72 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

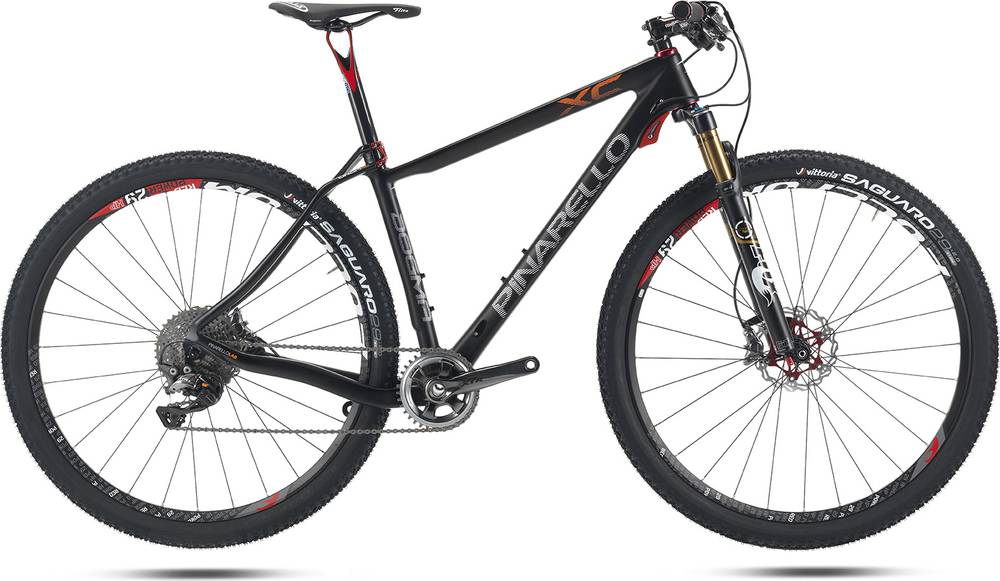

Dogma XC 9.9 belongs to the Pinarello Dogma model. There are 171 frames that carry this model name. Take a sneak peek at all Pinarello Dogma frames models from 2016, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Overview of components
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
