Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Trail | 89.8 mm | 89.8 mm | 84.6 mm | 82.9 mm |
| Top Tube Length | 581 mm | 600 mm | 619 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 69.75 ° | 69.75 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 92 mm | 92 mm | 98 mm | 116 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1100 mm | 1119 mm | 1133 mm | 1144 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

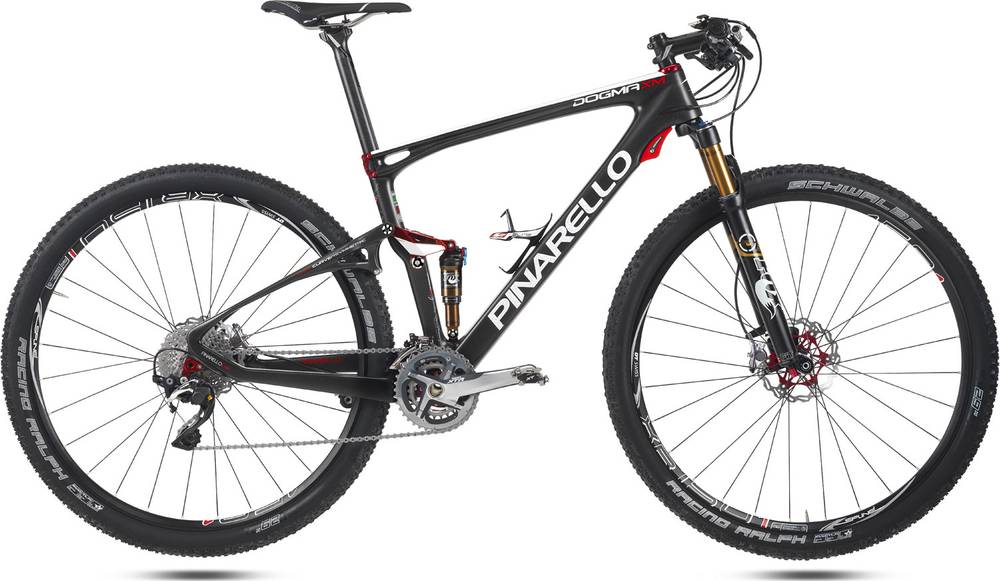

DOGMA XM 9.9 belongs to the Pinarello Dogma model. Pinarello released 171 frames variations of this model so far. Take a sneak peek at all Pinarello Dogma frames models from 2016, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
DOGMA XM 9.9 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
