Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Drivetrain
Front Derailleur
Shimano 105 Di2 12S
Cassette
Shimano 105 Di2 12S
Crank
Shimano 105 Di2 12S
Bottom Bracket
Shimano 105 Di2 12S
Chain
Shimano 105 Di2 12S
Wheels
Rims
MOST Ultrafast 40*
Brakes
Brakes
Front: Shimano 105 2 pistons caliper, 160mm rotor, Rear: Shimano 105 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

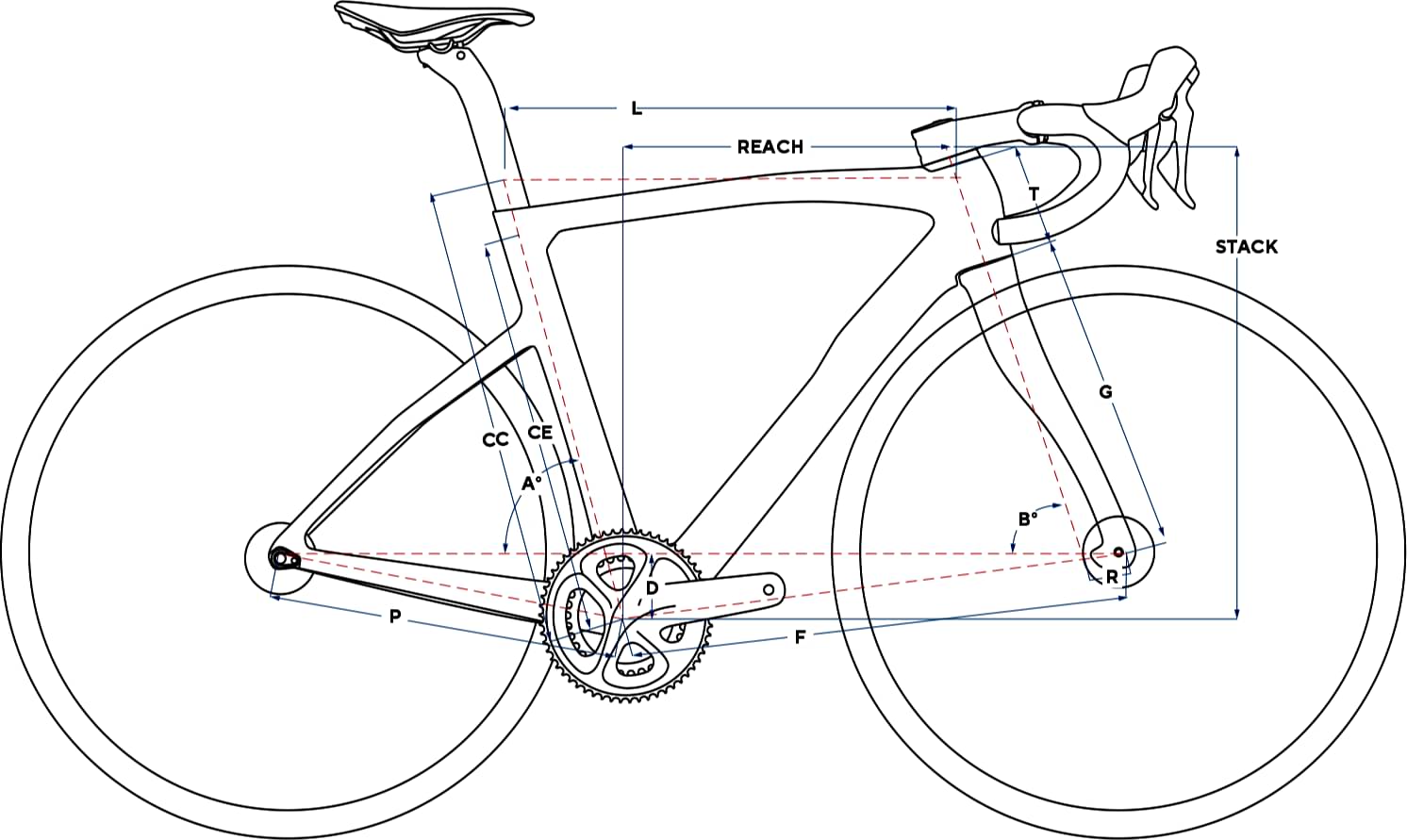

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54.5cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 493.5 mm | 508.7 mm | 516.5 mm | 523.3 mm | 533.6 mm | 548.9 mm | 561.3 mm | 590.3 mm | 624.5 mm |
| Reach | 342.3 mm | 356.2 mm | 363.1 mm | 369.1 mm | 376.6 mm | 379.3 mm | 381.8 mm | 386.4 mm | 391.3 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 546 mm | 556 mm | 569 mm | 591 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 515 mm | 525 mm | 560 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 138 mm | 149.5 mm | 178 mm | 220 mm |
| Chainstay Length | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

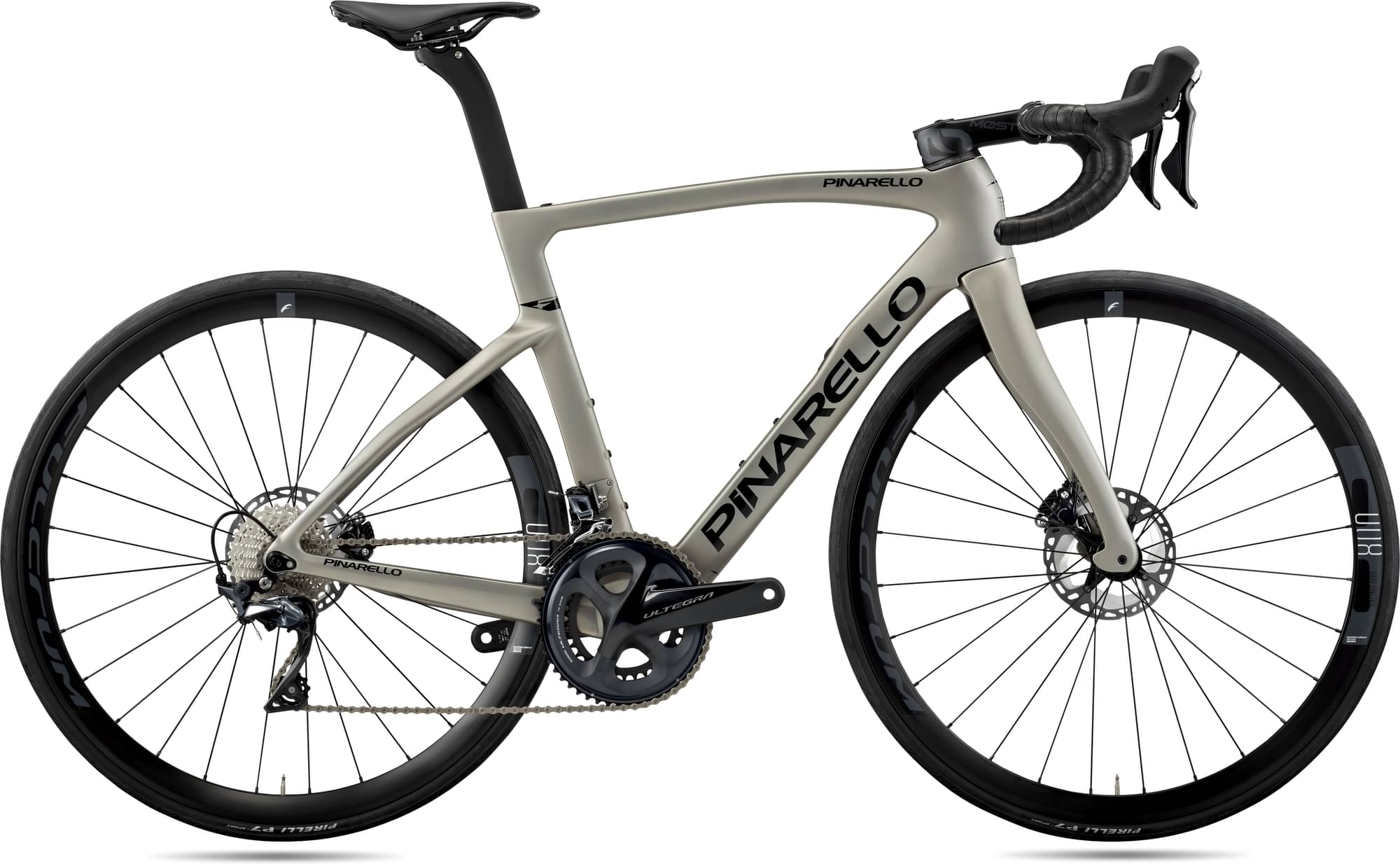

Model Overview
F5 ULTEGRA belongs to the Pinarello F5 model. Pinarello launched 2 bikes of this model so far. Take a sneak peek at all Pinarello F5 bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
F5 ULTEGRA components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on F5 ULTEGRA are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
