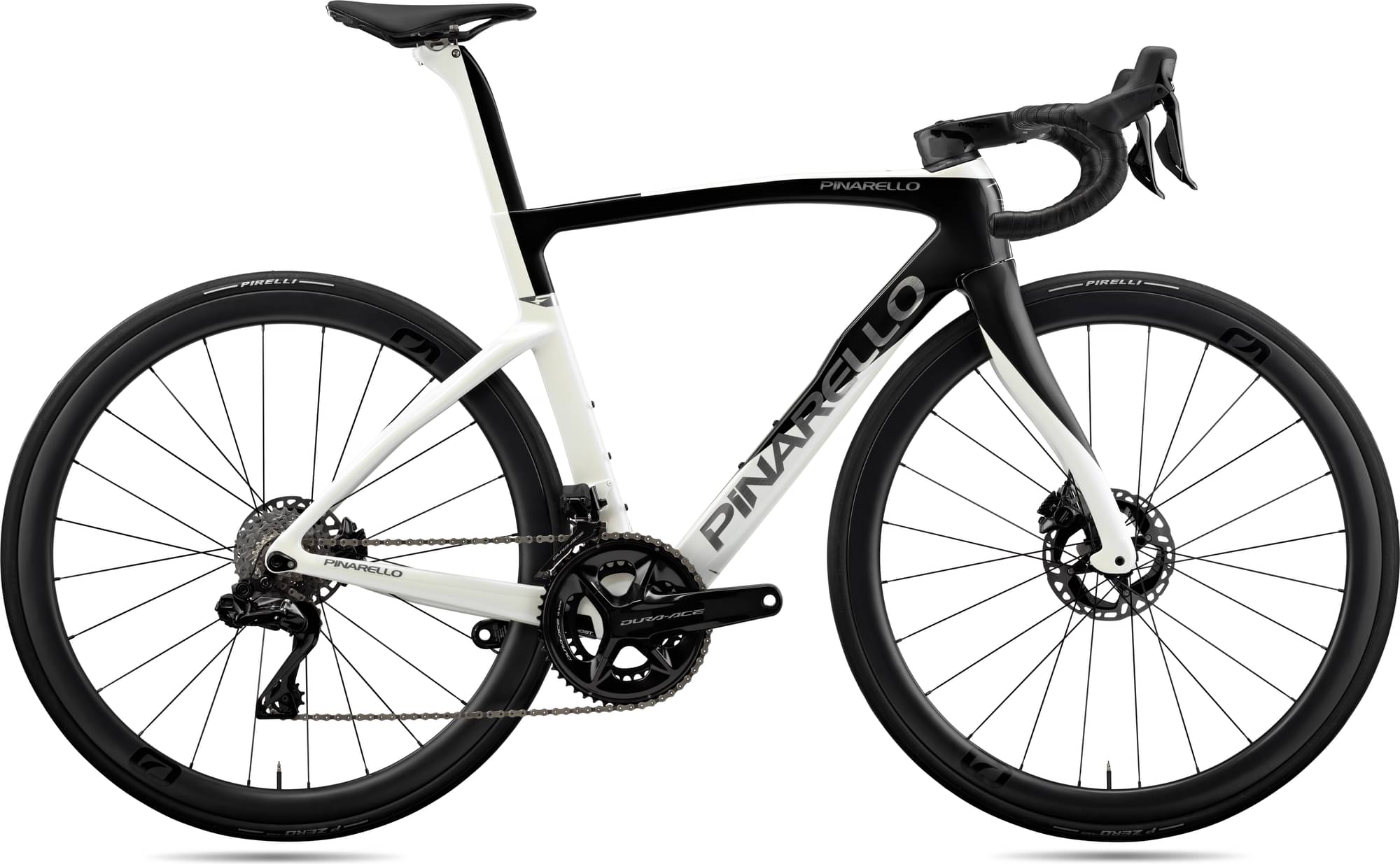

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
Suspension Fork
F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings
Drivetrain
Front Derailleur
Shimano Dura Ace Di2 FD-9200 11S
Cassette
Shimano Dura Ace CS-R9200 12S
Crank
Shimano Dura Ace Di2 FD-R9200 12s
Bottom Bracket
Shimano Dura Ace SM-BB9200
Chain
Shimano Dura Ace CN-HG 12S
Wheels
Rims
MOST Ultrafast 40*
Brakes
Brakes
Front: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor, Rear: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
most bar tape
Seat
Seatpost
fsc frontal seat clamp
Fit data

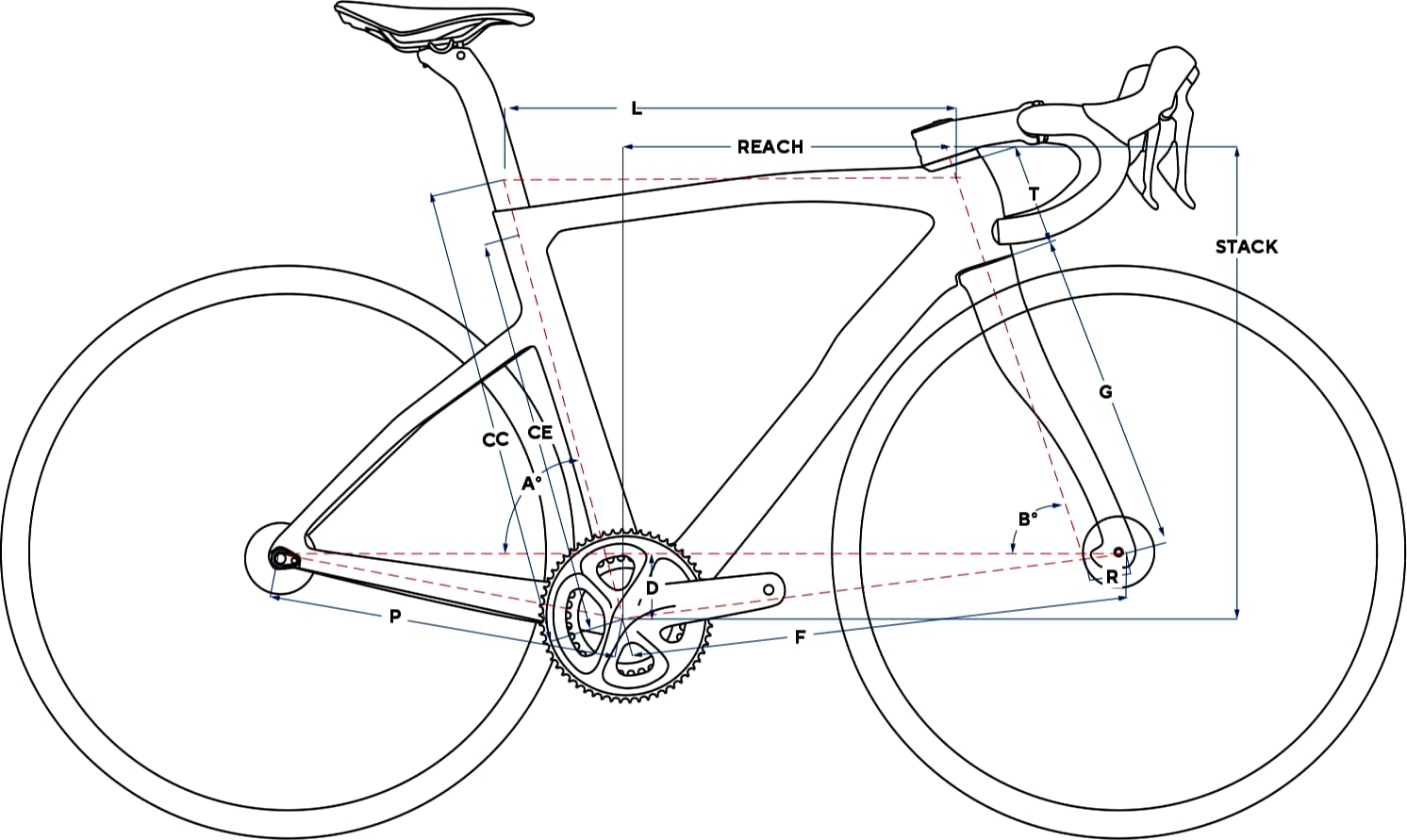

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54.5cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 493.5 mm | 508.7 mm | 516.5 mm | 523.3 mm | 533.6 mm | 548.9 mm | 561.3 mm | 590.3 mm | 624.5 mm |
| Reach | 342.3 mm | 356.2 mm | 363.1 mm | 369.1 mm | 376.6 mm | 379.3 mm | 381.8 mm | 386.4 mm | 391.3 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 546 mm | 556 mm | 569 mm | 591 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 515 mm | 525 mm | 560 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 138 mm | 149.5 mm | 178 mm | 220 mm |
| Chainstay Length | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
F9 DURA ACE Di2 belongs to the Pinarello F9 model. Pinarello launched 2 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
F9 DURA ACE Di2 components
Fork material
F9 DURA ACE Di2 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The F9 DURA ACE Di2 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The F9 DURA ACE Di2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
