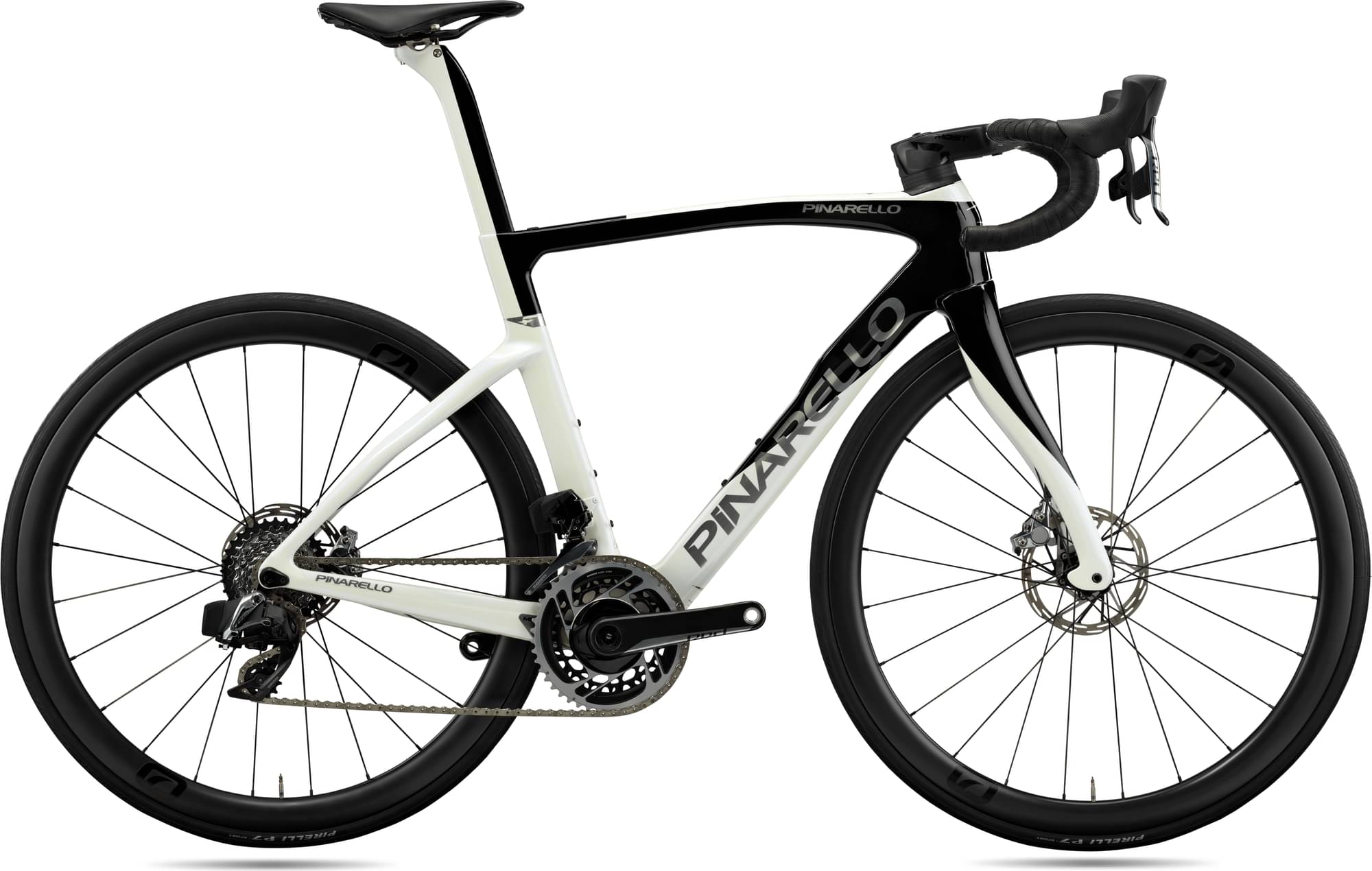

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
Drivetrain
Front Derailleur
SRAM Red AXS
Cassette
SRAM Red XG-1290
Crank
SRAM Red AXS
Bottom Bracket
SRAM Red AXS
Chain
SRAM Red AXS
Wheels
Rims
MOST Ultrafast 40*
Brakes
Brakes
Front: SRAM Red 12S 2 pistons caliper, 160mm rotor, Rear: SRAM Red 12S 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
Bar Tape MOST Ultragrip evo 3mm - Black
Seat
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data

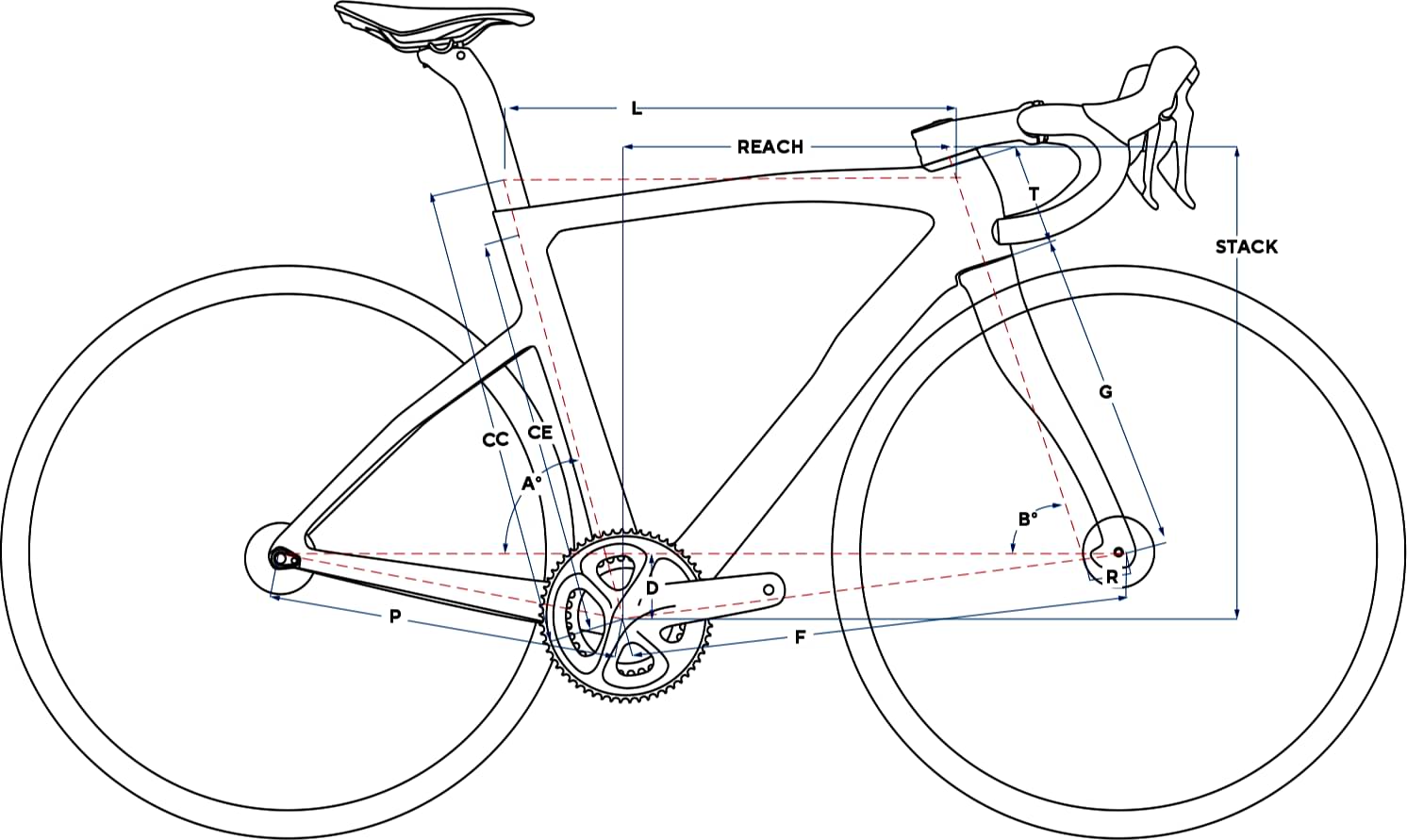

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54.5cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 493.5 mm | 508.7 mm | 516.5 mm | 523.3 mm | 533.6 mm | 548.9 mm | 561.3 mm | 590.3 mm | 624.5 mm |
| Reach | 342.3 mm | 356.2 mm | 363.1 mm | 369.1 mm | 376.6 mm | 379.3 mm | 381.8 mm | 386.4 mm | 391.3 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 546 mm | 556 mm | 569 mm | 591 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 515 mm | 525 mm | 560 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 138 mm | 149.5 mm | 178 mm | 220 mm |
| Chainstay Length | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
F9 SRAM RED AXS is part of the Pinarello F9 model. Pinarello launched 2 bikes of this model so far. Take a sneak peek at all Pinarello F9 bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
F9 SRAM RED AXS components
Fork material
F9 SRAM RED AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on F9 SRAM RED AXS are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello F9 SRAM RED AXS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
