Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 Monocoque Carbon, 142x12 Thru-Axle
Suspension Fork
GAN Carbon, 1 1/8"-1 1/2", 100x12 Thru-Axle
Drivetrain
Rear Derailleur
Shimano 105 5800
Front Derailleur
Shimano 105 5800
Shift Levers
Shimano RS505
Cassette
Shimano 105 5800, 11-28
Crank
Shimano RS505, 50/34
Bottom Bracket
Shimano
Chain
Shimano HG600
Pedals
Not Included
Wheels
Rims
Fulcrum Racing 6 Disc
Tires
Vittoria Zaffiro, 700x25c
Brakes
Brakes
Shimano RS505 Disc
Disk Rotors
Shimano
Cockpit
Stem
MOst Tiger Alu Aero
Handlebar
MOst Jaguar XA Aero
Headset
Integrated, 1 1/8"-1 1/2"
Seat
Saddle
Fizik Antares R7
Seatpost
Aero Carbon UD
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.4 mm | 1.4 mm | 1.4 mm | 1.44 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.53 mm |
| Stack | 512 mm | 519 mm | 531 mm | 538 mm | 549 mm | 562 mm | 573 mm | 581 mm | 596 mm | 615 mm |
| Reach | 360 mm | 373 mm | 378 mm | 384 mm | 392 mm | 390 mm | 393 mm | 396 mm | 401 mm | 401 mm |
| Top Tube Length | 509 mm | 521 mm | 531 mm | 541 mm | 551 mm | 556 mm | 563 mm | 571 mm | 581 mm | 593 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 440 mm | 465 mm | 500 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 595 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 139 mm | 152 mm | 163 mm | 170 mm | 184 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 414 mm | 416 mm | 416 mm | 416 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

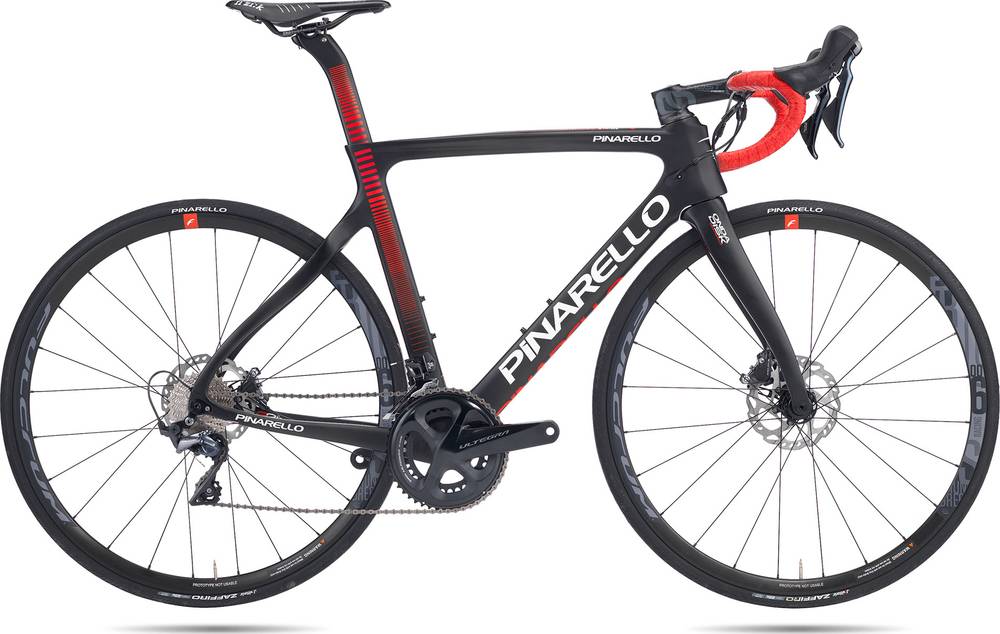

GAN Disk 105 Bike is a Pinarello Gan model. There are 43 bikes that carry this model name. Take a sneak peek at all Pinarello Gan bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Pinarello GAN Easy-Fit 105 Bike 2019 has a starting price of 2250$. Pinarello GAN GR-S Disk Ultegra Bike 2019 on the other hand is the most expensive at 5250$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Pinarello GAN Disk 105 Bike price was 2850$. Doing a quick comparison, we notice that GAN Disk 105 Bike price is 17.54% lower than the average cost of a Race bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The GAN Disk 105 Bike 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello GAN Disk 105 Bike is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
