Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 Monocoque Carbon, 142x12 Thru-Axle
Suspension Fork
GAN GR Carbon, 1 1/8"-1 1/2", 100x12 Thru-Axle
Drivetrain
Rear Derailleur
Shimano 105 5800
Front Derailleur
Shimano 105 5800
Shift Levers
Shimano RS505
Cassette
Shimano 105 5800, 11-32
Crank
Shimano FC-R500, 50/34
Bottom Bracket
Shimano
Chain
Shimano HG600
Pedals
Not Included
Wheels
Rims
Fulcrum Racing 7 Disc
Tires
Vittoria Terreno Mix 33
Brakes
Brakes
Shimano RS505 Disc
Disk Rotors
Shimano
Cockpit
Stem
MOst Tiger Alu Aero
Handlebar
MOst Xylon CT Gravel
Headset
Integrated, 1 1/8"-1 1/2"
Seat
Saddle
Fizik Antares R7
Seatpost
Aero Carbon UD
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42.5cm | 44cm | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.53 mm | 1.57 mm |
| Stack | 513 mm | 518 mm | 525 mm | 538 mm | 556 mm | 582 mm | 606 mm |
| Reach | 340 mm | 345 mm | 357 mm | 366 mm | 372 mm | 380 mm | 387 mm |
| Top Tube Length | 496 mm | 501 mm | 516 mm | 531 mm | 546 mm | 566 mm | 586 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 425 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 135 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 416 mm | 416 mm | 421 mm | 421 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

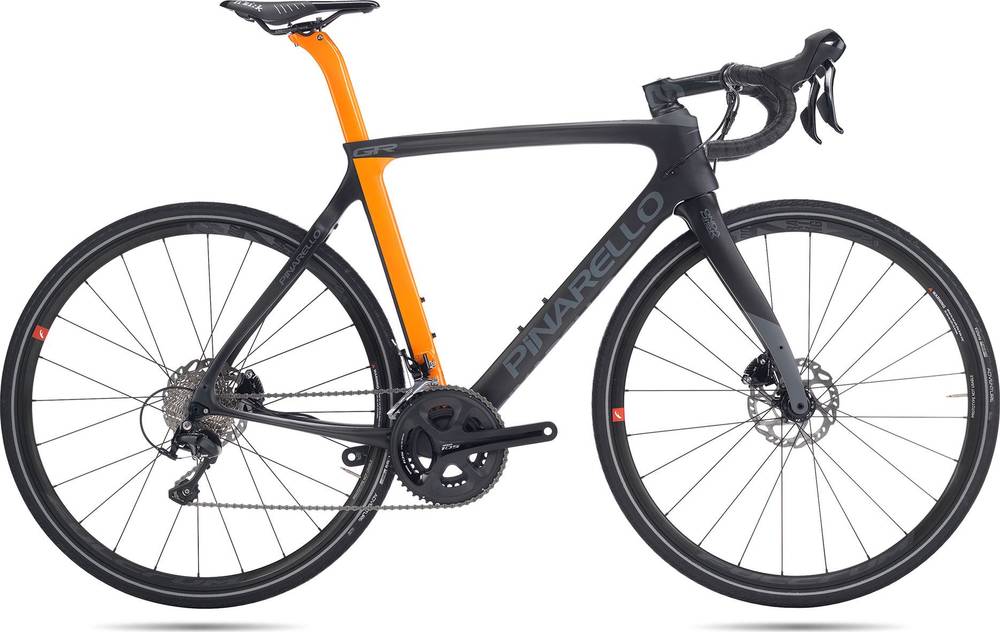

GAN GR 105 Bike completes the Pinarello Gan model. There are 43 bikes that carry this model name. Take a sneak peek at all Pinarello Gan bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Pinarello GAN Easy-Fit 105 Bike 2019 has a starting price of 2250$. Pinarello GAN GR-S Disk Ultegra Bike 2019 on the other hand is the most expensive at 5250$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 3350$. Comparing this to the average Race bike price, we see that the price is 0% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Pinarello GAN GR 105 Bike 2019, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAN GR 105 Bike comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
