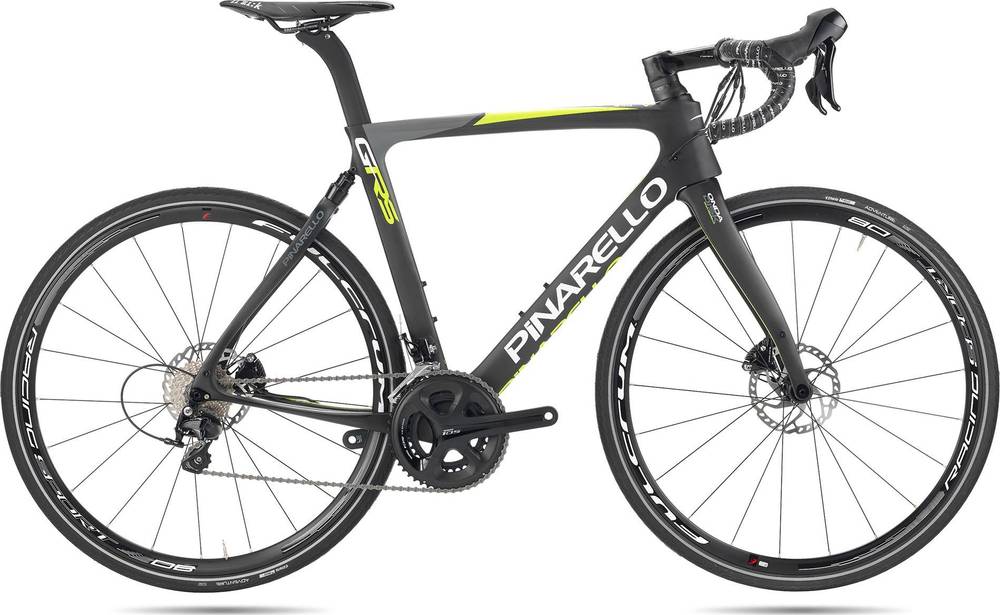

Pinarello GAN GR-S Disk Ultegra Bike 2017
2017 Road
Estimate price |
5,250$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T900 Carbon
Suspension Fork
Onda Asymmetric Carbon, 1 1/8" - 1 1/2"
Drivetrain
Rear Derailleur
Shimano Ultegra 6800
Front Derailleur
Shimano Ultegra 6800
Shift Levers
Shimano RS685 Hydraulic
Cassette
Shimano Ultegra 6800, 11-32
Crank
Shimano Ultegra 6800, 52/36
Bottom Bracket
Shimano Ultegra 6800
Chain
Shimano HG700
Pedals
Not Included
Wheels
Rims
Fulcrum Sport DB AFS
Tires
Vittoria Adventure, 700x35c
Brakes
Brakes
Shimano RS805 Hydraulic
Disk Rotors
Shimano
Cockpit
Stem
MOst Tiger Alu Aero
Handlebar
MOst Xylon CT Gravel
Headset
Pinarello 1 1/8" - 1 1/2"
Seat
Saddle
Fizik Arione R7
Seatpost
MOst Air 8 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42.5cm | 44cm | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.53 mm | 1.57 mm |
| Stack | 513 mm | 518 mm | 525 mm | 538 mm | 556 mm | 582 mm | 606 mm |
| Reach | 340 mm | 345 mm | 357 mm | 366 mm | 372 mm | 380 mm | 387 mm |
| Top Tube Length | 496 mm | 501 mm | 516 mm | 531 mm | 546 mm | 566 mm | 586 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 425 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 135 mm | 150 mm | 175 mm | 200 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 416 mm | 416 mm | 421 mm | 421 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
GAN GR-S Disk Ultegra Bike is a Pinarello Gan model. Pinarello released 43 bikes variations of this model so far. You can easily view all of the Pinarello Gan bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Pinarello GAN GR-S Disk Ultegra Bike price was 5250$. In conclusion, this bike price is 56.72% higher than the price of the average Race bike.
GAN GR-S Disk Ultegra Bike components
Fork material
GAN GR-S Disk Ultegra Bike has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Pinarello GAN GR-S Disk Ultegra Bike 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello GAN GR-S Disk Ultegra Bike has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
