Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T600 UD, Internal Cable Routing, Italian BB
Suspension Fork
grevil onda fork with forkflap™, tapered head tube
Drivetrain
Rear Derailleur
SRAM apex 1 sgs 11s 1x
Cassette
SRAM apex
Crank
SRAM apex 1 sgs 11s 1x
Bottom Bracket
SRAM apex
Chain
SRAM apex
Brakes
Brakes
Front: SRAM apex 2 pistons caliper, 160mm rotor, Rear: SRAM apex 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero TiCR
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
most alu round seatpost
Fit data

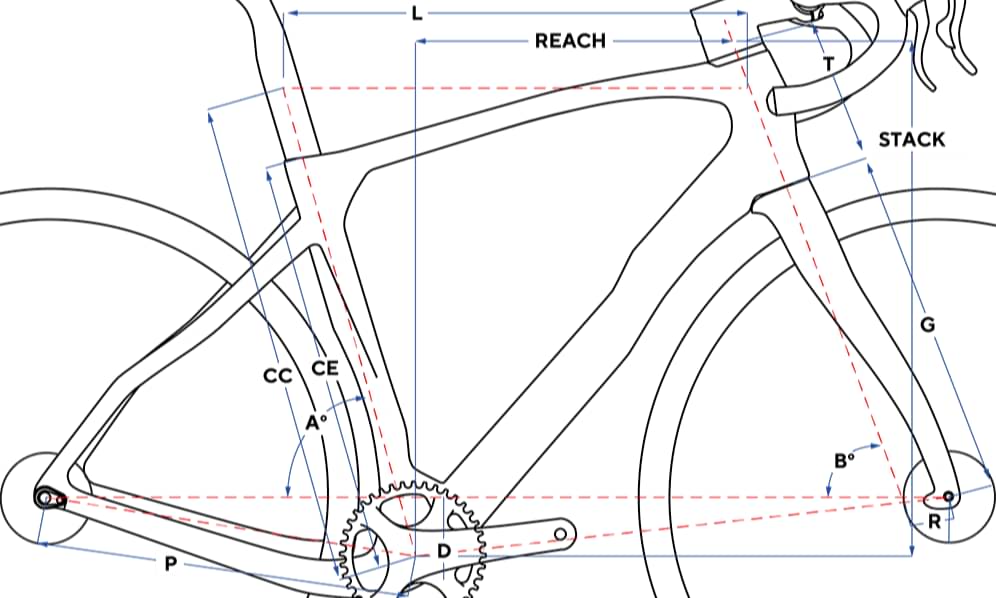

Geometry
Numbers for sizing and ride feel.
| Size | 52.2cm | 53.5cm | 55cm | 56.5cm | 58.2cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.5 mm | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Rake | 50 mm | 50 mm | 50 mm | 47 mm | 47 mm | 47 mm |
| Stack | 545.4 mm | 557.7 mm | 575.6 mm | 592.8 mm | 609 mm | 626.1 mm |
| Reach | 365 mm | 371.9 mm | 380.4 mm | 388.9 mm | 396.5 mm | 404.2 mm |
| Top Tube Length | 524 mm | 537 mm | 552 mm | 567 mm | 584 mm | 602 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 575 mm | 600 mm |
| Head Tube Angle | 69.75 ° | 70 ° | 70.25 ° | 71 ° | 71.25 ° | 71.5 ° |
| Head Tube Length | 125 mm | 137 mm | 155 mm | 169 mm | 185 mm | 202 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

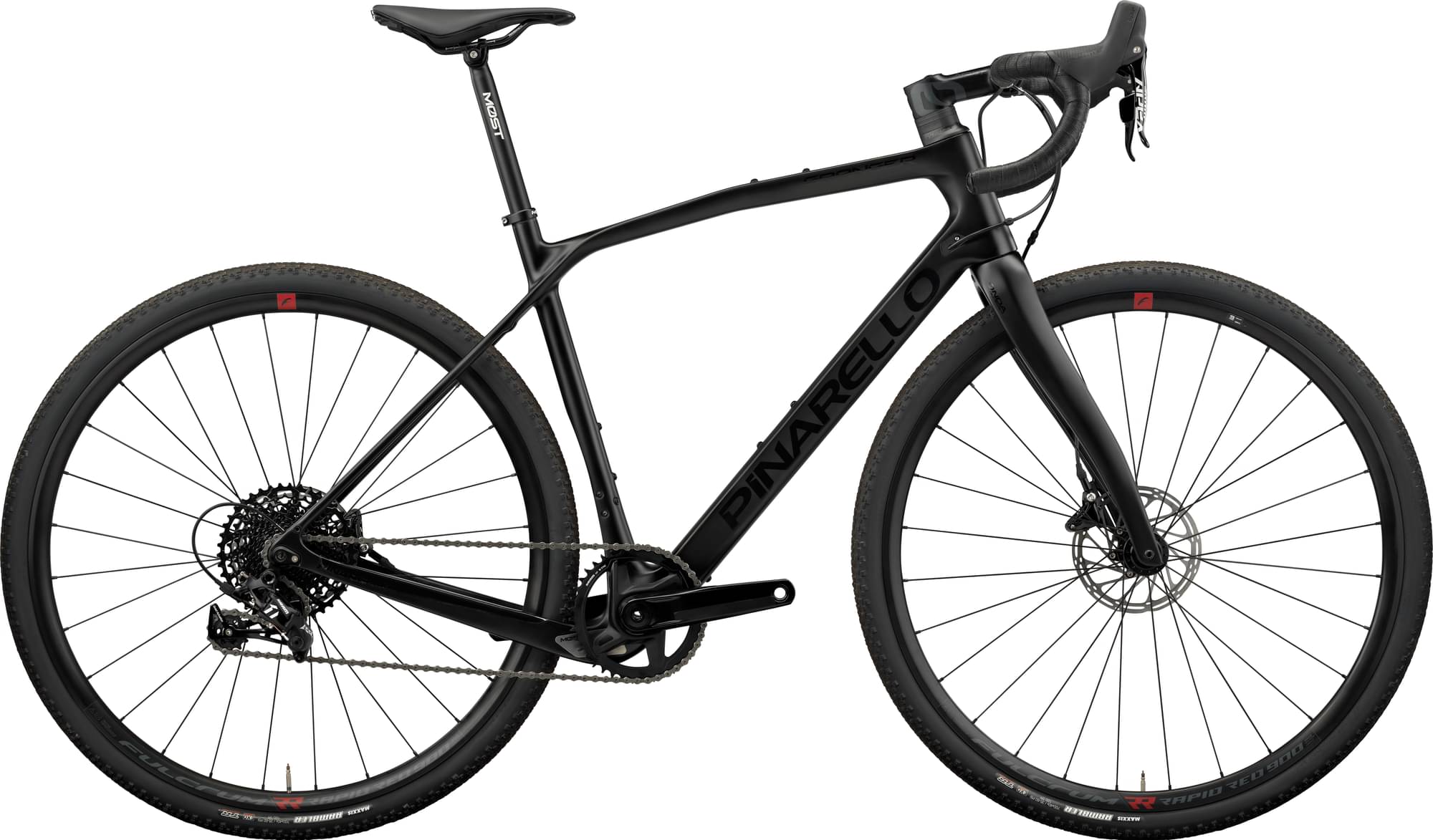

About this model
Granger X1 Disc completes the Pinarello Granger model. Pinarello released 6 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Granger X1 Disc components
Fork material
Granger X1 Disc has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Granger X1 Disc model has 700c wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
