Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T600 UD, Internal Cable Routing, Italian BB
Suspension Fork
grevil onda fork with forkflap™, tapered head tube
Drivetrain
Bottom Bracket
Italian, 70mm, threaded
Wheels
Rims
Fulcrum Rapid Red 500
Brakes
Brakes
Front: Shimano GRX, 2 pistons caliper, 160mm rotor, Rear: Shimano GRX, 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero TiCR
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
most alu round seatpost
Fit data

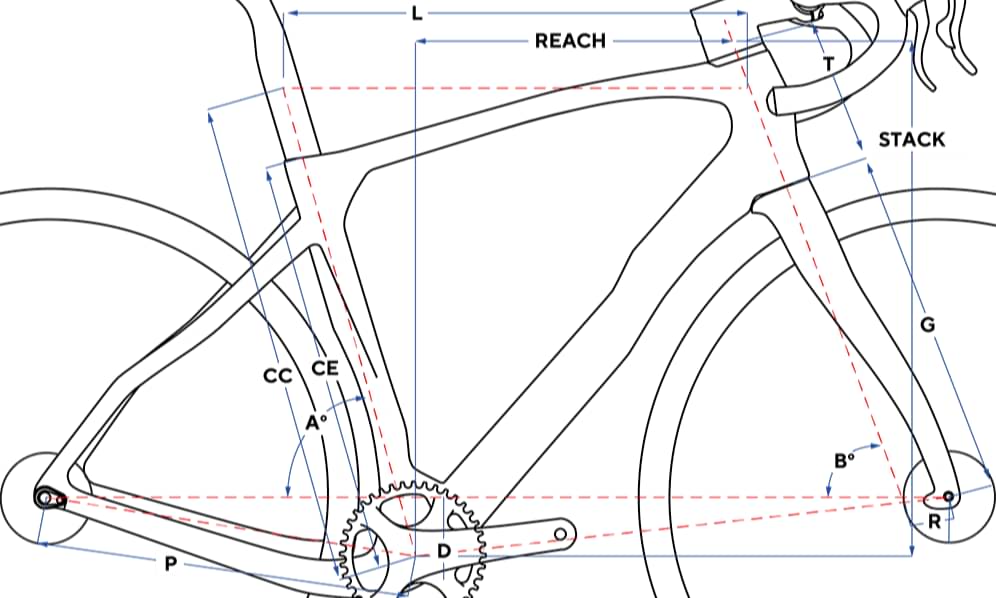

Geometry
Numbers for sizing and ride feel.
| Size | 52.2cm | 53.5cm | 55cm | 56.5cm | 58.2cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.5 mm | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Rake | 50 mm | 50 mm | 50 mm | 47 mm | 47 mm | 47 mm |
| Stack | 545.4 mm | 557.7 mm | 575.6 mm | 592.8 mm | 609 mm | 626.1 mm |
| Reach | 365 mm | 371.9 mm | 380.4 mm | 388.9 mm | 396.5 mm | 404.2 mm |
| Top Tube Length | 524 mm | 537 mm | 552 mm | 567 mm | 584 mm | 602 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 575 mm | 600 mm |
| Head Tube Angle | 69.75 ° | 70 ° | 70.25 ° | 71 ° | 71.25 ° | 71.5 ° |
| Head Tube Length | 125 mm | 137 mm | 155 mm | 169 mm | 185 mm | 202 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Granger X5 Disc completes the Pinarello Granger model. There are 6 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Pinarello Granger X5 Disc 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
