Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T700 UD, TiCR™ cable routing, Italian BB
Suspension Fork
grevil onda fork with forkflap™, tapered head tube
Drivetrain
Rear Derailleur
Campagnolo Ekar 13S
Cassette
Campagnolo Ekar 13S
Crank
Campagnolo Ekar 13s 1X
Bottom Bracket
Campagnolo Ekar 13S
Chain
Campagnolo Ekar C13 C-link 13s
Wheels
Rims
Fulcrum Rapid Red 500
Brakes
Brakes
Front: Campagnolo Ekar Ergopower 2 pistons, 160mm rotor, Rear: Campagnolo Ekar Ergopower 2 pistons, 160mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar GR Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Pinarello Aero Seatpost
Fit data

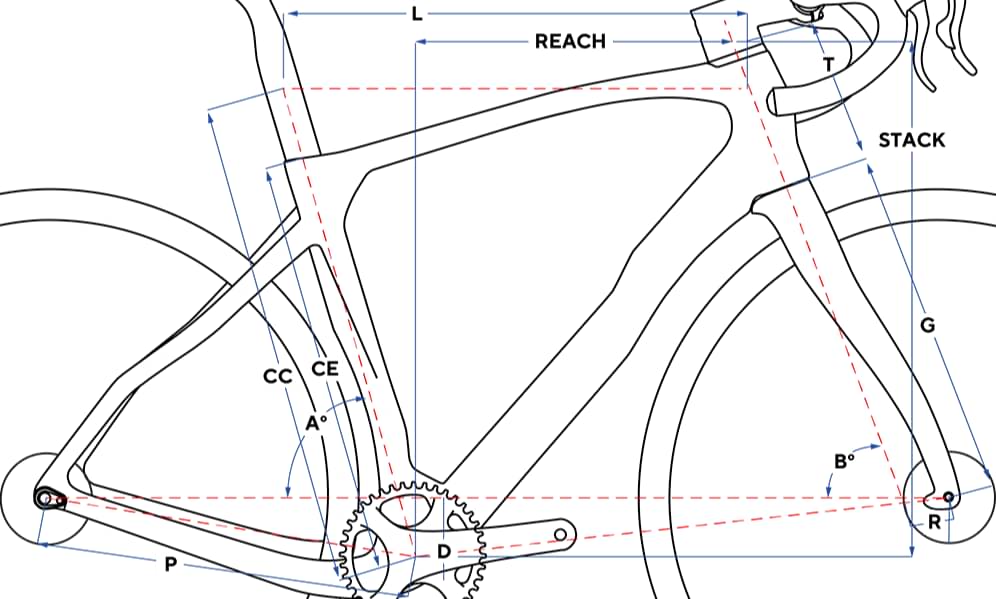

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57.5cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.54 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Rake | 55 mm | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 541.4 mm | 556.5 mm | 571.4 mm | 586.5 mm | 601.8 mm | 621.8 mm |
| Reach | 353.1 mm | 360.8 mm | 367.4 mm | 375 mm | 382.7 mm | 391.5 mm |
| Top Tube Length | 513 mm | 528 mm | 540 mm | 553 mm | 570 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 445 mm | 475 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 120 mm | 135 mm | 155 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
GREVIL F EKAR completes the Pinarello Grevil model. There are 30 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
GREVIL F EKAR has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the GREVIL F EKAR bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello GREVIL F EKAR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
