Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD Carbon, 12x142mm Thru-Axle
Suspension Fork
Grevil Onda T700 UD Carbon, 12x100mm Thru-Axle
Drivetrain
Bottom Bracket
Italian Threaded Required
Cockpit
Headset
Drop-In Bearing, 1 1/8" - 1 1/2"
Seat
Seatpost
Grevil Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.51 mm |
| Stack | 525 mm | 531 mm | 543 mm | 559 mm | 586 mm | 617 mm |
| Reach | 359 mm | 365 mm | 374 mm | 380 mm | 392 mm | 408 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 556 mm | 581 mm | 606 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 135 mm | 160 mm | 190 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 431 mm | 431 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

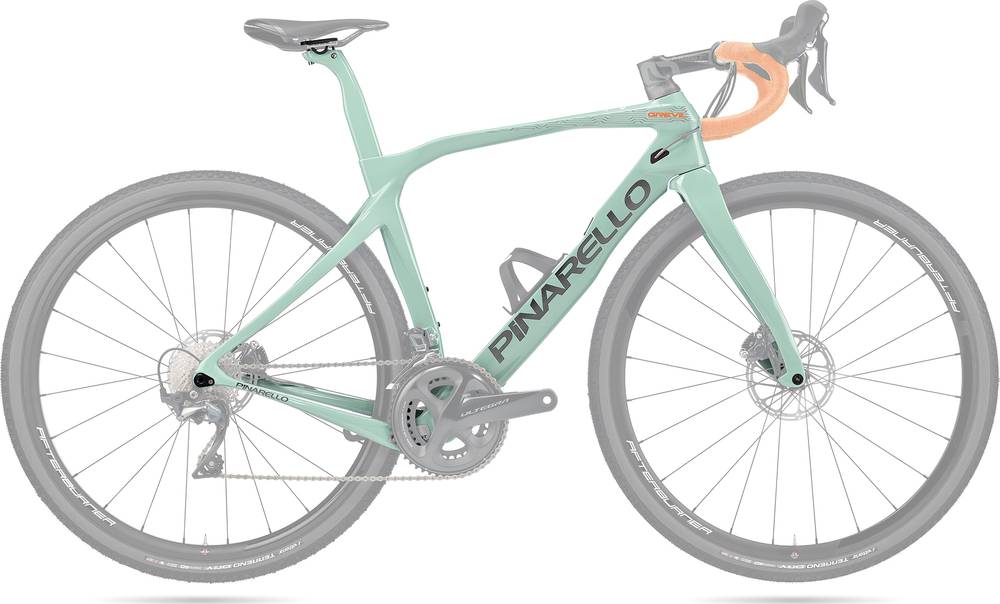

Grevil Frameset belongs to the Pinarello Grevil model. There are 30 frames that carry this model name. Take a sneak peek at all Pinarello Grevil frames models from 2019, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel frames
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2019 and its price was 3000$. Comparing this to the average Gravel frame price, we see that the price is 99.34% higher.
Grevil Frameset components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
