Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon, 12x142mm Thru-Axle
Suspension Fork
Grevil Onda T1100 1K Dream Carbon, 12x100mm Thru-Axle
Drivetrain
Bottom Bracket
Italian Threaded Required
Cockpit
Headset
Drop-In Bearing, 1 1/8" - 1 1/2"
Seat
Seatpost
Grevil Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.51 mm |
| Stack | 525 mm | 531 mm | 543 mm | 559 mm | 586 mm | 617 mm |
| Reach | 359 mm | 365 mm | 374 mm | 380 mm | 392 mm | 408 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 556 mm | 581 mm | 606 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 135 mm | 160 mm | 190 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 431 mm | 431 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

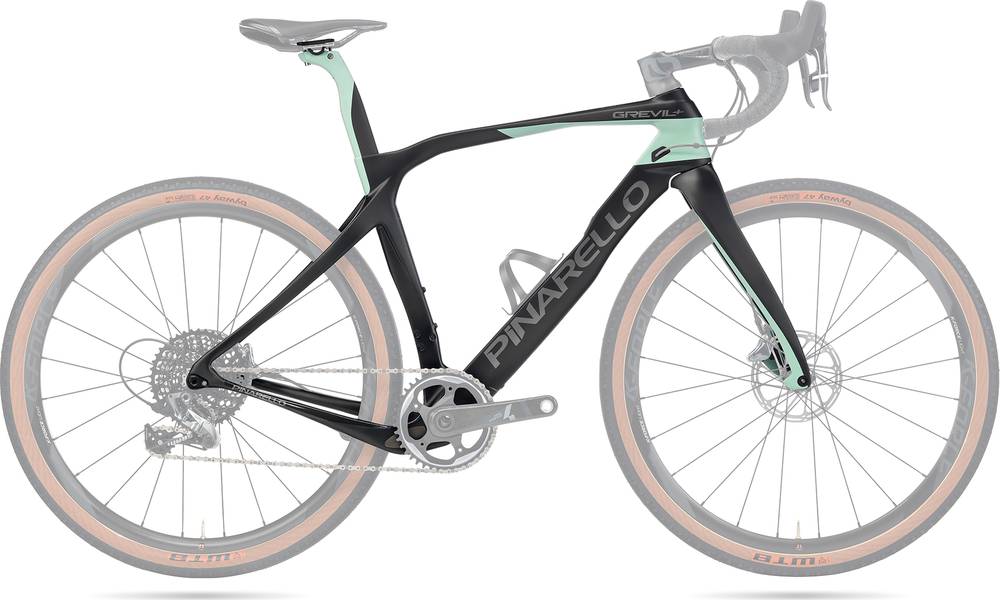

Grevil+ Frameset completes the Pinarello Grevilplus model. 8 frames variations carry this model name so far. Take a sneak peek at all Pinarello Grevilplus frames models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel frames
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Pinarello Grevil+ Frameset price was 5000$. Comparing this to the average Gravel frame price, we see that the price is 232.23% more expensive.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
