Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon, 12x142mm Thru-Axle
Suspension Fork
Grevil Onda T1100 1K Dream Carbon, 12x100mm Thru-Axle
Drivetrain
Bottom Bracket
Italian Threaded Required
Cockpit
Headset
Drop-In Bearing, 1 1/8" - 1 1/2"
Seat
Seatpost
Grevil Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.51 mm |
| Stack | 525 mm | 531 mm | 543 mm | 559 mm | 586 mm | 617 mm |
| Reach | 359 mm | 365 mm | 374 mm | 380 mm | 392 mm | 408 mm |
| Top Tube Length | 516 mm | 526 mm | 541 mm | 556 mm | 581 mm | 606 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 135 mm | 160 mm | 190 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 431 mm | 431 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

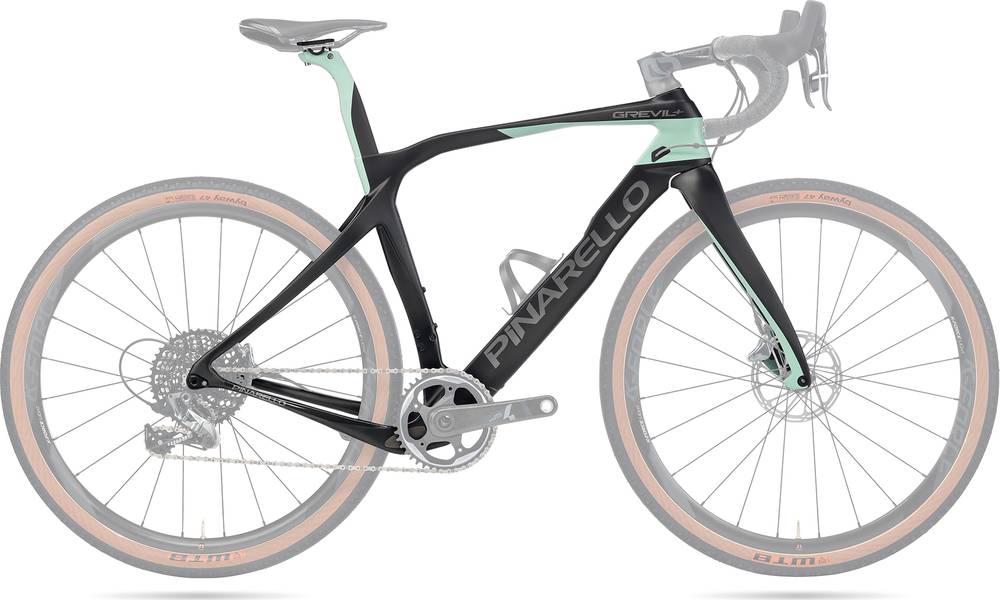

Grevil+ Frameset is a Pinarello Grevilplus model. There are 8 frames that carry this model name. Take a sneak peek at all Pinarello Grevilplus frames models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel frames
If you want an acceptable Gravel frame you should know that the average price is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 5000$. In conclusion, this frame price is 232.23% more expensive than the price of the average Gravel frame.
Grevil+ Frameset components
Fork material
Grevil+ Frameset has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
