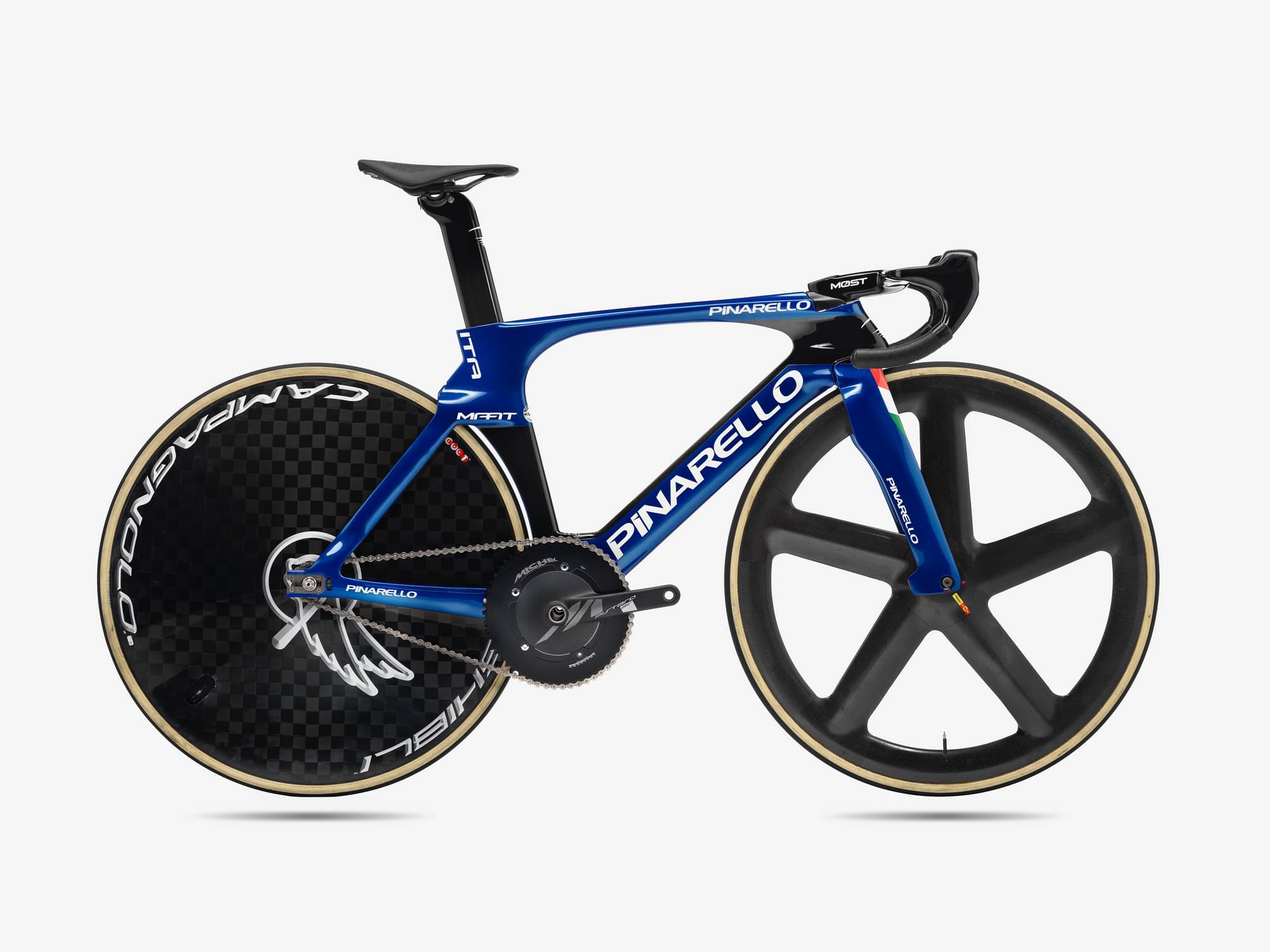

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Miche -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, Italian BB, UCI Approved
Suspension Fork
maat onda fork. tapered head tube
Drivetrain
Cassette
singlespeed freehub
Crank
miche
Bottom Bracket
custom italian
Chain
singlespeed chain
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

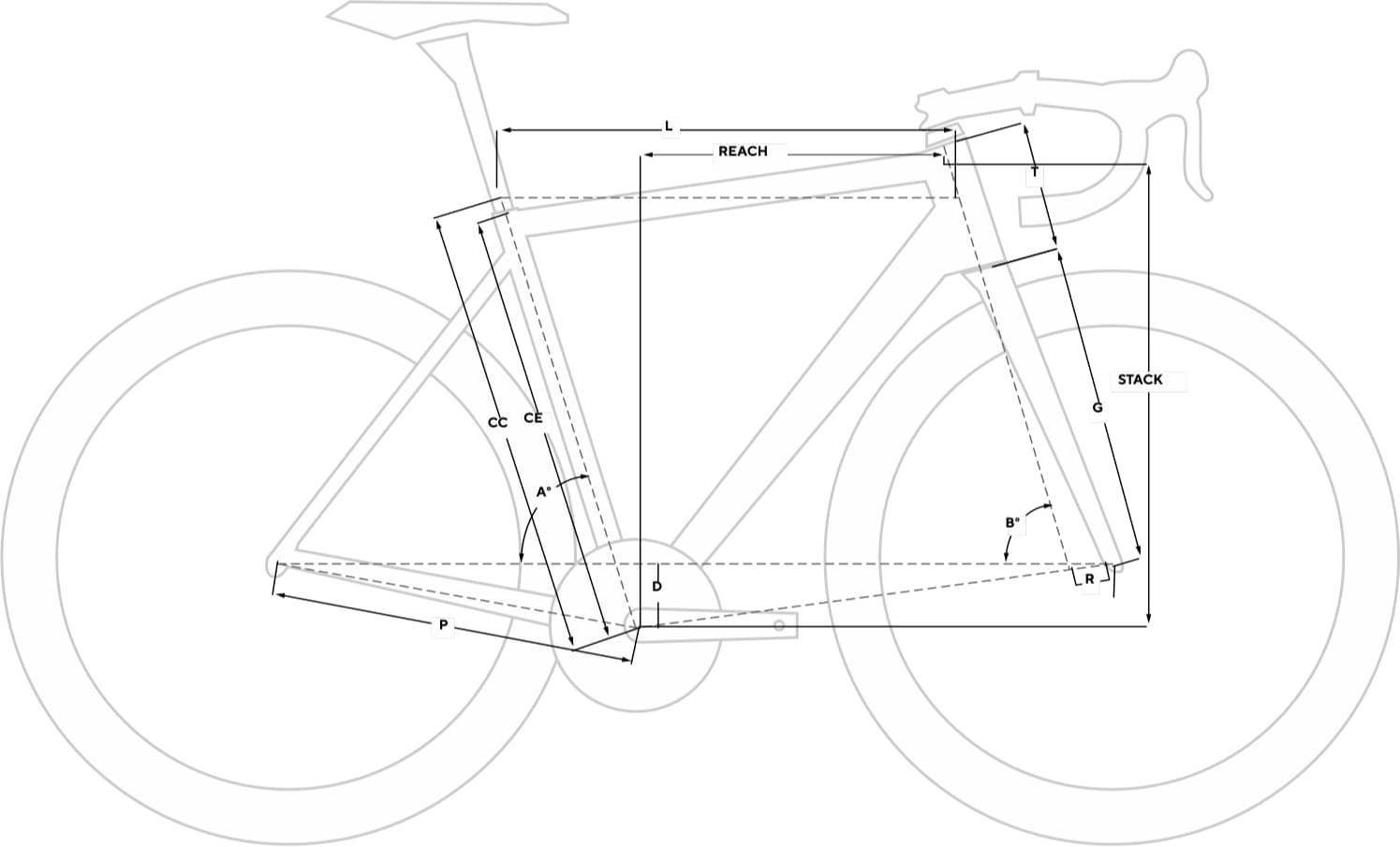

Geometry
Numbers for sizing and ride feel.
| Size | 42.5cm | 45cm | 47cm | 48.5cm | 50cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.1 mm | 1.1 mm | 1.12 mm | 1.11 mm | 1.13 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Stack | 475 mm | 490 mm | 505 mm | 519 mm | 534 mm |
| Reach | 432 mm | 444 mm | 452 mm | 468 mm | 474 mm |
| Top Tube Length | 552 mm | 567 mm | 587 mm | 607 mm | 617 mm |
| Seat Tube Angle | 76 ° | 76 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 455 mm | 480 mm | 500 mm | 515 mm | 530 mm |
| Head Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Length | 80 mm | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 382 mm | 382 mm | 382 mm | 382 mm | 382 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Maat Italia is part of the Pinarello Maat model. 11 bikes variations carry this model name so far. Take a sneak peek at all Pinarello Maat bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Track bikes
Our math shows that the average cost of a dependable Track bike is 1503$. However, you could also get a good Track bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Maat Italia bike is equipped with the 700c model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
