Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.4 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 579 mm | 579 mm | 595 mm | 602 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 73 mm | 61 mm | 62 mm | 54 mm |
| Stack | 520 mm | 532 mm | 546 mm | 568 mm |
| Reach | 365 mm | 379 mm | 391 mm | 400 mm |
| Top Tube Length | 518 mm | 538 mm | 553 mm | 568 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 72 ° | 72 ° | 73 ° |
| Head Tube Length | 125 mm | 130 mm | 145 mm | 165 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 986 mm | 986 mm | 1002 mm | 1009 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

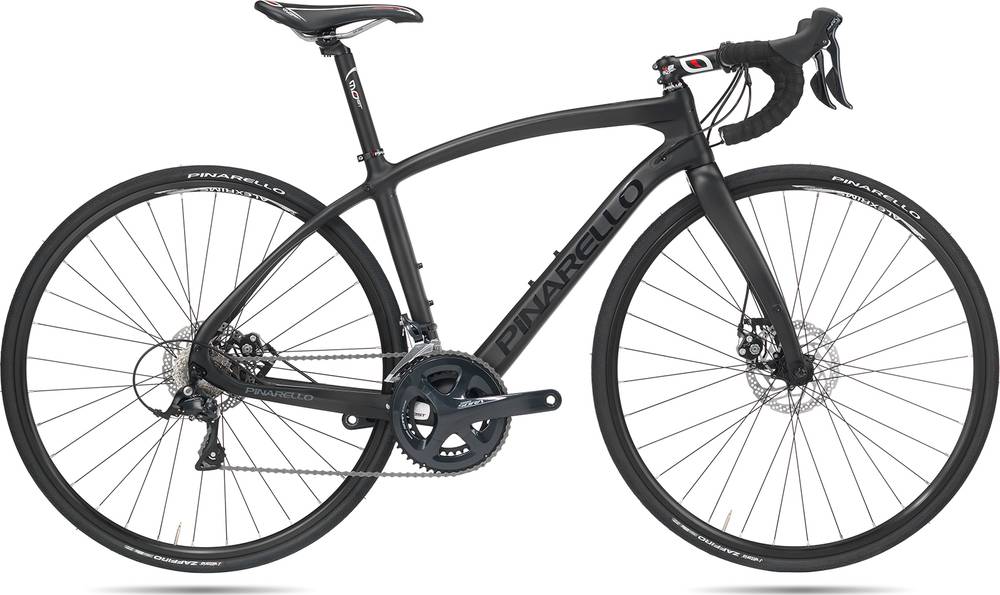

MERCURIO DISK belongs to the Pinarello Mercurio model. Pinarello released 9 frames variations of this model so far. Take a sneak peek at all Pinarello Mercurio frames models from 2019, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance frames
Our math shows that the average cost of a dependable Endurance frame is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
