Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Motor TQ hub-drive -
Battery 360 Wh Integrated Battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T700 UD, TiCR™ Cable Routing
Suspension Fork
nytro onda carbon fork with forkflap™, tapered head tube
Drivetrain
Rear Derailleur
SRAM Rival 12S
Cassette
SRAM Rival 12S
Crank
SRAM Rival ETAP AXS 12S
Chain
SRAM Rival 12S
Wheels
Tires
maxxis rambler 700x40c
Brakes
Brakes
Front: SRAM Rival 2 pistons, 160mm rotor, Rear: SRAM Rival 2 pistons, 160mm rotor
Cockpit
Stem
MOST Tiger Aero Alu TiCR
Handlebar
MOST Jaguar GR TiCR Alu
Motor & Battery
Motor
TQ-HPR50 Drive Unit
Battery
360 Wh Integrated Battery
Fit data

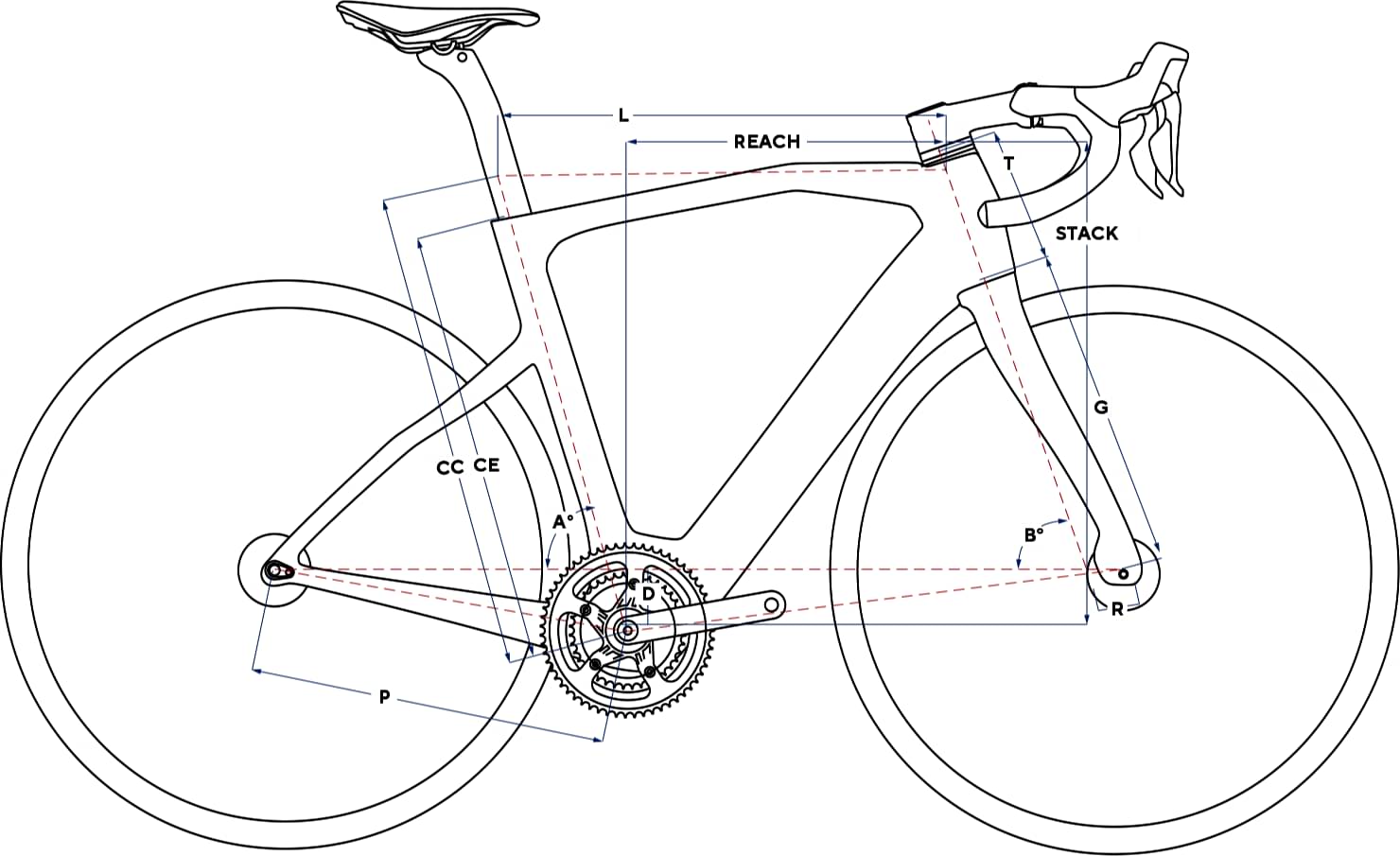

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 53cm | 55cm | 57.5cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.56 mm | 1.57 mm | 1.58 mm | 1.59 mm | 1.61 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 275 mm | 275 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 564.9 mm | 577.2 mm | 595.1 mm | 612.3 mm | 628.3 mm | 648.3 mm |
| Reach | 363.4 mm | 370.2 mm | 378.9 mm | 386.6 mm | 394.3 mm | 401.9 mm |
| Top Tube Length | 529 mm | 541 mm | 556 mm | 570 mm | 587 mm | 603 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 440 mm | 480 mm | 510 mm | 530 mm | 565 mm | 590 mm |
| Head Tube Angle | 69.75 ° | 70 ° | 70.25 ° | 71 ° | 71.25 ° | 71.5 ° |
| Head Tube Length | 125 mm | 137 mm | 155 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 74 mm | 74 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
NYTRO E5 GRAVEL – SRAM RIVAL AXS belongs to the Pinarello E Nytro model. Pinarello launched 26 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the NYTRO E5 GRAVEL – SRAM RIVAL AXS e-bike is equipped with the 700c model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NYTRO E5 GRAVEL – SRAM RIVAL AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
