Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Motor TQ hub-drive -
Battery 360 Wh Integrated Battery -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T700 UD, TiCR™ Cable Routing
Suspension Fork
nytro onda carbon fork with forkflap™, tapered head tube
Drivetrain
Rear Derailleur
Shimano 105 Di2 12S
Cassette
Shimano 105 Di2 12S
Crank
Shimano 105 Di2 12S
Wheels
Rims
Fulcrum Racing 500
Brakes
Brakes
Front: Shimano 105 2 pistons caliper, 160mm rotor, Rear: Shimano 105 2 pistons caliper, 160mm rotor
Cockpit
Stem
MOST Tiger Aero Alu TiCR
Handlebar
MOST Jaguar XA TiCR
Motor & Battery
Motor
TQ-HPR50 Drive Unit
Battery
360 Wh Integrated Battery
Fit data

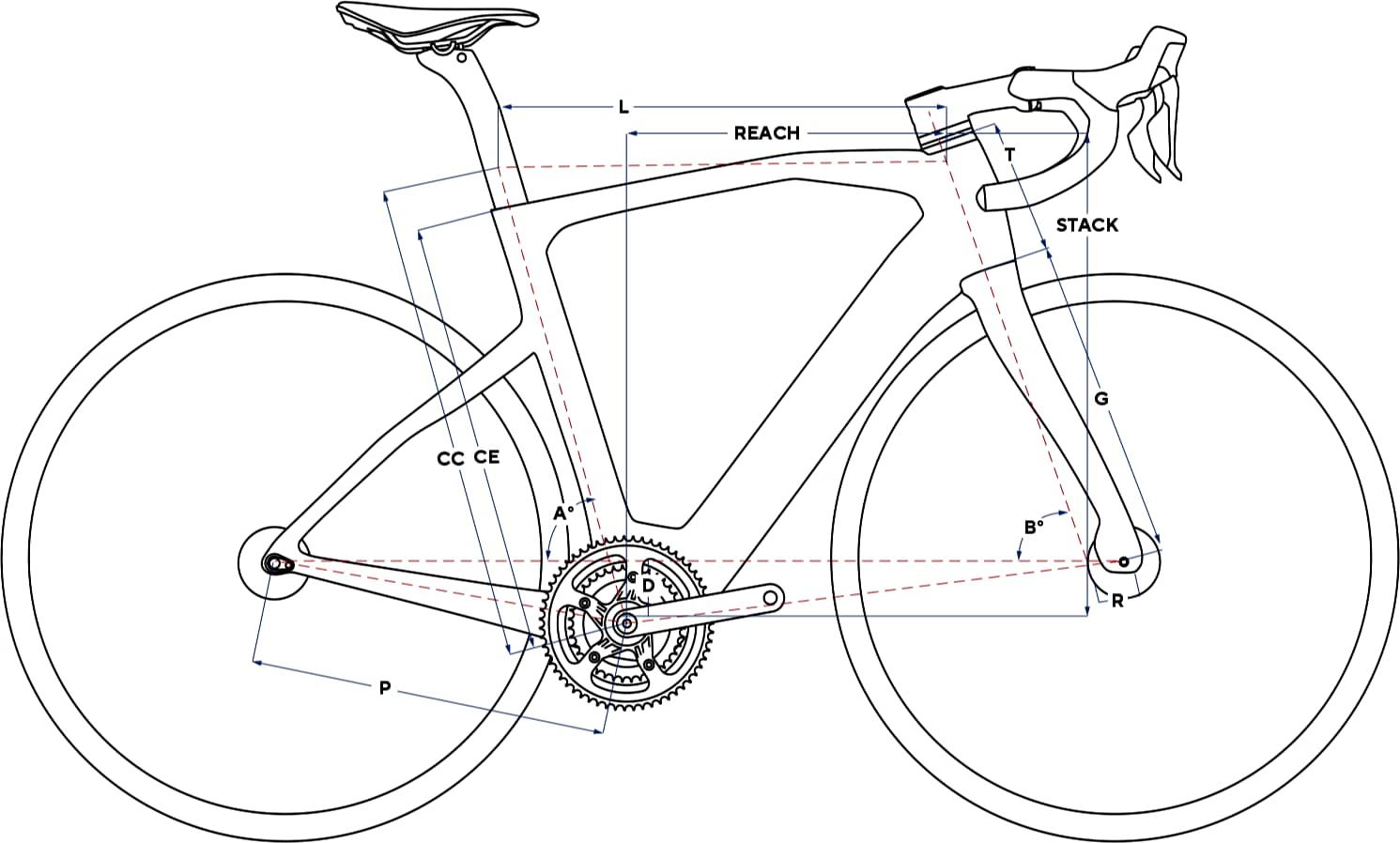

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 53cm | 55cm | 57.5cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 544.4 mm | 554.8 mm | 566.2 mm | 585.2 mm | 614.8 mm | 639.6 mm |
| Reach | 357.4 mm | 368.7 mm | 376.5 mm | 383.2 mm | 390.4 mm | 397 mm |
| Top Tube Length | 514 mm | 531 mm | 544 mm | 559 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.4 ° | 73 ° | 72.9 ° |
| Seat Tube Length | 450 mm | 488 mm | 510 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 71.75 ° | 72 ° | 72.25 ° | 72.5 ° | 72.75 ° | 73 ° |
| Head Tube Length | 130 mm | 140 mm | 151 mm | 170 mm | 200 mm | 225 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
NYTRO E5 ROAD – 105 Di2 is a Pinarello E Nytro model. There are 26 e-bikes that carry this model name. Take a sneak peek at all Pinarello E Nytro e-bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race e-bikes
Our math shows that the average cost of a dependable Race e-bike is 4156$. However, you could also get a good Race e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
NYTRO E5 ROAD – 105 Di2 components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the NYTRO E5 ROAD – 105 Di2 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello NYTRO E5 ROAD – 105 Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
