Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Motor TQ hub-drive -
Battery 360 Wh Integrated Battery -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T900 UD, TiCR™ Cable Routing
Suspension Fork
nytro onda carbon fork with forkflap™, tapered head tube
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 FD-R9200 12s
Cassette
Shimano Dura Ace Di2 FD-R9200 12s
Crank
Shimano Dura Ace Di2 FD-R9200 12s
Wheels
Rims
PRINCETON GRIT 4540 DB
Brakes
Brakes
Front: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor, Rear: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
MOST Talon Ultra Light
Motor & Battery
Motor
TQ-HPR50 Drive Unit
Battery
360 Wh Integrated Battery
Fit data

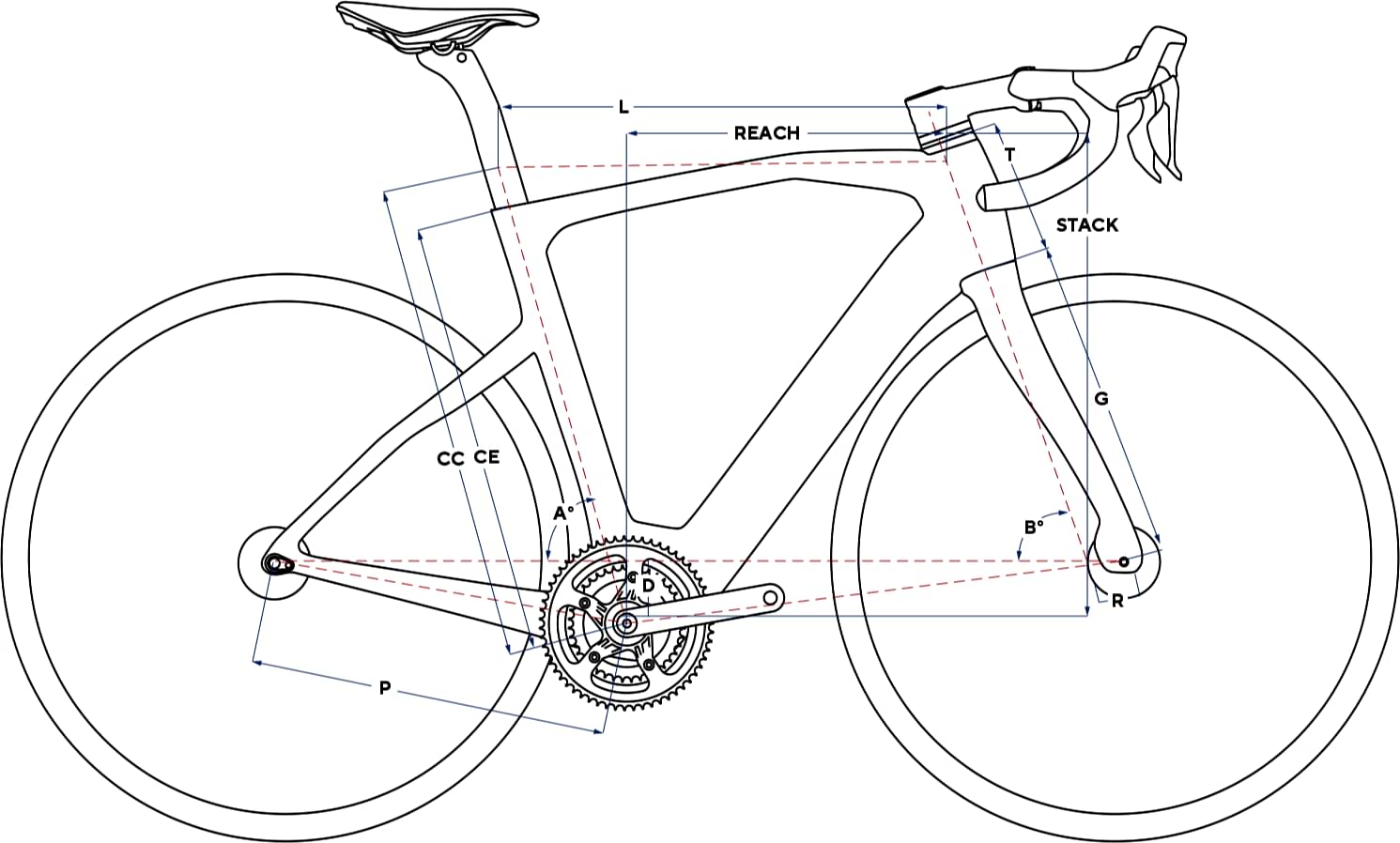

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 53cm | 55cm | 57.5cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 544.4 mm | 554.8 mm | 566.2 mm | 585.2 mm | 614.8 mm | 639.6 mm |
| Reach | 357.4 mm | 368.7 mm | 376.5 mm | 383.2 mm | 390.4 mm | 397 mm |
| Top Tube Length | 514 mm | 531 mm | 544 mm | 559 mm | 579 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.4 ° | 73 ° | 72.9 ° |
| Seat Tube Length | 450 mm | 488 mm | 510 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 71.75 ° | 72 ° | 72.25 ° | 72.5 ° | 72.75 ° | 73 ° |
| Head Tube Length | 130 mm | 140 mm | 151 mm | 170 mm | 200 mm | 225 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

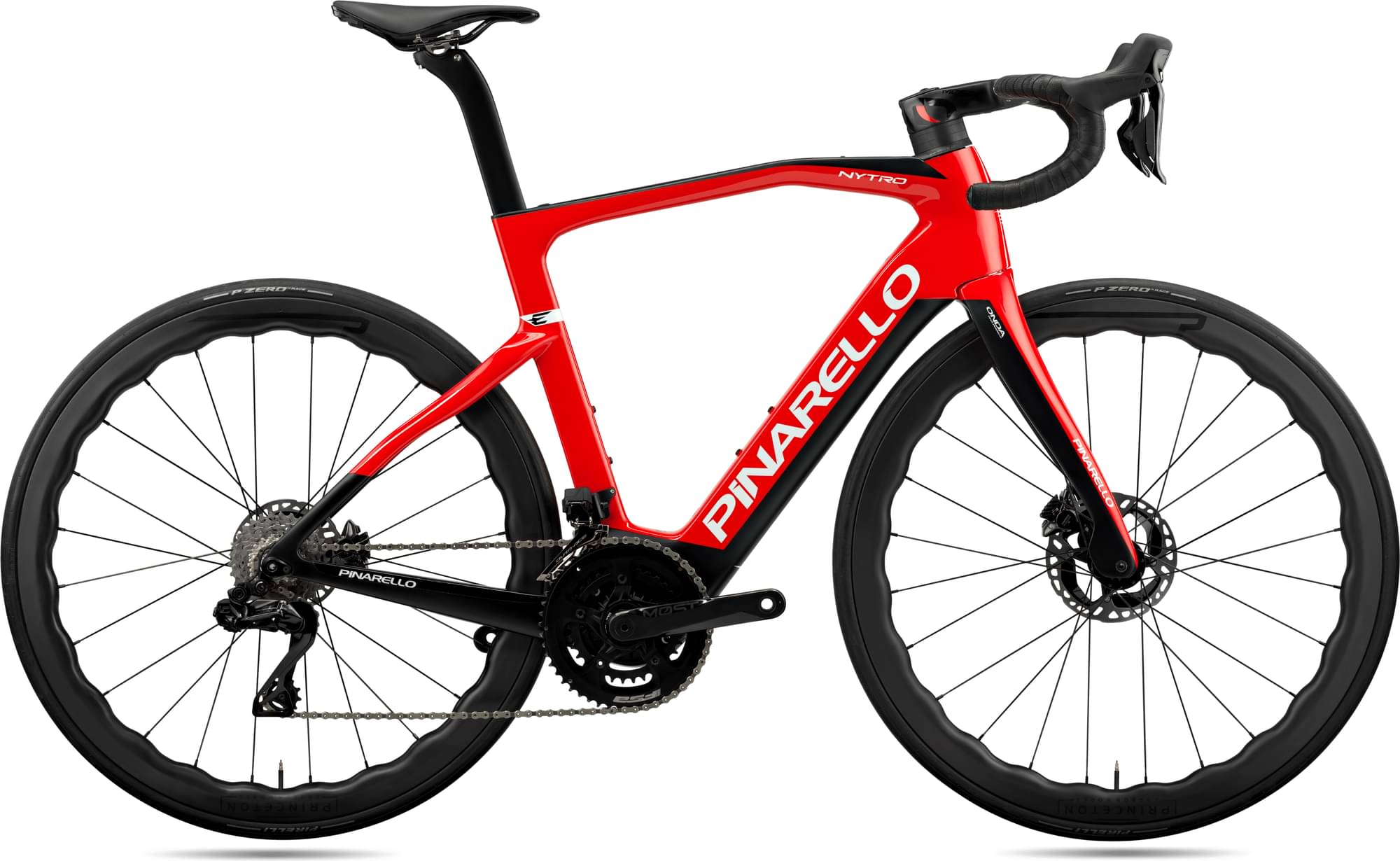

NYTRO E9 ROAD – DURA ACE Di2 belongs to the Pinarello E Nytro model. There are 26 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race e-bikes average price
Our math shows that the average cost of a dependable Race e-bike is 4156$. However, even if your budget is less than the average, you might still be able to get a top-quality Race e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the NYTRO E9 ROAD – DURA ACE Di2 model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello NYTRO E9 ROAD – DURA ACE Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
