Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
torayca t700 ud, with integrated battery and cable routing, 12x142 tru-axle
Suspension Fork
Nytro Gravel Onda Carbon Fork with ForkFlap™, Tapered head tube
Drivetrain
Rear Derailleur
SRAM force etap axs
Front Derailleur
SRAM force etap axs
Cassette
SRAM force xg-1270, 12s
Crank
most custom chainrings
Bottom Bracket
Fazua Bottom Bracked
Chain
SRAM force 12s
Wheels
Rims
Fulcrum Racing 500
Tires
maxxis rambler 700x40c
Brakes
Brakes
Front: SRAM Force 2 pistons caliper, 160mm rotor, Rear: SRAM Force 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Pinarello Aero Seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Fit data

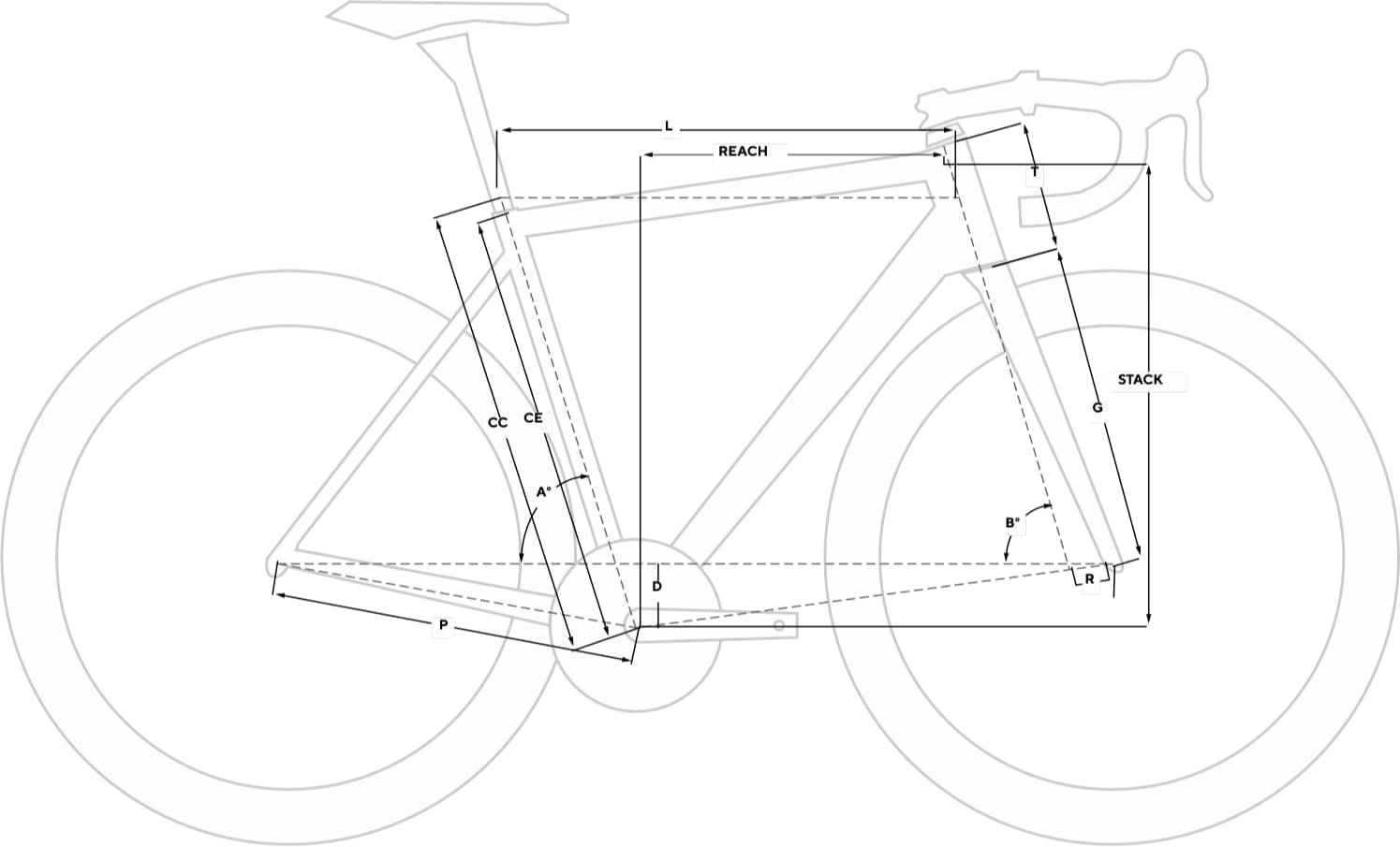

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.51 mm | 1.5 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 543 mm | 545 mm | 556 mm | 582 mm | 607.5 mm |
| Reach | 361 mm | 362 mm | 370 mm | 377.5 mm | 384 mm |
| Top Tube Length | 530 mm | 534 mm | 549 mm | 569 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 135 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Nytro Gravel Force is part of the Pinarello E Nytro model. There are 26 e-bikes that carry this model name. Take a sneak peek at all Pinarello E Nytro e-bikes models from 2023, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Pinarello Nytro Gravel Force 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nytro Gravel Force has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
