Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
torayca t700 ud, with integrated battery and cable routing, 12x142 tru-axle
Suspension Fork
Nytro Gravel Onda Carbon Fork with ForkFlap™, Tapered head tube
Drivetrain
Rear Derailleur
SRAM force etap axs
Bottom Bracket
Fazua Bottom Bracked
Chain
SRAM Rival 12S
Wheels
Rims
Fulcrum Rapid Red 500
Tires
maxxis rambler 700x40c
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Bar Tape MOST Ultragrip evo 3mm - Black
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Pinarello Aero Seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Fit data

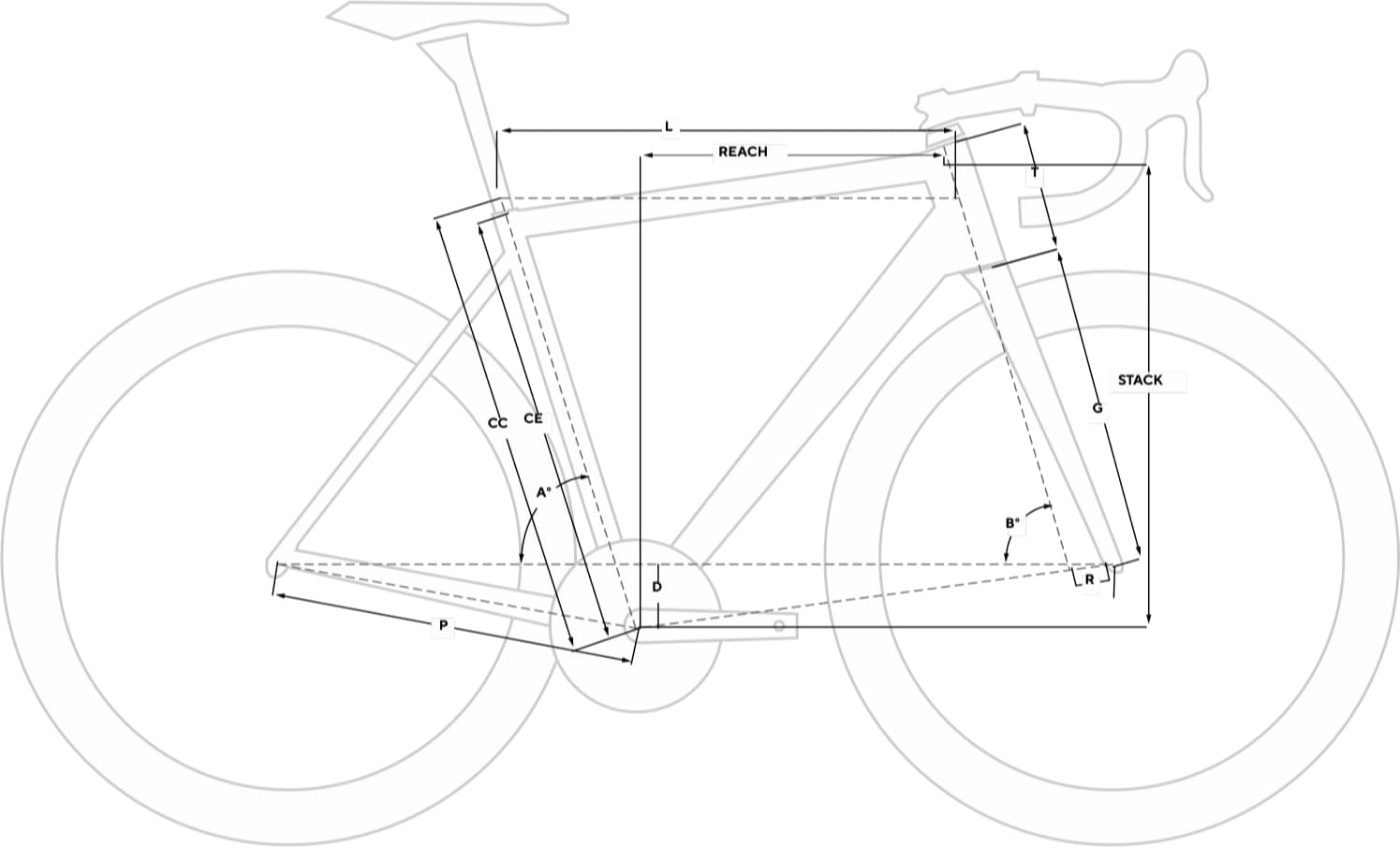

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.51 mm | 1.5 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 543 mm | 545 mm | 556 mm | 582 mm | 607.5 mm |
| Reach | 361 mm | 362 mm | 370 mm | 377.5 mm | 384 mm |
| Top Tube Length | 530 mm | 534 mm | 549 mm | 569 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 135 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

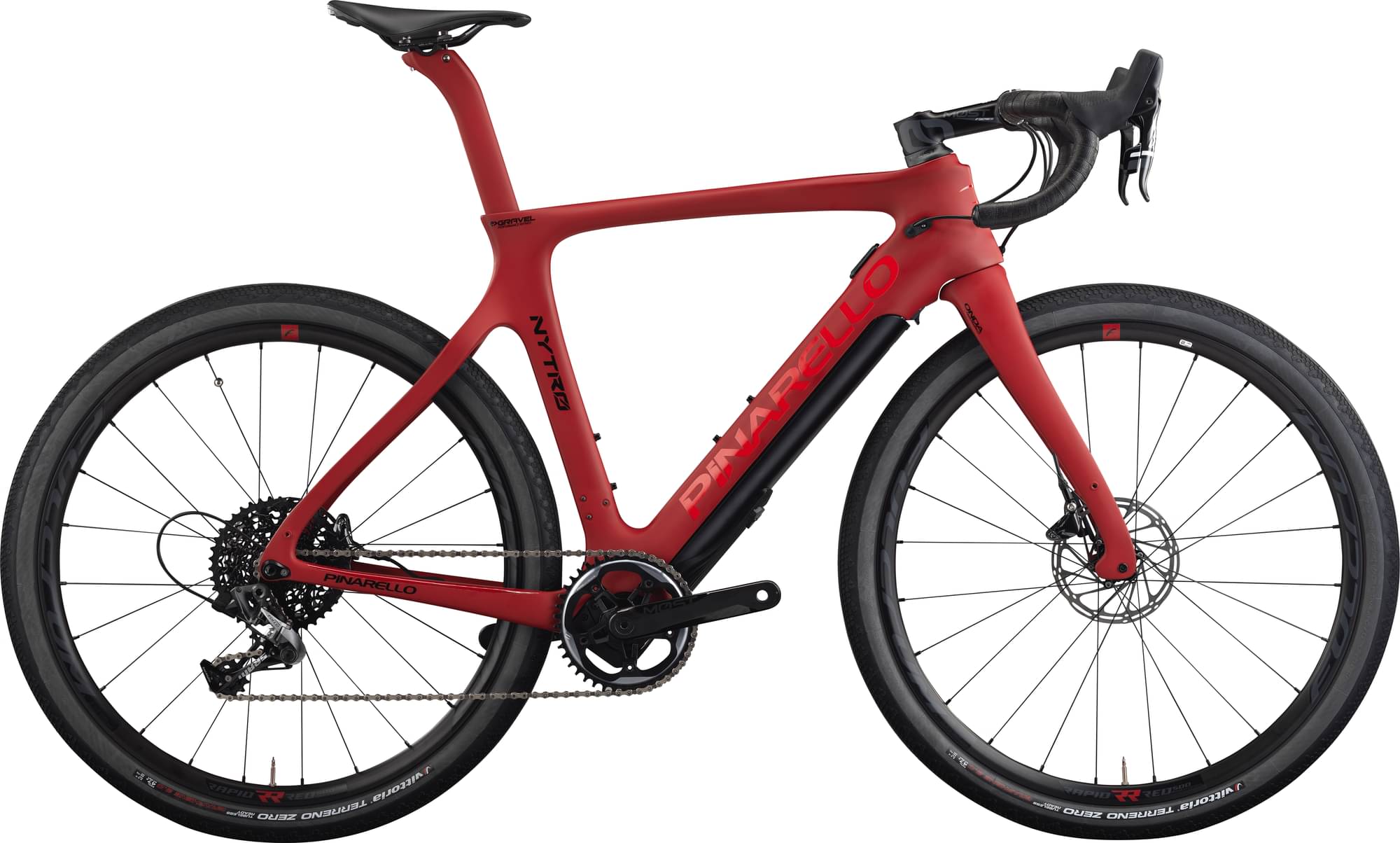

About this model
Nytro Gravel Rival AXS is a Pinarello E Nytro model. Pinarello released 26 e-bikes variations of this model so far. Take a sneak peek at all Pinarello E Nytro e-bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Nytro Gravel Rival AXS components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Nytro Gravel Rival AXS e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nytro Gravel Rival AXS has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
