Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Suspension Fork
nytro carbon fork, tapered head tube
Drivetrain
Rear Derailleur
SRAM apex 1 sgs 11s 1x
Cassette
SRAM apex
Crank
most custom chainrings
Bottom Bracket
Fazua Bottom Bracked
Chain
SRAM pc 1110
Wheels
Rims
Shimano RS
Tires
maxxis rambler 700x40c
Brakes
Brakes
Front: SRAM apex 2 pistons caliper, 160mm rotor, Rear: SRAM apex 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
most alu round seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Fit data

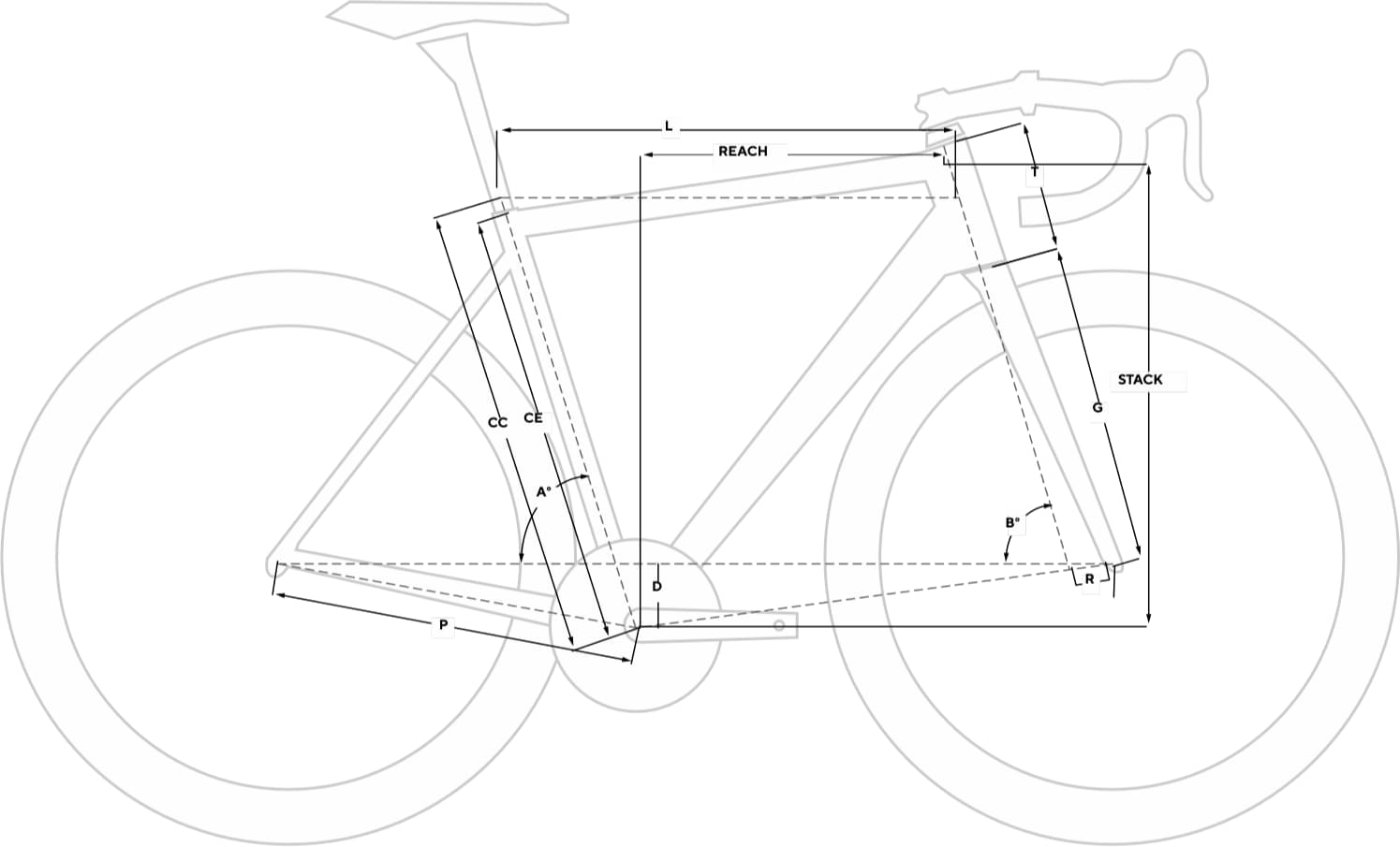

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 50cm | 55cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 569 mm | 591 mm | 614 mm | 636 mm |
| Reach | 375 mm | 387 mm | 398 mm | 408 mm |
| Top Tube Length | 546 mm | 561 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 138 mm | 159 mm | 181 mm | 202 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |

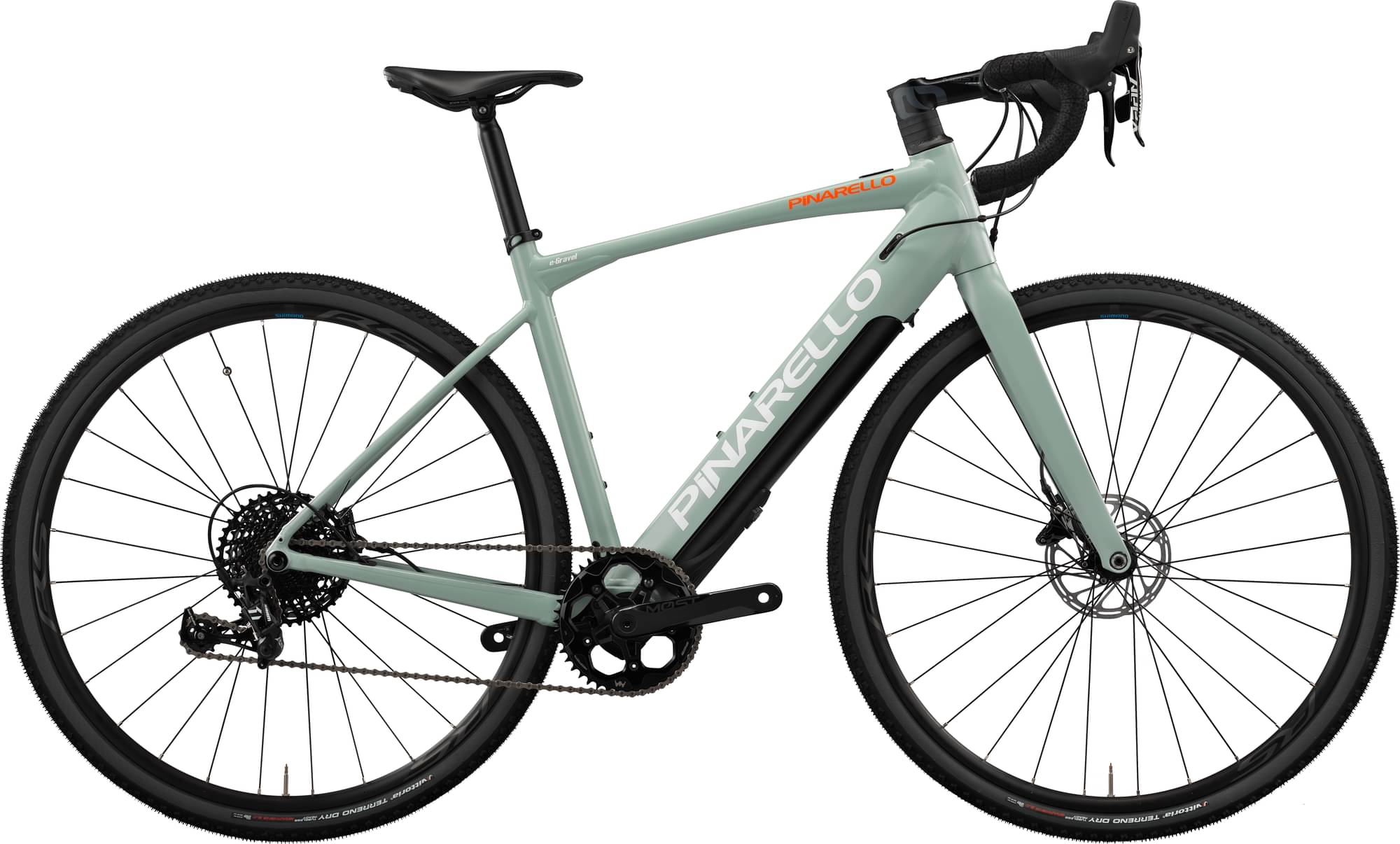

Model Overview
Nytro Grinta Apex is a Pinarello E Nytro model. Pinarello released 26 e-bikes variations of this model so far. You can easily view all of the Pinarello E Nytro e-bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel e-bikes average price
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Nytro Grinta Apex components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Nytro Grinta Apex 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
