Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
torayca t700 ud, with integrated battery and cable routing, 12x142 tru-axle
Suspension Fork
Nytro Road Onda Carbon Fork with ForkFlap™, tapered head tube
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 11s
Front Derailleur
Shimano Ultegra R8000 11s
Cassette
Shimano Ultegra Di2 R8050 11s
Crank
most custom chainrings
Bottom Bracket
Fazua Bottom Bracked
Chain
Shimano Ultegra R8000 11s
Wheels
Rims
Fulcrum Racing 500
Tires
Pirelli P7 - Black, 60tpi Nylon breaker, max tyre size 28mm (width as measured)
Brakes
Brakes
Front: shimano ultegra r8000, 2 pistons caliper, 160mm rotor, Rear: shimano ultegra r8000, 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Pinarello Aero Seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Fit data

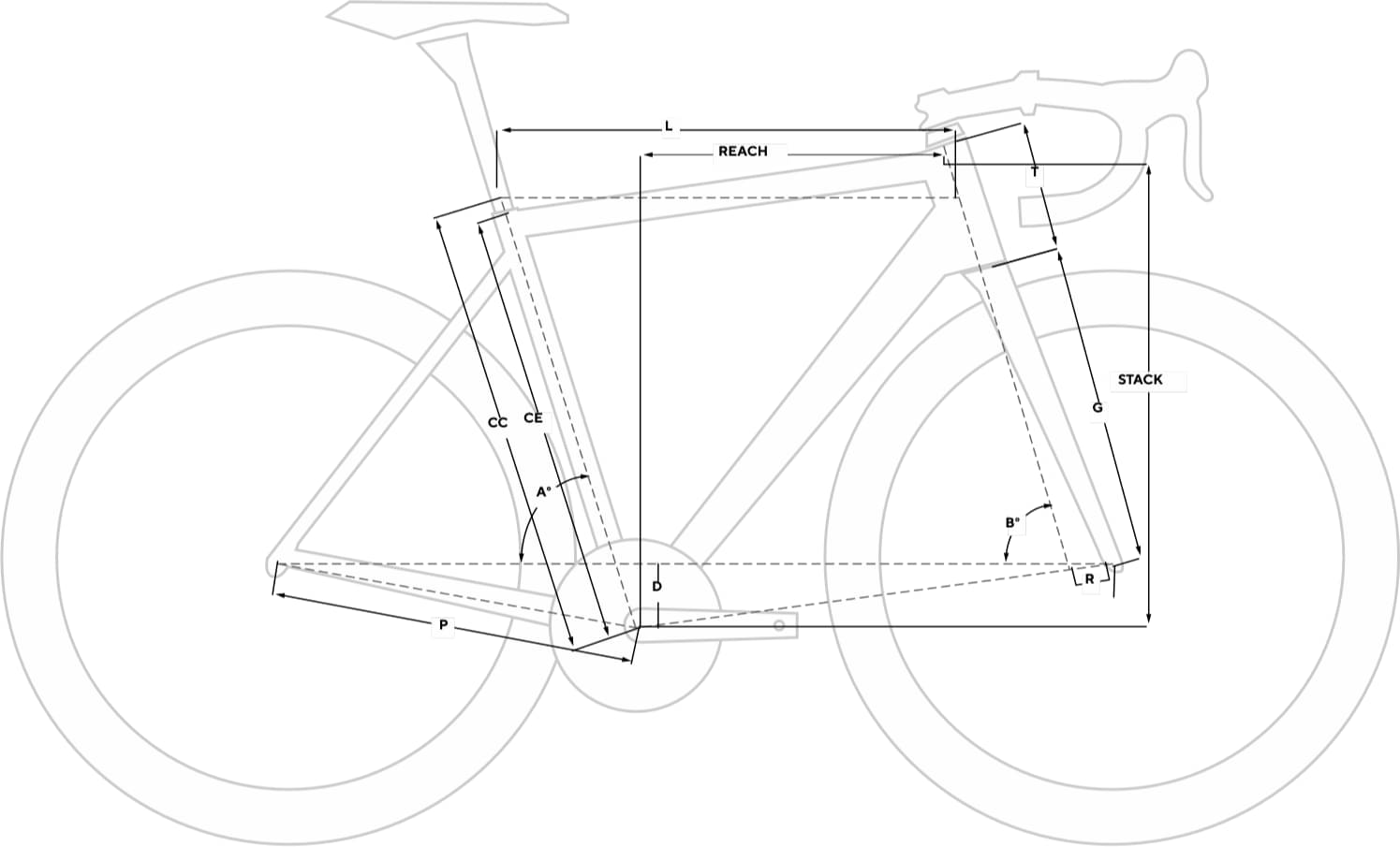

Geometry
Numbers for sizing and ride feel.
| Size | 46.5cm | 50cm | 53cm | 55cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.55 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 528 mm | 528 mm | 550 mm | 569 mm | 612 mm |
| Reach | 367 mm | 367 mm | 379 mm | 386 mm | 394 mm |
| Top Tube Length | 522 mm | 522 mm | 542 mm | 557 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.7 ° | 73.4 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 488 mm | 518 mm | 538 mm | 568 mm |
| Head Tube Angle | 71.4 ° | 71.4 ° | 72.5 ° | 72.8 ° | 73.5 ° |
| Head Tube Length | 130 mm | 130 mm | 149 mm | 168 mm | 215 mm |
| Chainstay Length | 579 mm | 579 mm | 588 mm | 597 mm | 612 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

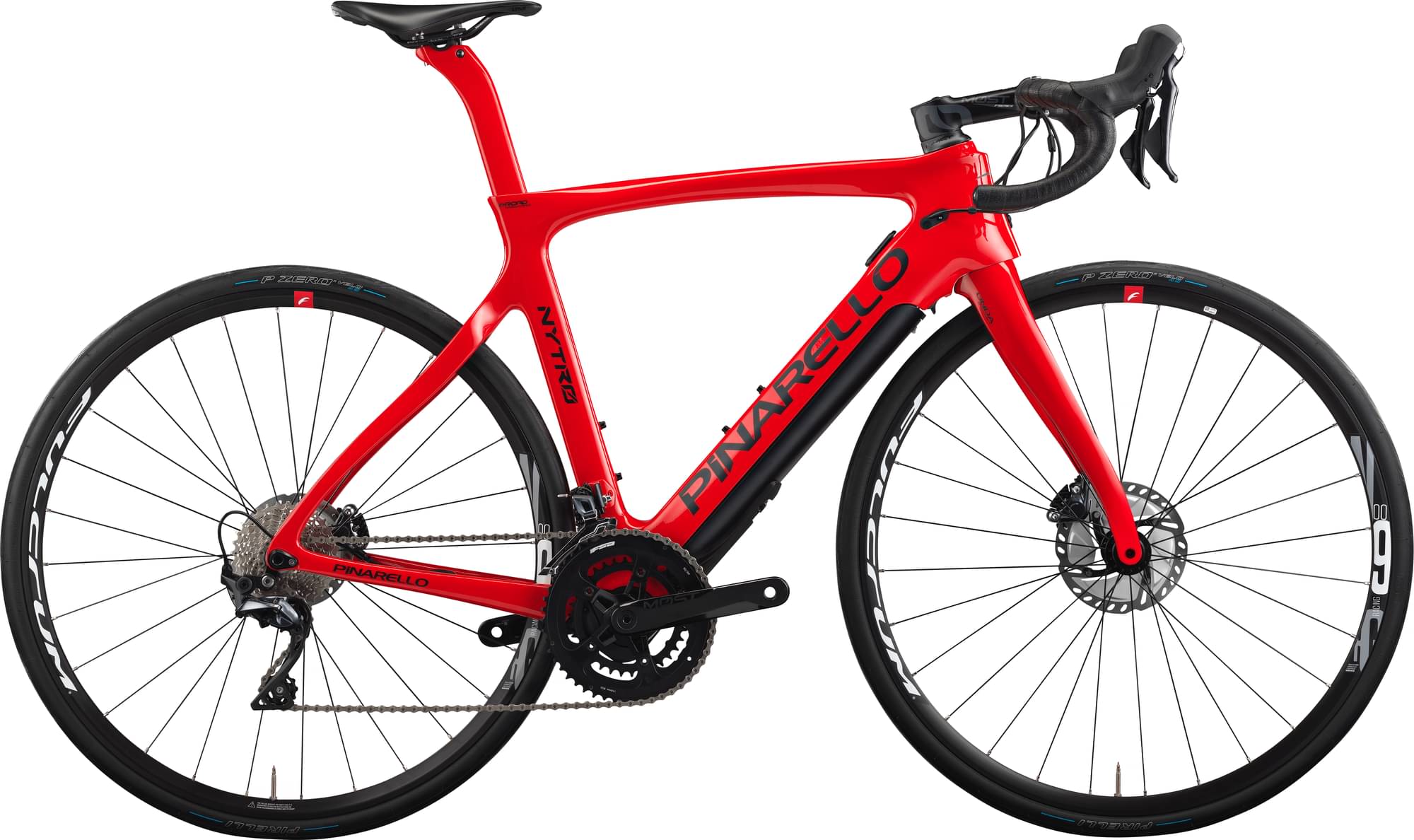

About this model
Nytro Road Ultegra belongs to the Pinarello E Nytro model. 26 e-bikes variations carry this model name so far. Take a sneak peek at all Pinarello E Nytro e-bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race e-bikes average price
According to our math, the average price for a trustworthy Race e-bike is 4156$. However, this doesn’t mean that if you spend less money on a Race e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Pinarello Nytro Road Ultegra 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nytro Road Ultegra has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
