Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Suspension Fork
nytro carbon fork, tapered head tube
Drivetrain
Rear Derailleur
Shimano 105 R7000 11s
Front Derailleur
Shimano 105 R7000 11s
Cassette
Shimano 105 R7000 11s
Bottom Bracket
Fazua Bottom Bracked
Chain
Shimano CN-HG601 11s
Wheels
Rims
Shimano RS
Tires
Pirelli P7 - Black, 60tpi Nylon breaker, max tyre size 28mm (width as measured)
Brakes
Brakes
Shimano 105 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
most alu round seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Remote
fazua® remote fx
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 50cm | 55cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 569 mm | 591 mm | 614 mm | 636 mm |
| Reach | 375 mm | 387 mm | 398 mm | 408 mm |
| Top Tube Length | 546 mm | 561 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 138 mm | 159 mm | 181 mm | 202 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

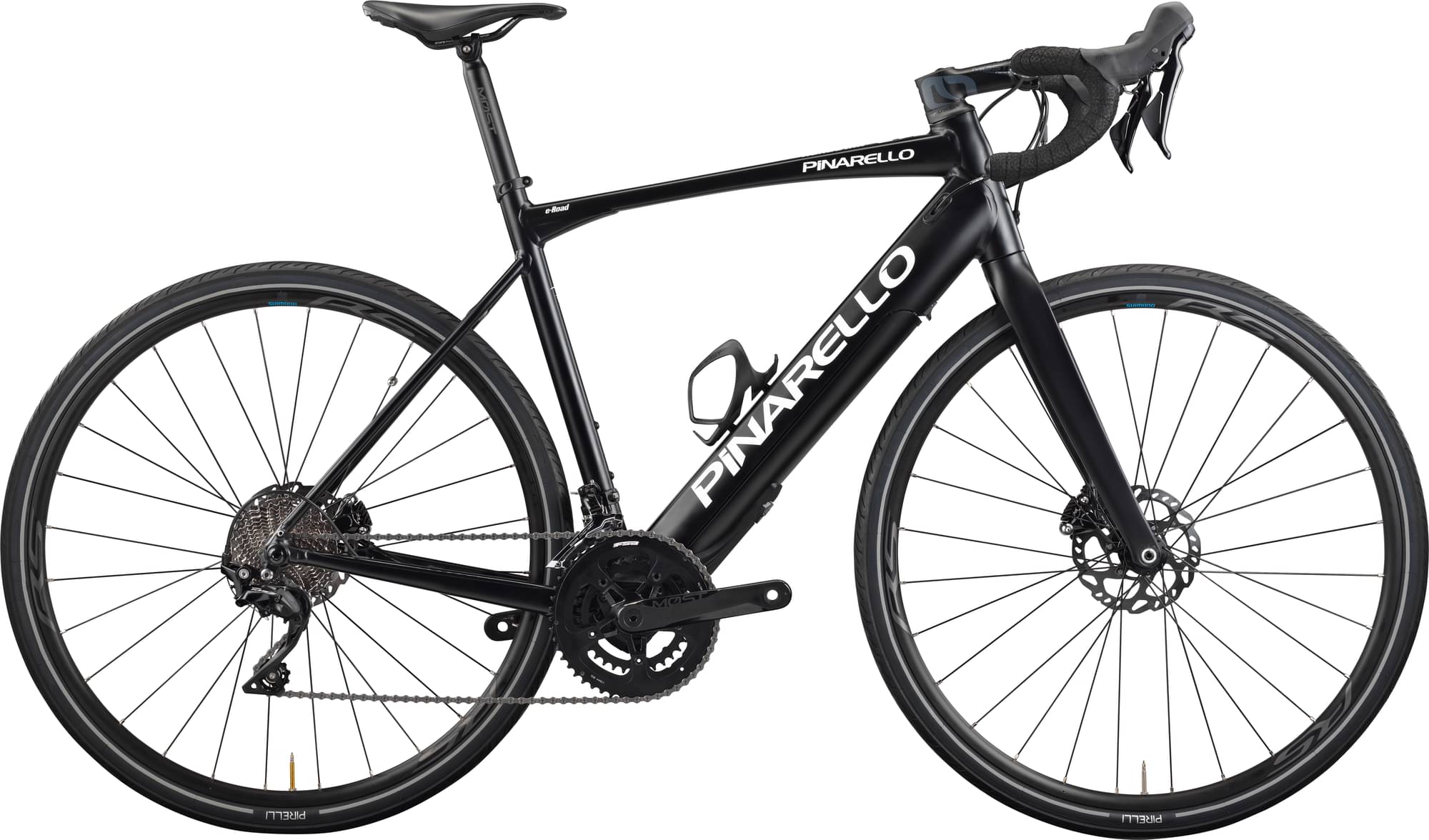

Nytro Roadstar 105 is a Pinarello E Nytro model. Pinarello launched 26 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race e-bikes average price
If you want to purchase a solid Race e-bike, it is important to know that the average cost is 4156$. However, this doesn’t mean that if you spend less money on a Race e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Nytro Roadstar 105 components
Fork material
Nytro Roadstar 105 has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Nytro Roadstar 105 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nytro Roadstar 105 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
