Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Suspension Fork
nytro carbon fork, tapered head tube
Drivetrain
Rear Derailleur
Shimano 105 R7000 11s
Front Derailleur
Shimano 105 R7000 11s
Cassette
Shimano 105 R7000 11s
Crank
most custom chainrings
Bottom Bracket
Fazua Bottom Bracked
Chain
Shimano CN-HG601 11s
Wheels
Rims
Shimano RS
Tires
Pirelli P7 - Black, 60tpi Nylon breaker, max tyre size 28mm (width as measured)
Brakes
Brakes
Front: Shimano 105 2 pistons caliper, 160mm rotor, Rear: Shimano 105 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
most alu round seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Fit data

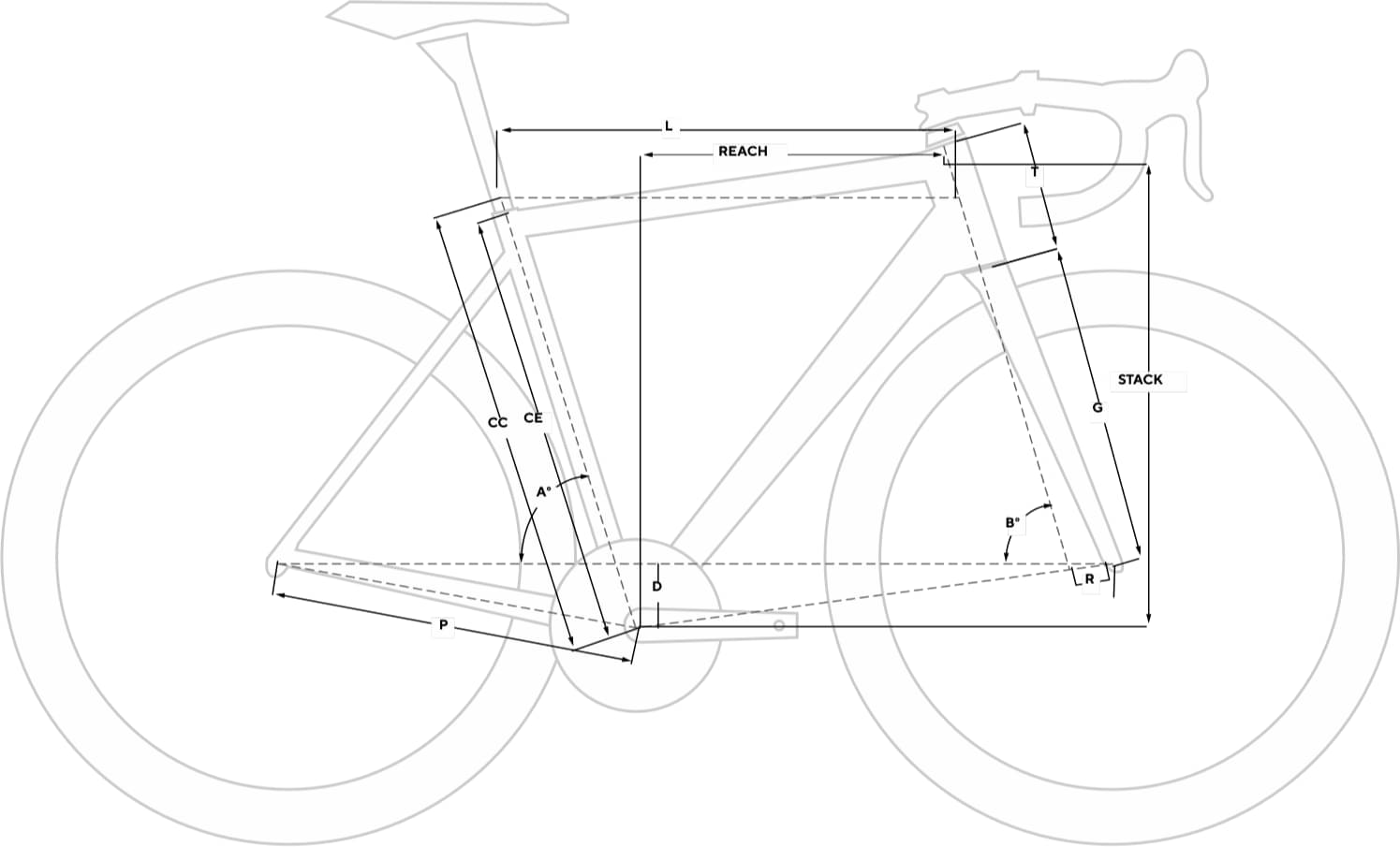

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 50cm | 55cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 569 mm | 591 mm | 614 mm | 636 mm |
| Reach | 375 mm | 387 mm | 398 mm | 408 mm |
| Top Tube Length | 546 mm | 561 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 138 mm | 159 mm | 181 mm | 202 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
Nytro Roadstar 105 completes the Pinarello E Nytro model. Pinarello launched 26 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race e-bikes average price
If you want an acceptable Race e-bike you should know that the average price is 4156$. However, even though the average price of a Race e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Nytro Roadstar 105 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Nytro Roadstar 105 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello Nytro Roadstar 105 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
