Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Fazua® Evation 1.0 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Suspension Fork
nytro carbon fork, tapered head tube
Drivetrain
Rear Derailleur
Shimano Deore 11s 1X
Cassette
Shimano Deore 11s
Crank
most custom chainrings
Bottom Bracket
Fazua Bottom Bracked
Chain
Shimano Deore 11s
Wheels
Rims
Shimano RS
Tires
Randonneur 40-622 Rigid D Reflective
Brakes
Brakes
Front: Shimano Deore 2 pistons caliper, 160mm rotor, Rear: Shimano Deore 2 pistons caliper, 160mm rotor
Cockpit
Stem
most stem
Handlebar
most flat handlebar
Grips
manopole most comfort
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
most alu round seatpost
Motor & Battery
Motor
Fazua® Evation Ride 50
Battery
Fazua® Evation 1.0 250Wh
Fit data

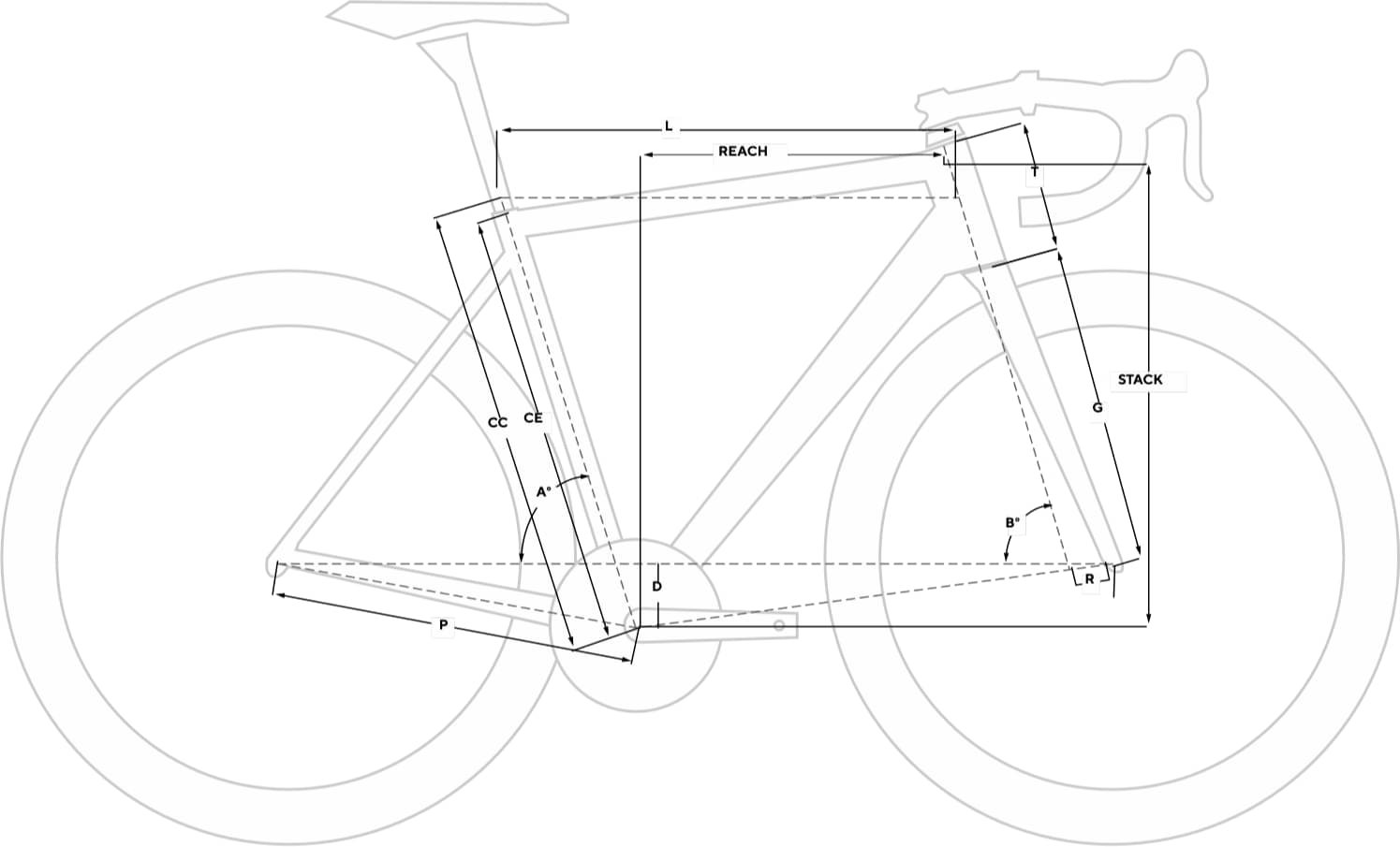

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 50cm | 55cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.56 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 569 mm | 591 mm | 614 mm | 636 mm |
| Reach | 375 mm | 387 mm | 398 mm | 408 mm |
| Top Tube Length | 546 mm | 561 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 138 mm | 159 mm | 181 mm | 202 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |

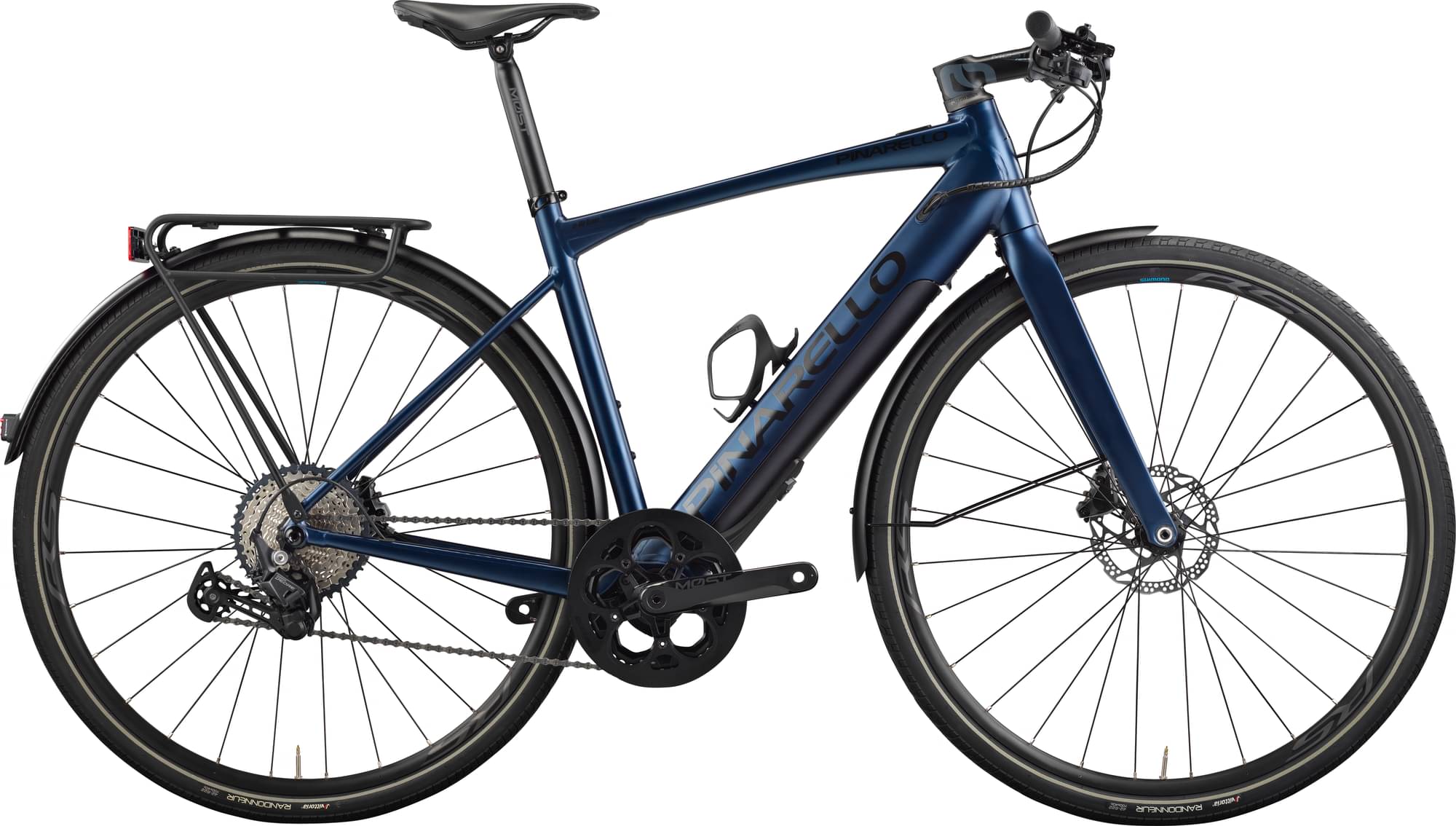

About this model
Nytro Urbanist Deore is part of the Pinarello E Nytro model. Pinarello launched 26 e-bikes of this model so far. You can easily view all of the Pinarello E Nytro e-bikes models from 2023, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Nytro Urbanist Deore are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello Nytro Urbanist Deore has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
