Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
Suspension Fork
Paris Onda Fork with ForkFlap™, Tapered head tube
Drivetrain
Rear Derailleur
SRAM Rival RD-RIV-E-D1 12 S
Cassette
SRAM Rival 12S CS-XG-1250-D1
Bottom Bracket
Italian, 70mm, threaded
Chain
SRAM Rival 12S
Wheels
Rims
MOST Ultrafast 40*
Tires
Pirelli P7 - Black, 60 tpi nylon breaker, max tyre size 25mm (width as measured)
Brakes
Brakes
SRAM Rival 2 pistons, 160mm rotor
Cockpit
Stem
Tiger Alu Aero Di2
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 503.4 mm | 515 mm | 528.2 mm | 540.2 mm | 551.5 mm | 563.8 mm | 578.1 mm | 596 mm | 616 mm |
| Reach | 338.4 mm | 348.5 mm | 358.2 mm | 364.6 mm | 368.5 mm | 372.6 mm | 376 mm | 379.9 mm | 383.9 mm |
| Top Tube Length | 483 mm | 500 mm | 516 mm | 527 mm | 536 mm | 546 mm | 556 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 119 mm | 124 mm | 136 mm | 145 mm | 155 mm | 167 mm | 181 mm | 205 mm | 226 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

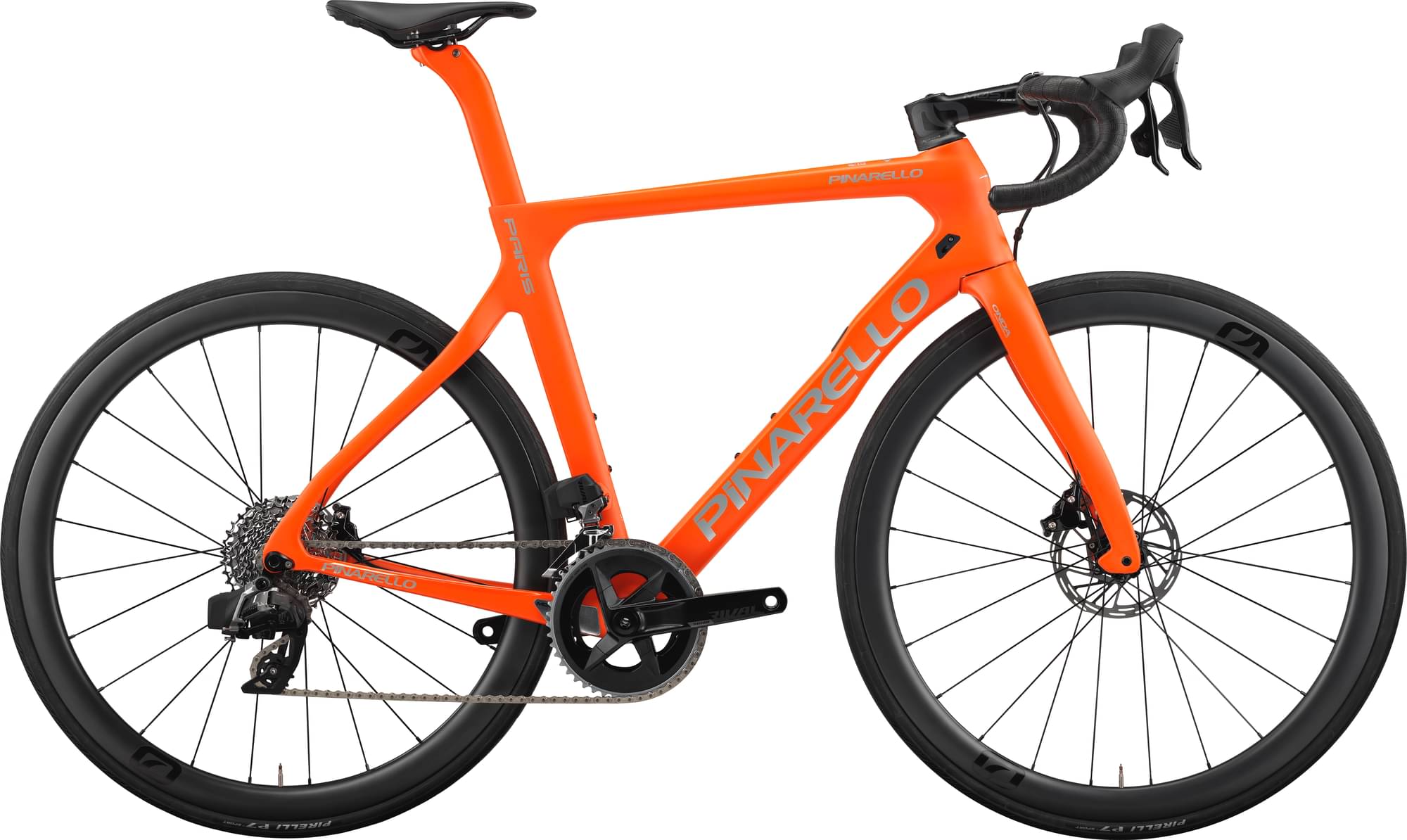

PARIS RIVAL AXS 12S completes the Pinarello Paris model. 9 bikes variations carry this model name so far. You can easily view all of the Pinarello Paris bikes models from 2022, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The PARIS RIVAL AXS 12S 2022 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello PARIS RIVAL AXS 12S has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
