Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41.5cm | 45cm | 51cm | 52.5cm | 54cm | 57cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.3 mm | 1.38 mm | 1.38 mm | 1.37 mm | 1.44 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 533 mm | 554 mm | 563 mm | 579 mm | 594 mm | 602 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 54 mm | 54 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 466 mm | 499 mm | 532 mm | 548 mm | 561 mm | 590 mm |
| Reach | 374 mm | 385 mm | 386 mm | 398 mm | 409 mm | 409 mm |
| Top Tube Length | 498 mm | 518 mm | 534 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 75.25 ° | 75.25 ° | 74.5 ° | 74.5 ° | 74.5 ° | 73.8 ° |
| Seat Tube Length | 415 mm | 450 mm | 510 mm | 525 mm | 540 mm | 570 mm |
| Head Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Length | 75 mm | 110 mm | 144 mm | 160 mm | 174 mm | 204 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 929 mm | 950 mm | 959 mm | 975 mm | 990 mm | 998 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

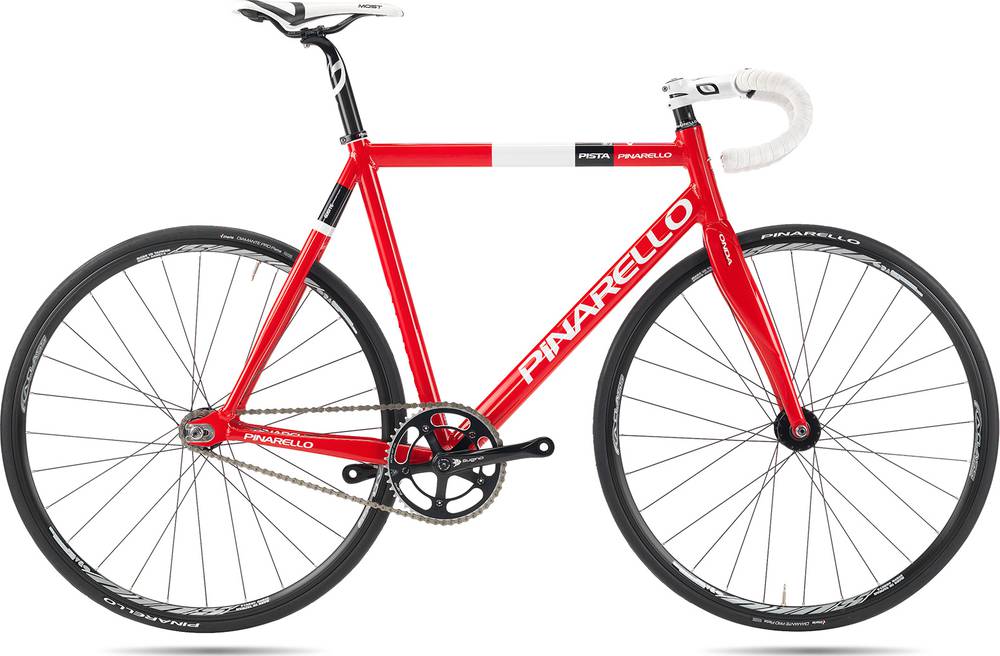

PISTA is part of the Pinarello Pista model. 7 frames variations carry this model name so far. You can easily view all of the Pinarello Pista frames models from 2019, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Track frames
If you want to purchase a solid Track frame, it is important to know that the average cost is 2508$. However, even though the average price of a Track frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
PISTA has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
