Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Aluminum
Suspension Fork
Carbon 30HM12K Monocoque 1 1/8"
Drivetrain
Bottom Bracket
BSA 68mm - English Threaded
Cockpit
Headset
Pinarello Integrated - 1 1/8"
Seat
Seatpost
31.6mm Required
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 51cm | 53cm | 55cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.3 mm | 1.38 mm | 1.38 mm | 1.37 mm | 1.44 mm |
| Stack | 466 mm | 499 mm | 532 mm | 548 mm | 561 mm | 590 mm |
| Reach | 374 mm | 385 mm | 386 mm | 398 mm | 409 mm | 409 mm |
| Top Tube Length | 498 mm | 518 mm | 534 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 75.25 ° | 75.25 ° | 74.5 ° | 74.5 ° | 74.5 ° | 73.8 ° |
| Seat Tube Length | 415 mm | 450 mm | 510 mm | 525 mm | 540 mm | 570 mm |
| Head Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Length | 75 mm | 110 mm | 144 mm | 160 mm | 174 mm | 204 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

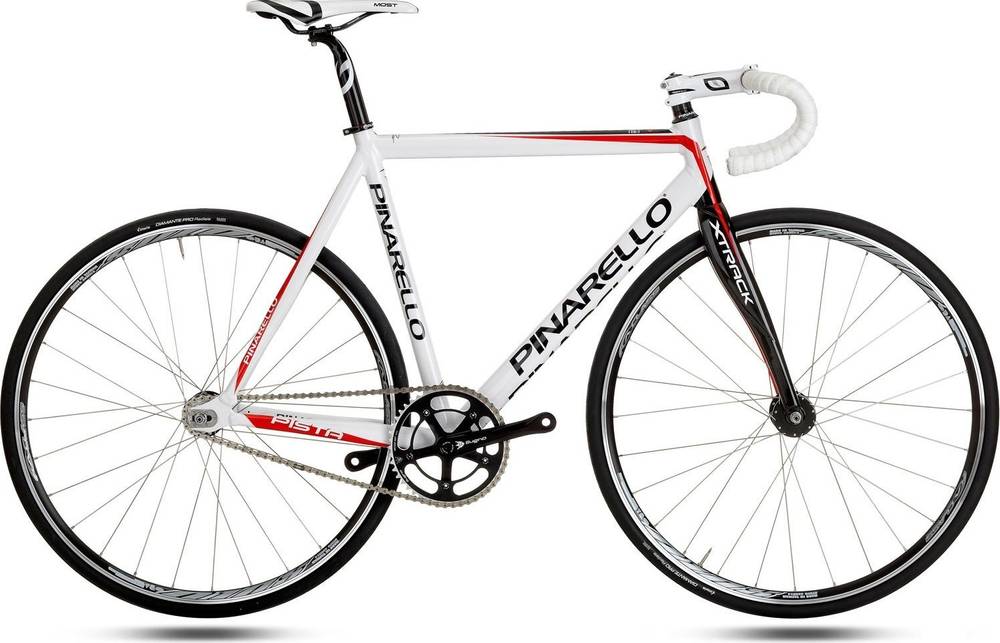

Pista Frameset is part of the Pinarello Pista model. 7 frames variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Track frames
If you want to purchase a solid Track frame, it is important to know that the average cost is 2508$. However, you could also get a good Track frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2016 and its price was 1000$. Comparing this to the average Track frame price, we see that the price is 150.8% lower.
Pista Frameset components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
