Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Suspension Fork
prince onda fork with forkflap™, 1.5' upper and lower steerer
Drivetrain
Rear Derailleur
SRAM force 12s
Front Derailleur
SRAM force 12s
Cassette
SRAM force xg-1270, 12s
Crank
SRAM force 12s
Bottom Bracket
SRAM force 12s
Chain
SRAM force 12s
Wheels
Rims
MOST Ultrafast 40*
Tires
Pirelli P7 - Black, 60tpi Nylon breaker, max tyre size 28mm (width as measured)
Brakes
Brakes
Front: Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle, Rear: Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Fit data

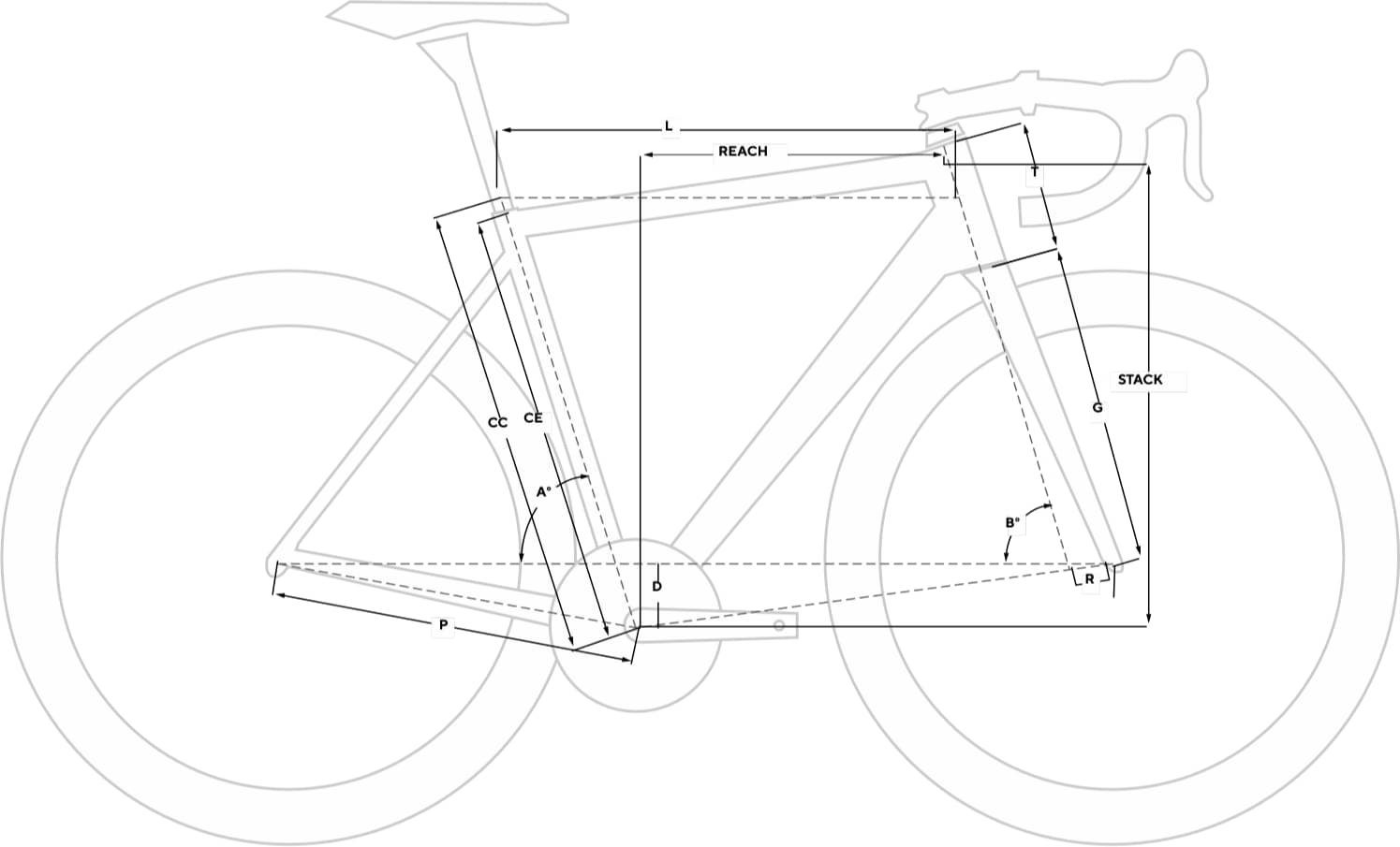

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.52 mm | 1.56 mm | 1.63 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 504 mm | 514 mm | 523 mm | 534 mm | 545 mm | 561 mm | 577 mm | 597 mm | 633 mm |
| Reach | 347 mm | 355 mm | 361 mm | 367 mm | 371 mm | 376 mm | 379 mm | 383 mm | 389 mm |
| Top Tube Length | 496 mm | 506 mm | 516 mm | 526 mm | 536 mm | 548 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73.25 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 440 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.75 ° | 72.25 ° | 72.75 ° | 72.75 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 106 mm | 108 mm | 116 mm | 124 mm | 135 mm | 151 mm | 168 mm | 193 mm | 231 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

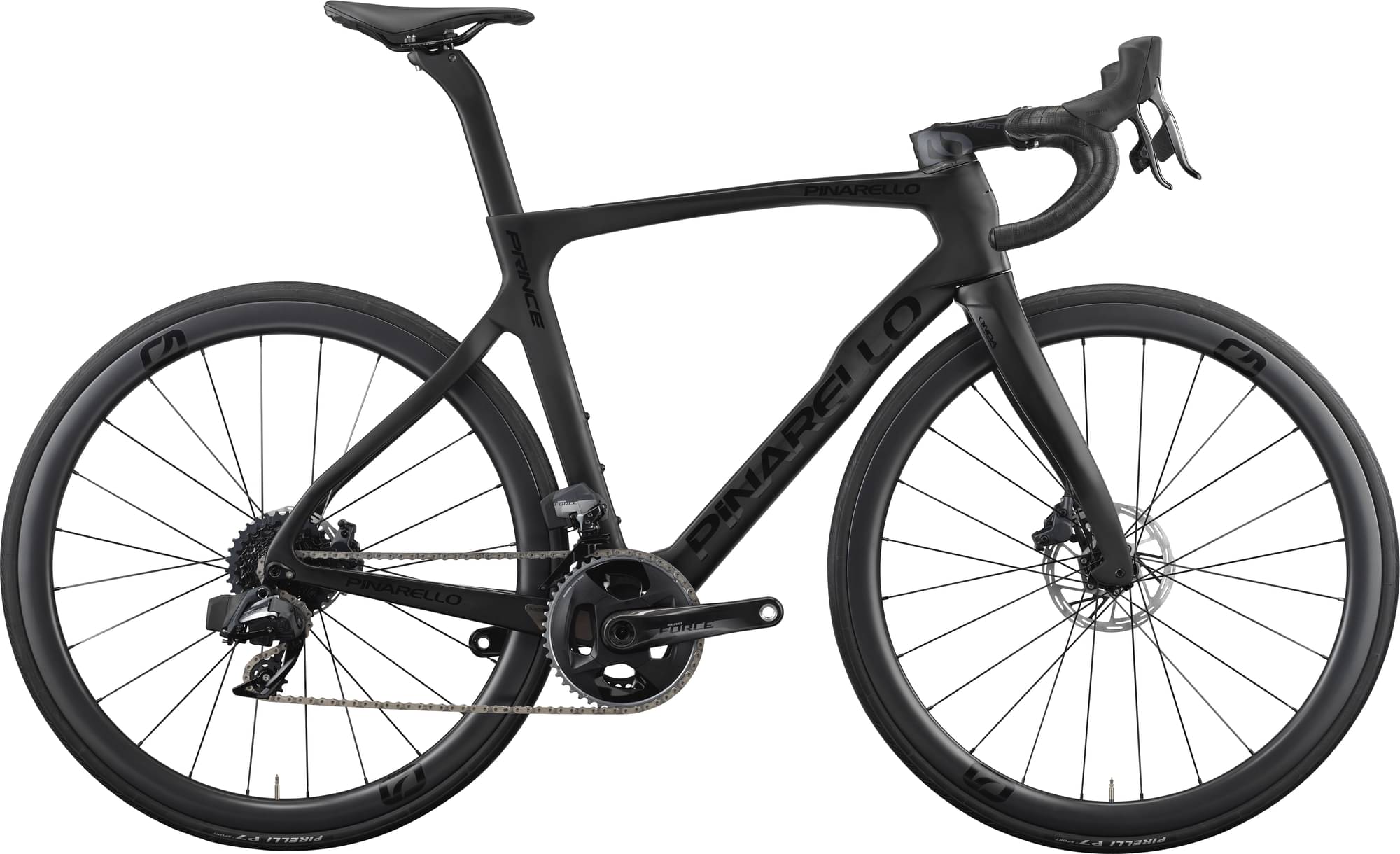

PRINCE FORCE ETAP AXS 12S Disc is part of the Pinarello Prince model. Pinarello released 35 bikes variations of this model so far. You can easily view all of the Pinarello Prince bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Pinarello PRINCE FORCE ETAP AXS 12S Disc 2023, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
