Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Suspension Fork
prince onda fork with forkflap™, 1.5' upper and lower steerer
Drivetrain
Rear Derailleur
SRAM force 12s
Front Derailleur
SRAM force 12s
Cassette
SRAM force xg-1270, 12s
Crank
SRAM force 12s
Bottom Bracket
SRAM force 12s
Chain
SRAM force 12s
Wheels
Rims
MOST Ultrafast 40*
Tires
Pirelli P7 - Black, 60 tpi nylon breaker, max tyre size 25mm (width as measured)
Brakes
Brakes
Front: Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle, Rear: Aluminium 6061, triple butted with integrated battery and cable routing, 12x142 thru-axle
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero Di2
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Fit data

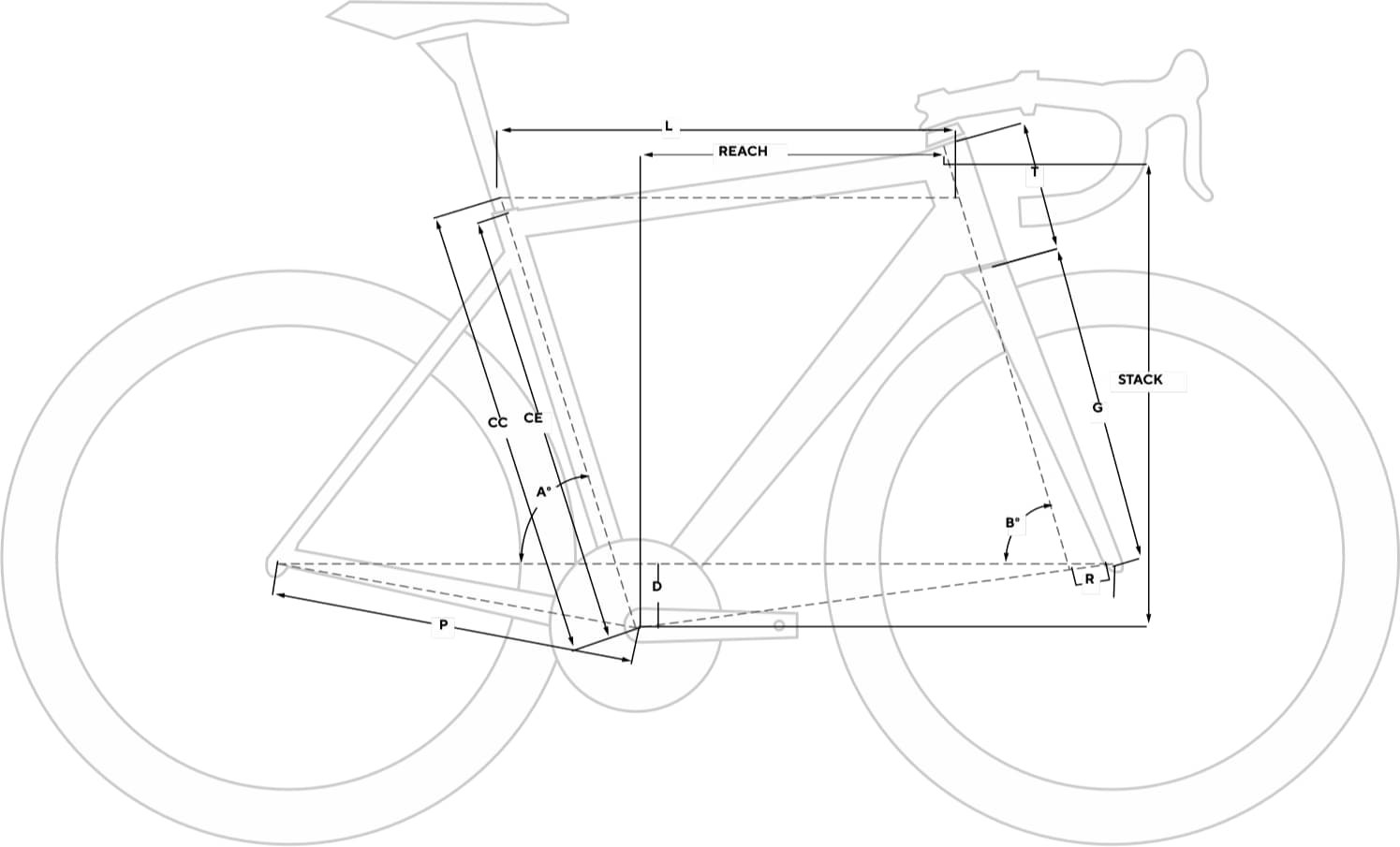

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.52 mm | 1.56 mm | 1.63 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 504 mm | 514 mm | 523 mm | 534 mm | 545 mm | 561 mm | 577 mm | 597 mm | 633 mm |
| Reach | 347 mm | 355 mm | 361 mm | 367 mm | 371 mm | 376 mm | 379 mm | 383 mm | 389 mm |
| Top Tube Length | 496 mm | 506 mm | 516 mm | 526 mm | 536 mm | 548 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73.25 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 440 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.75 ° | 72.25 ° | 72.75 ° | 72.75 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 106 mm | 108 mm | 116 mm | 124 mm | 135 mm | 151 mm | 168 mm | 193 mm | 231 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
PRINCE FORCE ETAP AXS 12S Rim is a Pinarello Prince model. Pinarello launched 35 bikes of this model so far. Take a sneak peek at all Pinarello Prince bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Pinarello PRINCE FORCE ETAP AXS 12S Rim 2023, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello PRINCE FORCE ETAP AXS 12S Rim has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
