Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T700 UD, TiCR™ cable routing, Italian BB, UCI approved
Suspension Fork
prince onda fork with forkflap™, 1.5' upper and lower steerer
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 11s
Front Derailleur
Shimano Ultegra R8000 11s
Cassette
Shimano Ultegra R8000 11s
Bottom Bracket
shimano ultegra
Chain
Shimano HG701 11s
Wheels
Rims
Fulcrum Racing 500
Tires
Pirelli P Zero Race 26mm - Black, 127tpi aramid breaker. Max tyre size 28mm (width as measured)
Brakes
Brakes
shimano ultegra r8000 direct mount caliper
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero TiCR
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Pinarello Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.52 mm | 1.56 mm | 1.63 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 504 mm | 514 mm | 523 mm | 534 mm | 545 mm | 561 mm | 577 mm | 597 mm | 633 mm |
| Reach | 347 mm | 355 mm | 361 mm | 367 mm | 371 mm | 376 mm | 379 mm | 383 mm | 389 mm |
| Top Tube Length | 496 mm | 506 mm | 516 mm | 526 mm | 536 mm | 548 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73.25 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 440 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.75 ° | 72.25 ° | 72.75 ° | 72.75 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 106 mm | 108 mm | 116 mm | 124 mm | 135 mm | 151 mm | 168 mm | 193 mm | 231 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

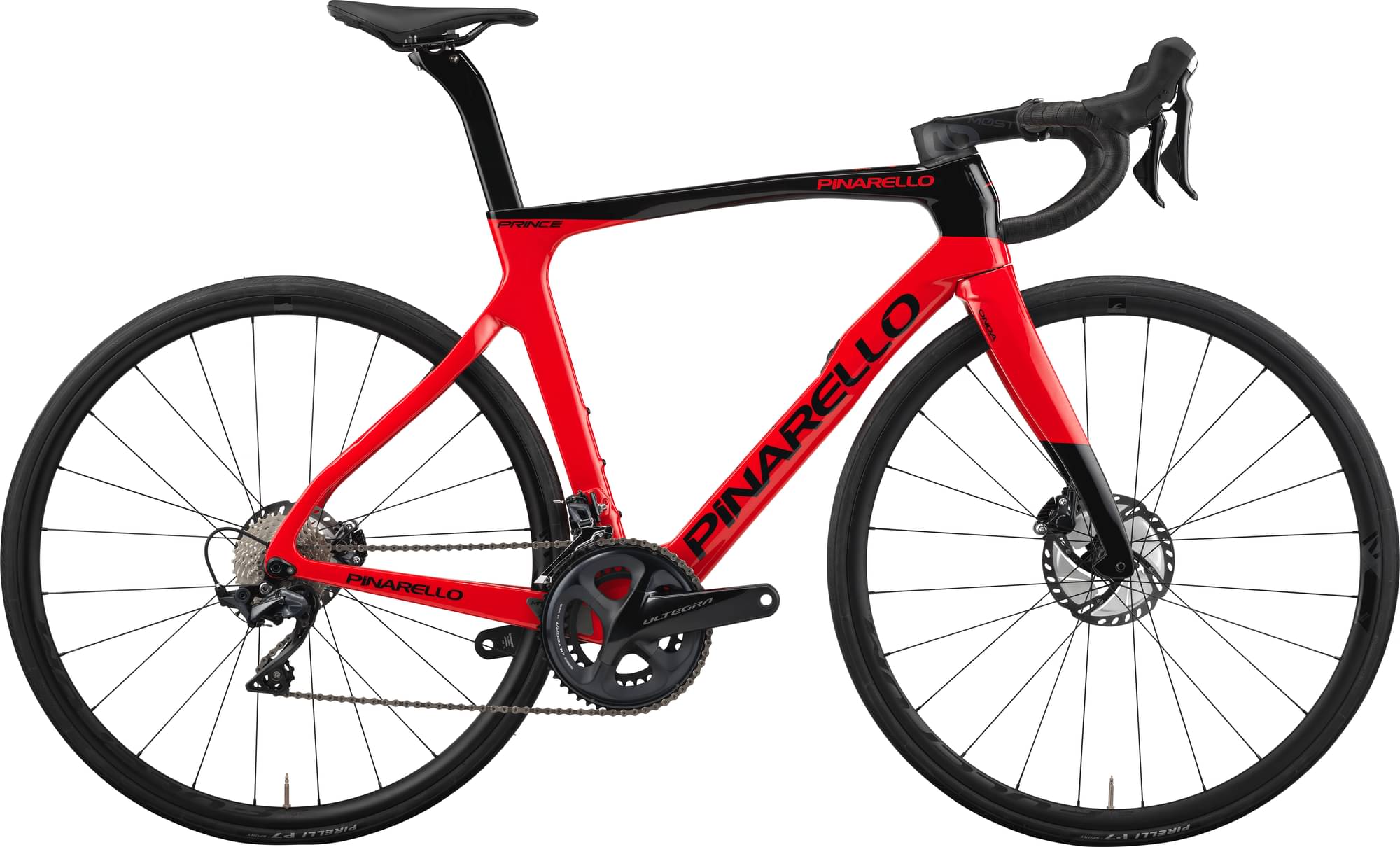

PRINCE ULTEGRA 11S Rim completes the Pinarello Prince model. Pinarello launched 35 bikes of this model so far. Take a sneak peek at all Pinarello Prince bikes models from 2022, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
PRINCE ULTEGRA 11S Rim components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The PRINCE ULTEGRA 11S Rim 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PRINCE ULTEGRA 11S Rim comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
