Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T700 UD, TiCR™ cable routing, Italian BB
Suspension Fork
prince onda fork with forkflap™, 1.5' upper and lower steerer
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 11s
Front Derailleur
Shimano Ultegra R8000 11s
Cassette
Shimano Ultegra R8000 11s
Crank
Shimano Ultegra R8000 11s
Bottom Bracket
shimano ultegra
Chain
Shimano HG701 11s
Wheels
Rims
Fulcrum Racing 500
Tires
Pirelli P Zero Race 26mm - Black, 127tpi aramid breaker. Max tyre size 28mm (width as measured)
Brakes
Brakes
Front: shimano ultegra r8000 direct mount caliper, Rear: shimano ultegra r8000 direct mount caliper
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero TiCR
Seat
Saddle
Most Lynx Aircross FEC Alloy Large 145mm
Seatpost
Pinarello Aero Seatpost
Fit data

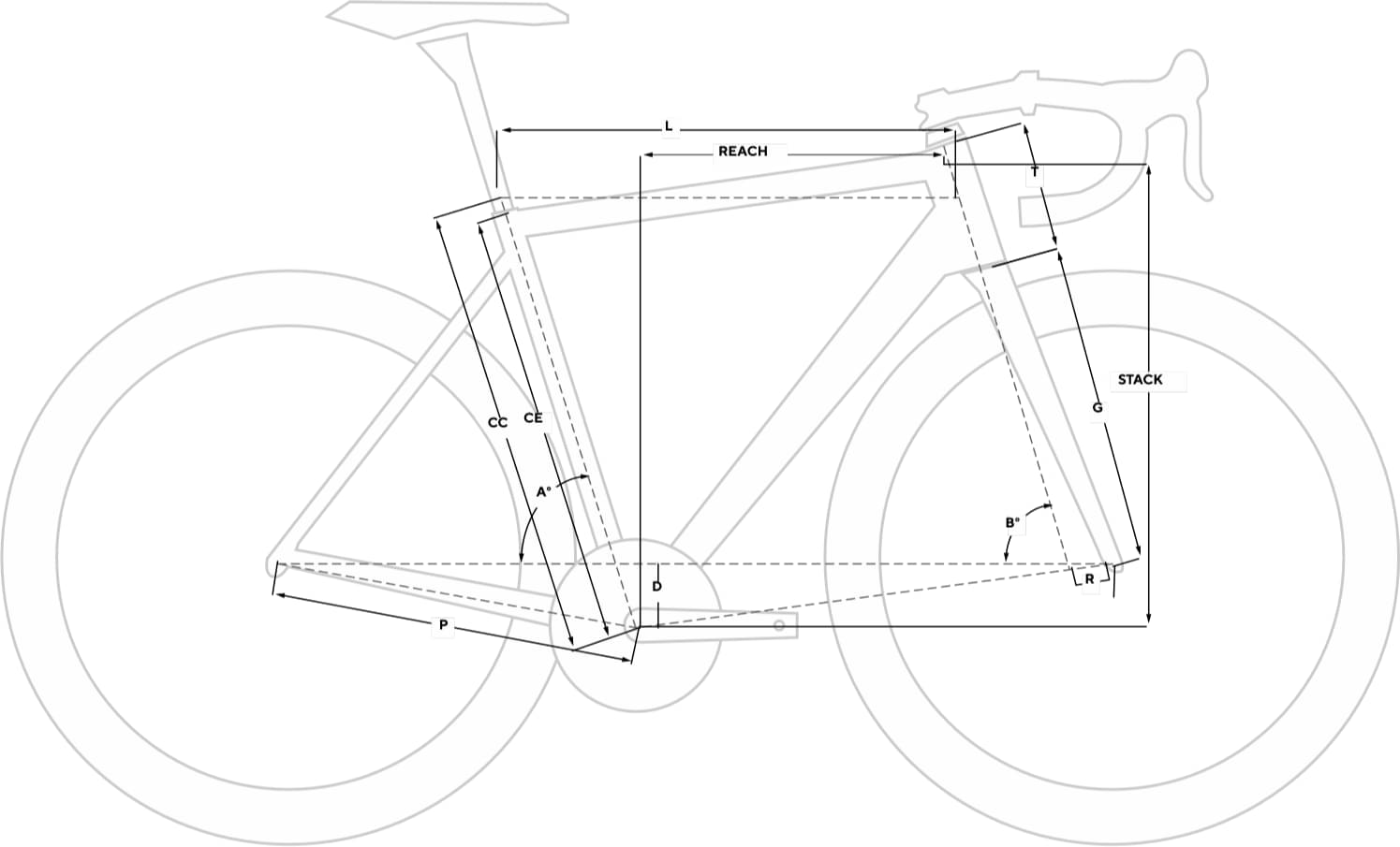

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.52 mm | 1.56 mm | 1.63 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 504 mm | 514 mm | 523 mm | 534 mm | 545 mm | 561 mm | 577 mm | 597 mm | 633 mm |
| Reach | 347 mm | 355 mm | 361 mm | 367 mm | 371 mm | 376 mm | 379 mm | 383 mm | 389 mm |
| Top Tube Length | 496 mm | 506 mm | 516 mm | 526 mm | 536 mm | 548 mm | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73.25 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 440 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.75 ° | 72.25 ° | 72.75 ° | 72.75 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 106 mm | 108 mm | 116 mm | 124 mm | 135 mm | 151 mm | 168 mm | 193 mm | 231 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
PRINCE ULTEGRA 11S Rim is part of the Pinarello Prince model. Pinarello released 35 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
PRINCE ULTEGRA 11S Rim components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the PRINCE ULTEGRA 11S Rim model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
