Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
Suspension Fork
Razha Onda Fork with ForkFlap™, tapered head tube
Drivetrain
Rear Derailleur
shimano tiagra 4700 gs 10s
Front Derailleur
shimano tiagra 4700 10s
Cassette
Shimano HG500 10s
Bottom Bracket
shimano tiagra
Chain
shimano tiagra 4700 10s
Wheels
Rims
Shimano RS
Tires
Pirelli P7 - Black, 60 tpi nylon breaker, max tyre size 25mm (width as measured)
Brakes
Brakes
shimano tiagra 4700
Cockpit
Stem
most alu
Handlebar
most alu
Seat
Saddle
most saddle
Seatpost
most alu round seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 48.5cm | 52cm | 53.5cm | 55cm | 56cm | 57cm | 58cm | 59.5cm | 61.5cm |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.4 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.53 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 511 mm | 518 mm | 531 mm | 537 mm | 552 mm | 561 mm | 572 mm | 580 mm | 595 mm | 614 mm |
| Reach | 361 mm | 373 mm | 378 mm | 384 mm | 390 mm | 390 mm | 394 mm | 396 mm | 402 mm | 401 mm |
| Top Tube Length | 509 mm | 521 mm | 531 mm | 541 mm | 551 mm | 556 mm | 563 mm | 571 mm | 581 mm | 593 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 440 mm | 465 mm | 500 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 595 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 144 mm | 152 mm | 163 mm | 170 mm | 184 mm | 210 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

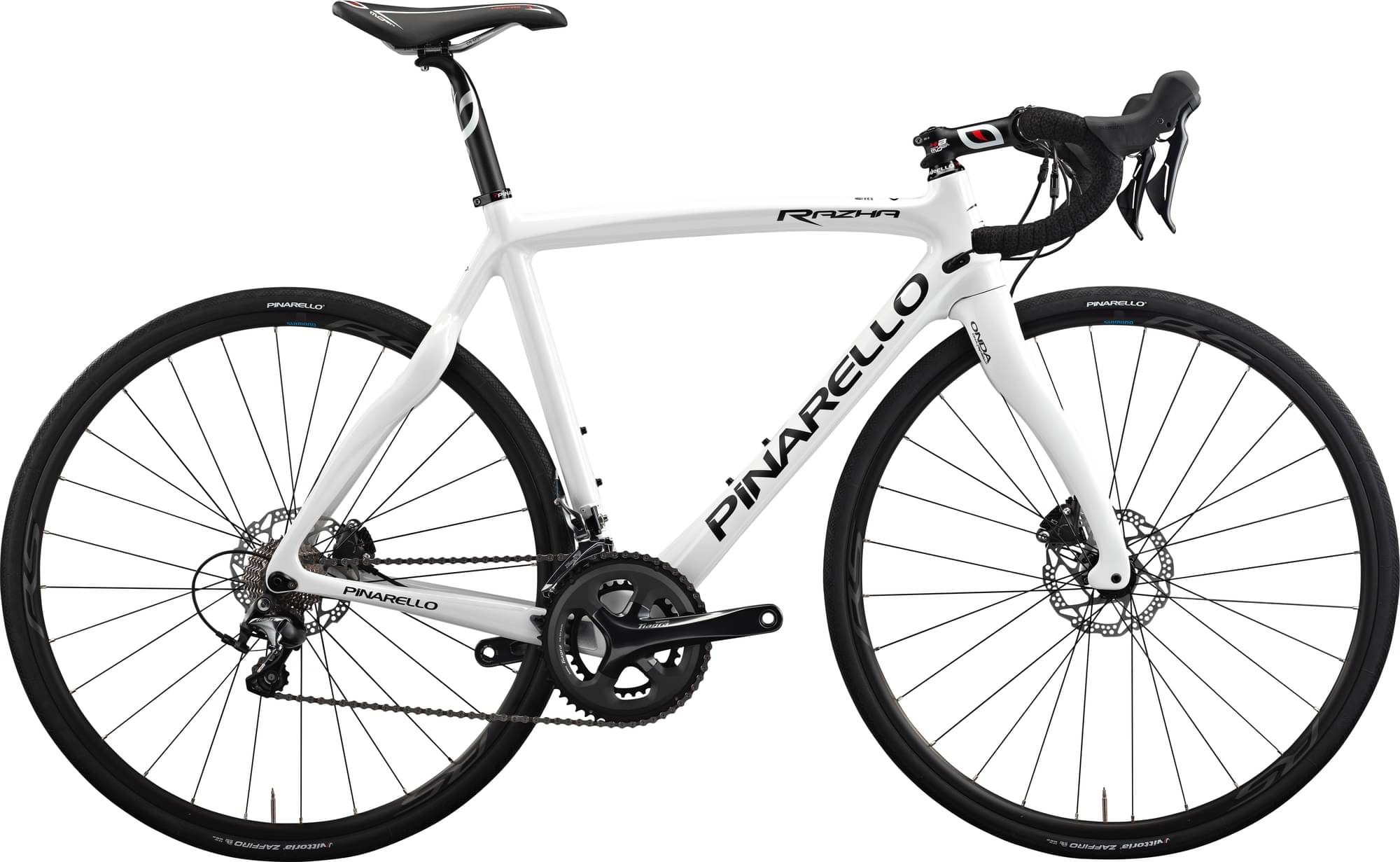

About this model
Razha Tiagra Rim belongs to the Pinarello Razha model. There are 10 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Razha Tiagra Rim components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Razha Tiagra Rim model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello Razha Tiagra Rim has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
