Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.4 mm | 1.4 mm | 1.42 mm |
| Front Center | 579 mm | 579 mm | 595 mm | 602 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 77 mm | 64 mm | 65 mm | 58 mm |
| Stack | 520 mm | 532 mm | 546 mm | 568 mm |
| Reach | 365 mm | 379 mm | 391 mm | 400 mm |
| Top Tube Length | 518 mm | 538 mm | 553 mm | 568 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 72 ° | 72 ° | 73 ° |
| Head Tube Length | 125 mm | 130 mm | 145 mm | 165 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 986 mm | 986 mm | 1002 mm | 1009 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

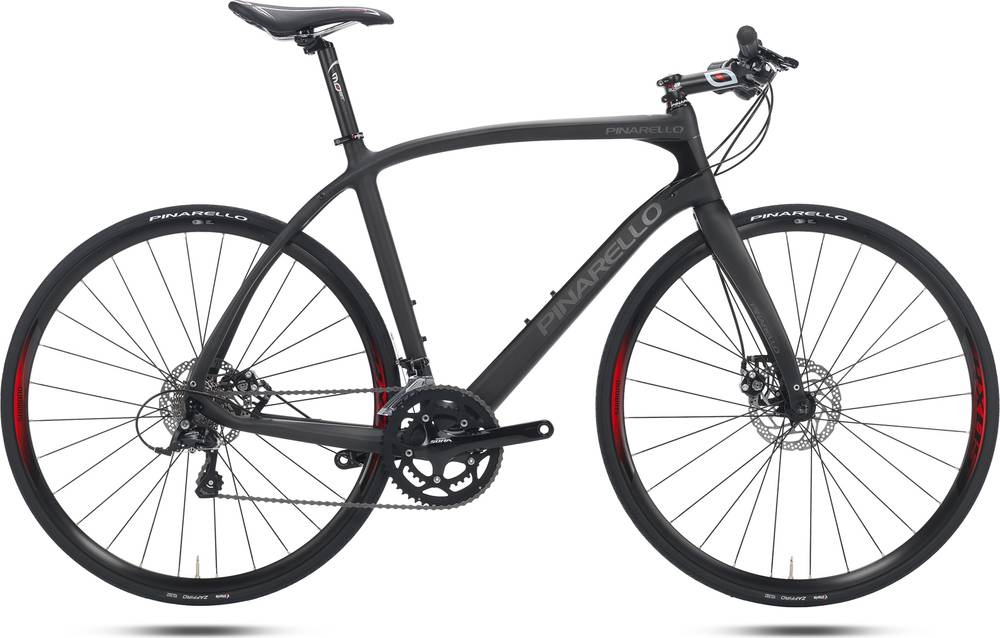

TREVISO CARBON Hydro is a Pinarello Treviso model. Pinarello released 11 frames variations of this model so far. You can easily view all of the Pinarello Treviso frames models from 2015, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter frames
Our math shows that the average cost of a dependable Commuter frame is 742$. However, this doesn’t mean that if you spend less money on a Commuter frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Overview of components
Sizes
Pinarello TREVISO CARBON Hydro frame has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
