Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
Drivetrain
Cassette
SRAM Rival ETAP AXS 12S
Crank
SRAM Rival ETAP AXS 12S
Bottom Bracket
SRAM Rival ETAP AXS 12S
Chain
SRAM Rival ETAP AXS 12S
Brakes
Brakes
Front: SRAM Rival 2 pistons, 160mm rotor, Rear: SRAM Rival 2 pistons, 160mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero TiCR
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

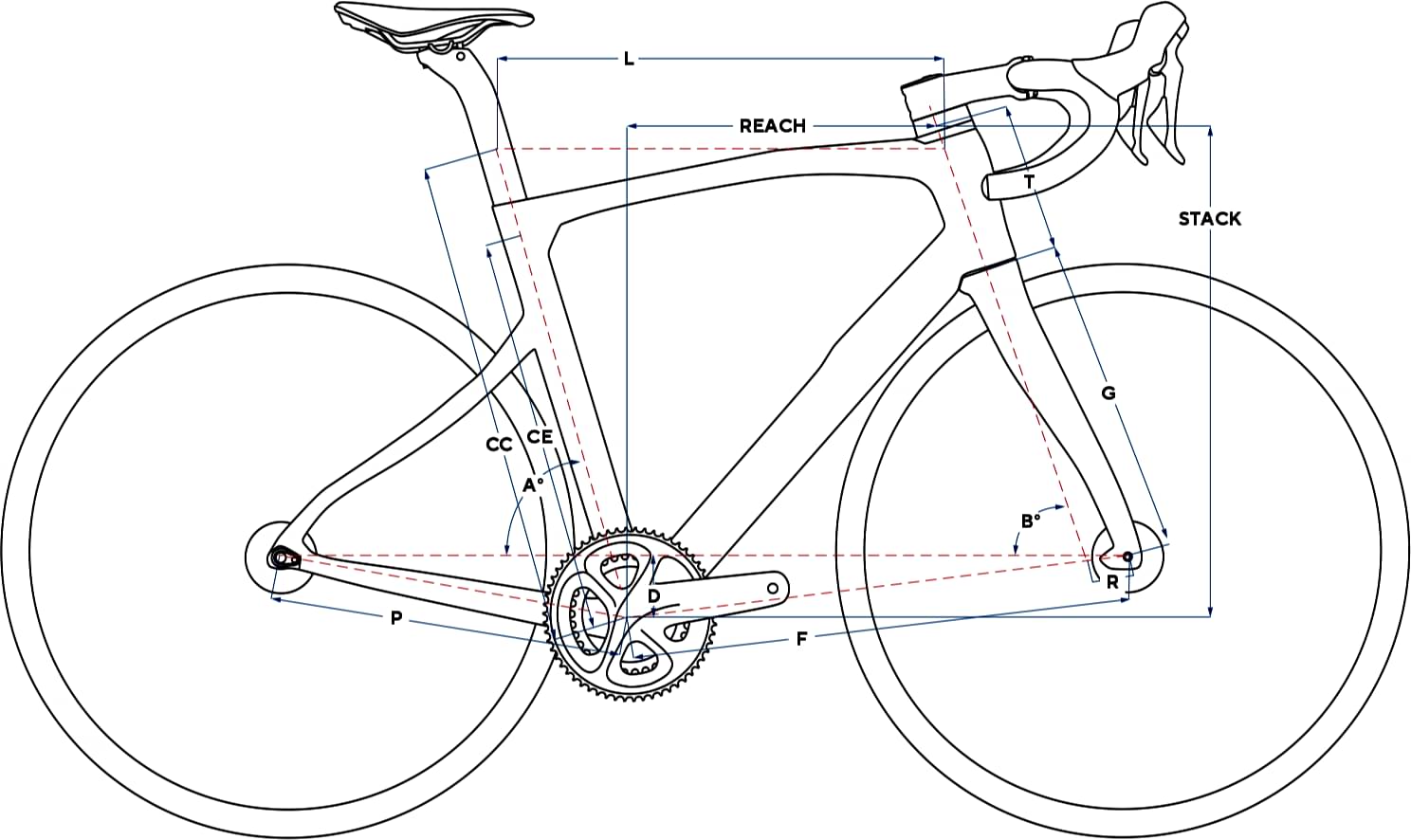

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm | 1.54 mm | 1.54 mm | 1.56 mm | 1.58 mm | 1.6 mm | 1.63 mm | 1.67 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 518.5 mm | 530.2 mm | 543.4 mm | 555.4 mm | 566.8 mm | 579.2 mm | 593.4 mm | 611.3 mm | 631.4 mm |
| Reach | 332.9 mm | 343.1 mm | 352.9 mm | 359.5 mm | 363.5 mm | 367.7 mm | 371.2 mm | 375.1 mm | 379.1 mm |
| Top Tube Length | 483 mm | 500 mm | 516 mm | 527 mm | 536 mm | 546 mm | 556 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 130 mm | 142 mm | 151 mm | 161 mm | 173 mm | 187 mm | 211 mm | 232 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

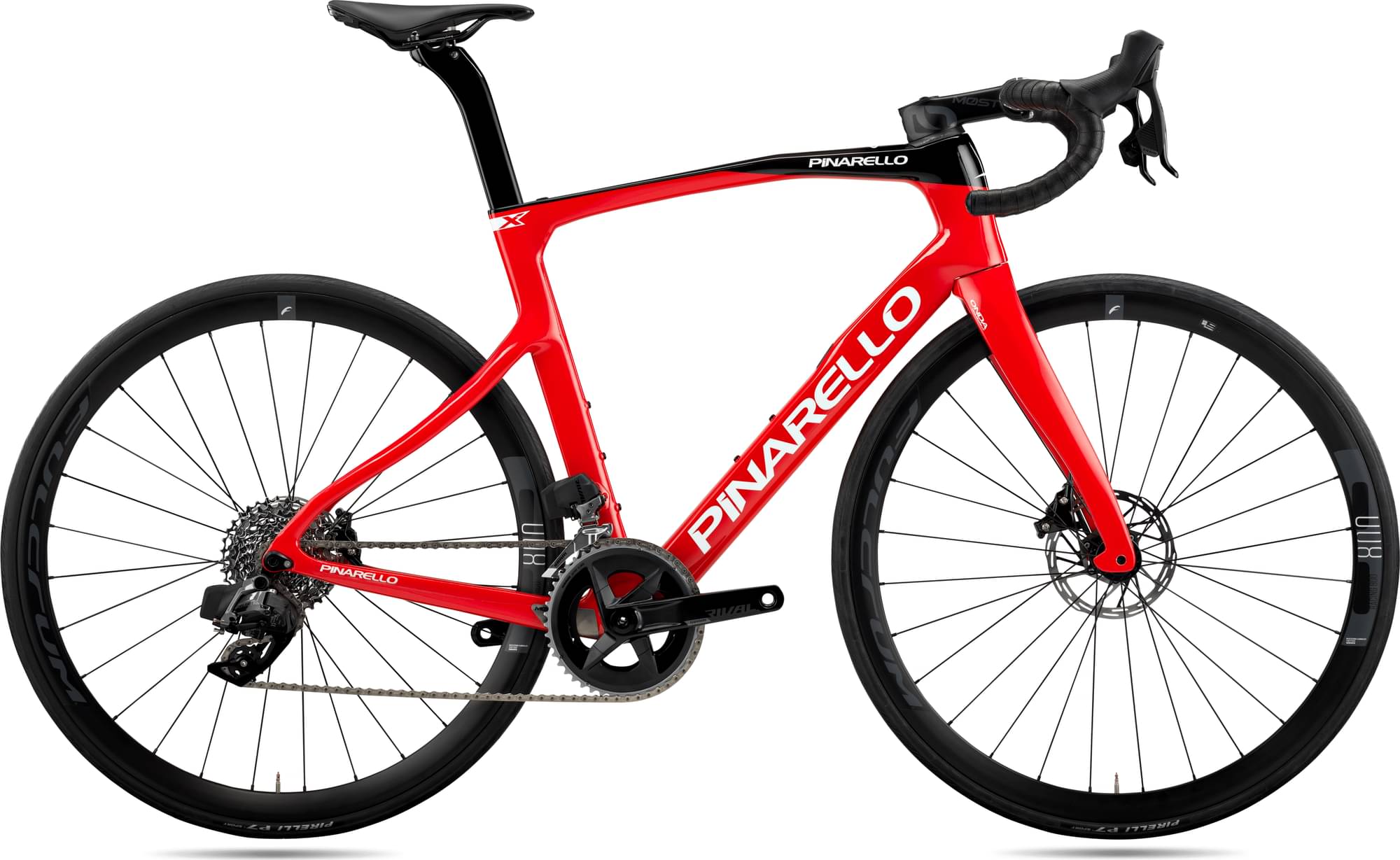

X3 SRAM RIVAL AXS completes the Pinarello X3 model. Pinarello launched 2 bikes of this model so far. Take a sneak peek at all Pinarello X3 bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The X3 SRAM RIVAL AXS 2023 bike is equipped with 700c wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello X3 SRAM RIVAL AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
