Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset microSHIFT -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6013-T6 heat treated alloy, w/Eccentric BB, Triple butted top tube, down tube & smooth welds. 3 x bottle cage mounts, Internal cable routing for mechanical and Di2, interchangeable dropout & rack/mudguard mounts.
Suspension Fork
Full carbon fork and steerer w/flat mount, mudguard mounts & dynamo routing
Drivetrain
Shift Levers
Microshift BS-N08 8 speed
Cassette
Shimano Alfine Sprocket 19T
Bottom Bracket
Samox BSA thread
Chain
KMC SS 3/32
Pedals
Not Supplied
Wheels
Front Hub
Novatec 32H 2 sealed bearing 12 x 100mm
Rear Hub
Shimano Alfine S7001 8 speed internal hub gear
Rims
WTB ST i21 TCS 700c 32 hole, pinned, tubeless ready
Tires
WTB Riddler Comp 700 x 37c Tan Sidewall
Brakes
Brakes
TRP Hylex RS hydraulic discs w/160mm centrelock rotors
Cockpit
Stem
Pinnacle alloy road, +/- 7 degree, S/M - 80mm, L - 90mm, XL - 100mm
Handlebar
Pinnacle 6061 alloy gravel bar, 130mm drop, 8 degree flare, 86mm reach, S/M - 420mm, L/XL - 440mm
Headset
FSA Orbit C-40-ACB, No.42
Seat
Saddle
WTB Volt Comp 142
Seatpost
Pinnacle aluminium 350mm x 27.2mm

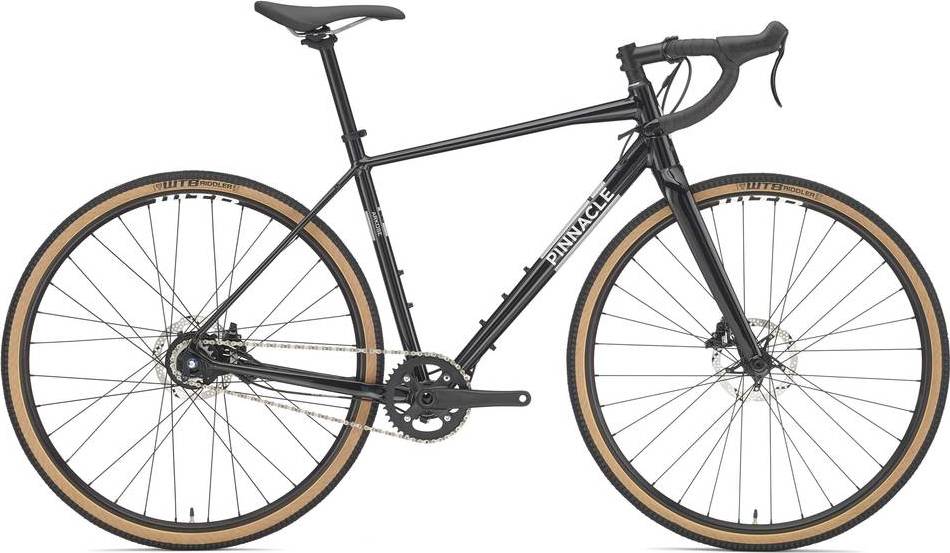

About this model
Arkose A8 completes the Pinnacle Arkose model. Pinnacle released 15 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Pinnacle Arkose A8 it’s weighing 11.2 kg (24.69 lbs). At this weight, is much heavier than average. In other words, this model is 37.76% heavier than the average Gravel bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Arkose A8 2020 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Arkose A8 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Pinnacle Arkose A8 2020 is available in one size only. In conclusion, double-check its size to make sure it’s a good fit for you.
