Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6013-T6 heat treated alloy, w/Triple butted top tube, down tube & smooth welds. 3 x bottle cage mounts, Internal cable routing for mechanical and Di2, interchangeable dropout & rack/mudguard mounts.
Suspension Fork
Full carbon fork and Alloy steerer w/flat mount, mudguard mounts
Drivetrain
Rear Derailleur
Shimano Sora R3000 GS 9 speed
Front Derailleur
Shimano Sora R3000 30.9mm band on
Shift Levers
Shimano Sora R3000 9 speed
Cassette
Shimano HG400 9 speed 11-32T
Bottom Bracket
FSA BB-4000 BSA thread
Chain
KMC X9
Pedals
Not Supplied
Wheels
Front Hub
Loose ball bearing 32H 12 x 100mm
Rear Hub
Novatec 32H 2 sealed bearing 12 x 142mm
Rims
WTB ST i21 TCS 700c 32 hole, pinned, tubeless ready
Tires
WTB Riddler Comp 700 x 45c Tan Sidewall
Brakes
Brakes
TRP Spyre Mechanical Discs w/160mm Rotors
Cockpit
Stem
Pinnacle alloy road, +/- 7 degree, S/M - 80mm, L - 90mm, XL - 100mm
Handlebar
Pinnacle 6061 alloy gravel bar, 130mm drop, 8 degree flare, 86mm reach, S/M - 420mm, L/XL - 440mm
Headset
FSA Orbit C-40-ACB, No.42
Seat
Saddle
WTB Volt Comp 142
Seatpost
Pinnacle aluminium 350mm x 27.2mm

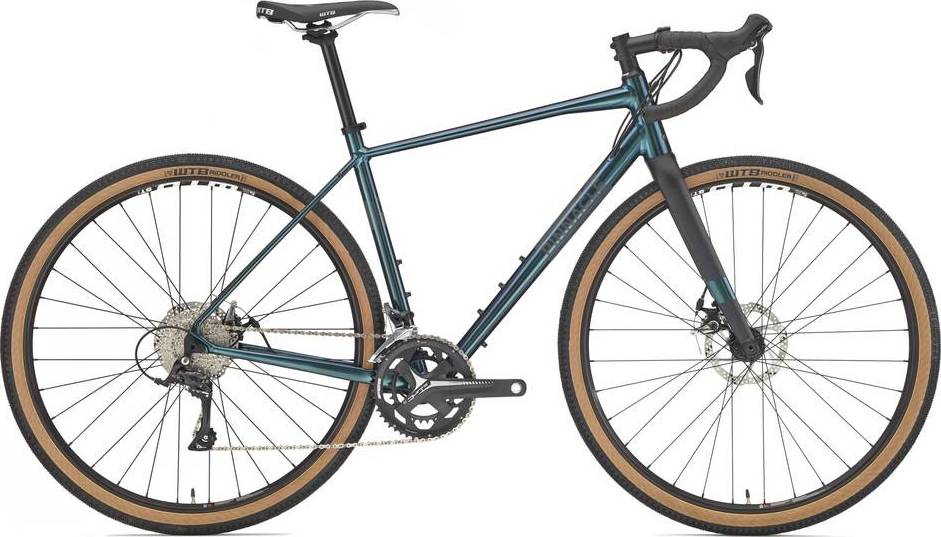

About this model
Arkose D1 is part of the Pinnacle Arkose model. Pinnacle launched 15 bikes of this model so far. Take a sneak peek at all Pinnacle Arkose bikes models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 11.28 kg (24.87 lbs), Pinnacle bike is much heavier than average. In conclusion, the average Gravel bike weighs 38.75% less than Arkose D1.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Arkose D1 components
Fork material
Arkose D1 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Arkose D1 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Arkose D1 has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Pinnacle Arkose D1 2020 is available in one size only. In conclusion, make sure it fits you, or look for another model.
