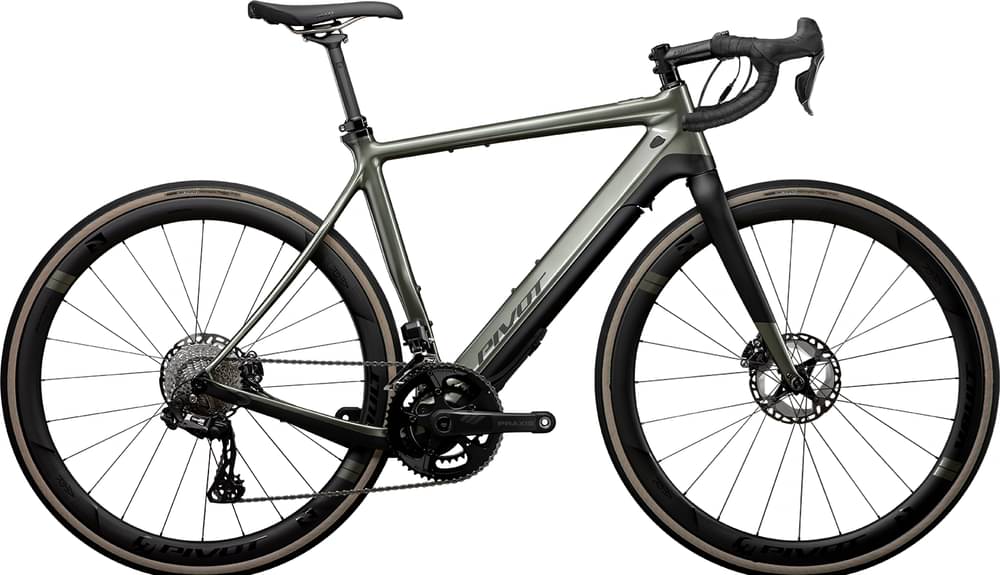

Pivot E-Vault Team GRX Di2 w/ Carbon Wheels 2021
2021 E-bike
Estimate price |
9,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX Di2 -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Vault
Suspension Fork
Pivot Vault Carbon
Drivetrain
Rear Derailleur
Shimano GRX 815 Di2 11-Speed
Front Derailleur
Shimano Di2 Double GRX FD-RX815
Shift Levers
Shimano GRX 815 Di2 11-Speed
Cassette
Shimano Ultegra HG-800 11-34t
Crank
Fazua Carbon 50/34
Chain
Shimano CN-HG600 11-Speed
Wheels
Rims
Reynolds ATRx 23mm Carbon - 700C 12x100 F/12x142 R
Tires
Maxxis RE-FUSE 700c x 32mm TR - Black (Stealth) Skinwall (Green)
Brakes
Brakes
Shimano GRX 810 2-piston
Disk Rotors
Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Cockpit
Stem
Phoenix Team 31.8mm
Handlebar
Easton EC70 SL Carbon - 40cm (XS) 42cm (SM) 44cm (MD) 46cm (LG-XL)
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Phoenix Pro ISO Flex Carbon
Motor & Battery
Motor
Fazua Evation
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 590 mm | 592 mm | 610 mm | 618 mm | 628 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 70 mm | 66 mm | 66 mm | 66 mm |
| Stack | 527 mm | 556 mm | 581 mm | 596 mm | 619 mm |
| Reach | 381 mm | 388 mm | 402 mm | 405 mm | 407 mm |
| Top Tube Length | 522 mm | 545 mm | 572 mm | 585 mm | 597 mm |
| Seat Tube Angle | 74.8 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 458 mm | 528 mm | 548 mm | 568 mm | 588 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1007 mm | 1009 mm | 1027 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 773 mm | 794 mm | 812 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
E-Vault Team GRX Di2 w/ Carbon Wheels belongs to the Pivot E E Vault model. 4 e-bikes variations carry this model name so far. Take a sneak peek at all Pivot E E Vault e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Pivot E-Vault Team GRX Di2 2021 has a starting price of 9299$. Pivot E-Vault Team GRX Di2 w/ Carbon Wheels 2021 on the other hand is the most expensive at 9999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 9999$. Doing a quick comparison, we notice that E-Vault Team GRX Di2 w/ Carbon Wheels price is 174.55% more expensive than the average cost of a Gravel e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the E-Vault Team GRX Di2 w/ Carbon Wheels e-bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Vault Team GRX Di2 w/ Carbon Wheels comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
