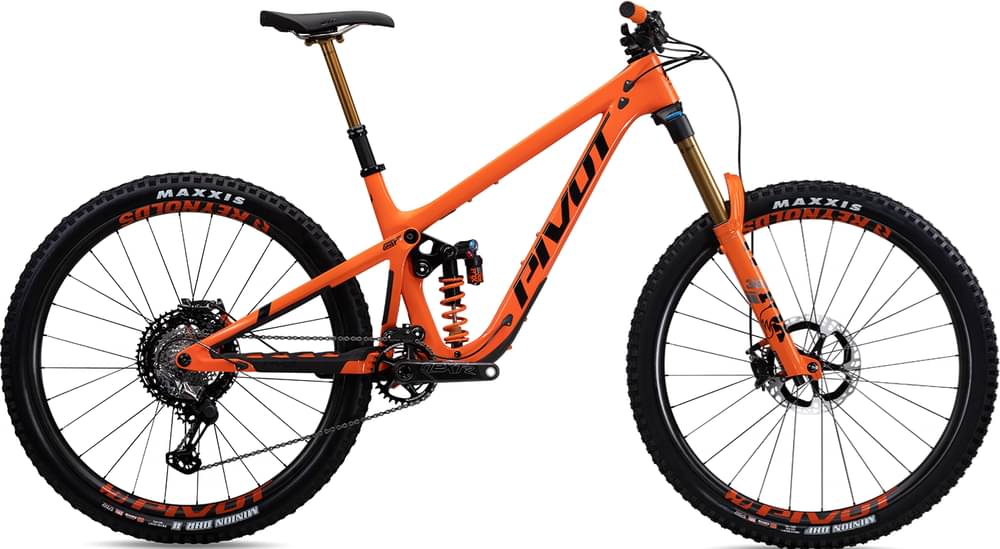

Pivot Firebird Team XX1 AXS – Air 2022
2022 Mountain
Estimate price |
11,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
162cm - 174cm
SM Low
162cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 189cm
LG Low
179cm - 189cm
XL High
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Firebird
Suspension Fork
Fox Factory 38 29", 44mm offset, GRIP2 - 170mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29" 15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM Code RSC 4-piston
Disk Rotors
SRAM Centerline CenterLock - 200mmSRAM Centerline CenterLock - 200mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Rock Shox Reverb AXS 125mm (SM), 170mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.32 mm | 1.35 mm | 1.29 mm | 1.31 mm | 1.25 mm | 1.27 mm |
| Bottom Bracket Height | 356 mm | 350 mm | 356 mm | 350 mm | 356 mm | 350 mm | 356 mm | 350 mm |
| Front Center | 776 mm | 777 mm | 804 mm | 806 mm | 829 mm | 830 mm | 855 mm | 856 mm |
| Rake | 38 mm | 37 mm | 38 mm | 37 mm | 38 mm | 37 mm | 38 mm | 37 mm |
| Trail | 136 mm | 141 mm | 136 mm | 141 mm | 136 mm | 141 mm | 136 mm | 141 mm |
| Stack | 604 mm | 607 mm | 616 mm | 619 mm | 625 mm | 628 mm | 634 mm | 637 mm |
| Reach | 442 mm | 437 mm | 465 mm | 460 mm | 485 mm | 480 mm | 507 mm | 502 mm |
| Top Tube Length | 589 mm | 590 mm | 615 mm | 616 mm | 632 mm | 633 mm | 656 mm | 657 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 77 ° | 76.5 ° | 77.5 ° | 77 ° | 77.5 ° | 77 ° |
| Seat Tube Length | 375 mm | 375 mm | 410 mm | 410 mm | 440 mm | 440 mm | 470 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 64 ° | 64.6 ° | 64 ° | 64.6 ° | 64 ° | 64.6 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 108 mm | 108 mm | 118 mm | 118 mm | 128 mm | 128 mm |
| Chainstay Length | 422 mm | 423 mm | 425 mm | 426 mm | 429 mm | 430 mm | 436 mm | 437 mm |
| Wheelbase | 1198 mm | 1199 mm | 1229 mm | 1231 mm | 1258 mm | 1259 mm | 1291 mm | 1292 mm |
| Bottom Bracket Drop | 14 mm | 20 mm | 14 mm | 20 mm | 14 mm | 20 mm | 14 mm | 20 mm |
| Standover Height | 659 mm | 654 mm | 670 mm | 664 mm | 691 mm | 685 mm | 701 mm | 696 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 162 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
About this model
Firebird Team XX1 AXS – Air belongs to the Pivot Firebird model. 84 bikes variations carry this model name so far. You can easily view all of the Pivot Firebird bikes models from 2022, here.
Model range prices
Pivot Firebird Race XT 2022 is the most affordable bike of this model and has a price of 6099$. On the other hand, Pivot Firebird 29 Team XX1 AXS 2022, is the most expensive and costs 13431$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 11399$. In conclusion, this bike price is 216.73% more expensive than the price of the average Enduro bike.
Overview of components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Factory Float X2 rear shock model, which has a travel of 165mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Firebird Team XX1 AXS – Air bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Firebird Team XX1 AXS – Air comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Firebird Team XX1 AXS – Air includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
