Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset X01, GX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES 27.5
Suspension Fork
Fox Performance 32 27.5", 44mm offset, GRIP - 100mm
Drivetrain
Rear Derailleur
SRAM XO1 12-Speed
Shift Levers
SRAM GX1 12-Speed
Cassette
SRAM GX1 XG-1275 10-50t
Crank
SRAM GX Eagle DUB 32t
Chain
SRAM GX1 12-Speed
Wheels
Rims
SUNringlé Charger Comp w/ SUNringlé SRC hub, 27mm - 27.5"
Tires
Maxxis Ikon 27.5" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 27.5" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI
Brakes
Brakes
SRAM Level TL
Disk Rotors
SRAM Centerline 6-Bolt - 160mmSRAM Centerline 6-Bolt - 160mm
Cockpit
Stem
Phoenix Team XC/Trail - 75mm
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Volt
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Stack | 575 mm | 589 mm | 594 mm | 607 mm |
| Reach | 386 mm | 402 mm | 415 mm | 430 mm |
| Top Tube Length | 553 mm | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 68.75 ° | 69.25 ° | 69.25 ° | 69.5 ° |
| Head Tube Length | 89 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1062 mm | 1076 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 650 | 688 mm | 726 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
About this model

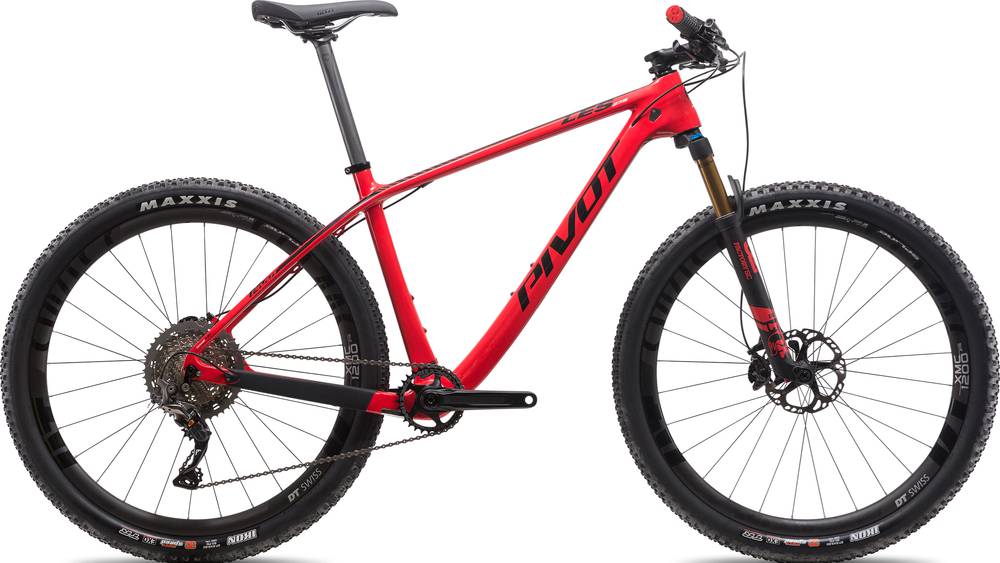

LES 27.5 Race X01 is part of the Pivot Les model. Pivot launched 126 bikes of this model so far. Take a sneak peek at all Pivot Les bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Pivot LES 27.5 Race XT 2019 has a starting price of 3799$. Pivot LES SL Team XX1 AXS 2019 on the other hand is the most expensive at 8199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 4299$. Comparing the average cost of a Crosscountry bike to this one, you will see that LES 27.5 Race X01 price is 125.67% higher.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on LES 27.5 Race X01 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot LES 27.5 Race X01 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Pivot LES 27.5 Race X01 bike has 4 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, finding one for you shouldn’t be a problem.
