Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset X01 Eagle, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES 27.5
Suspension Fork
Fox Performance 32 27.5", 44mm offset, GRIP - 100mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM Descendant 7k Eagle DUB 32t
Chain
SRAM GX Eagle 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 27.5” 15x110 F/12x148 R
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPIMaxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Brakes
Brakes
SRAM Level TL 4-piston
Disk Rotors
SRAM Centerline 6-bolt - 160mmSRAM Centerline 6-bolt - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Stack | 575 mm | 589 mm | 594 mm | 607 mm |
| Reach | 386 mm | 402 mm | 415 mm | 430 mm |
| Top Tube Length | 553 mm | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 68.75 ° | 69.25 ° | 69.25 ° | 69.5 ° |
| Head Tube Length | 89 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1062 mm | 1076 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 650 | 688 mm | 726 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
Model Overview

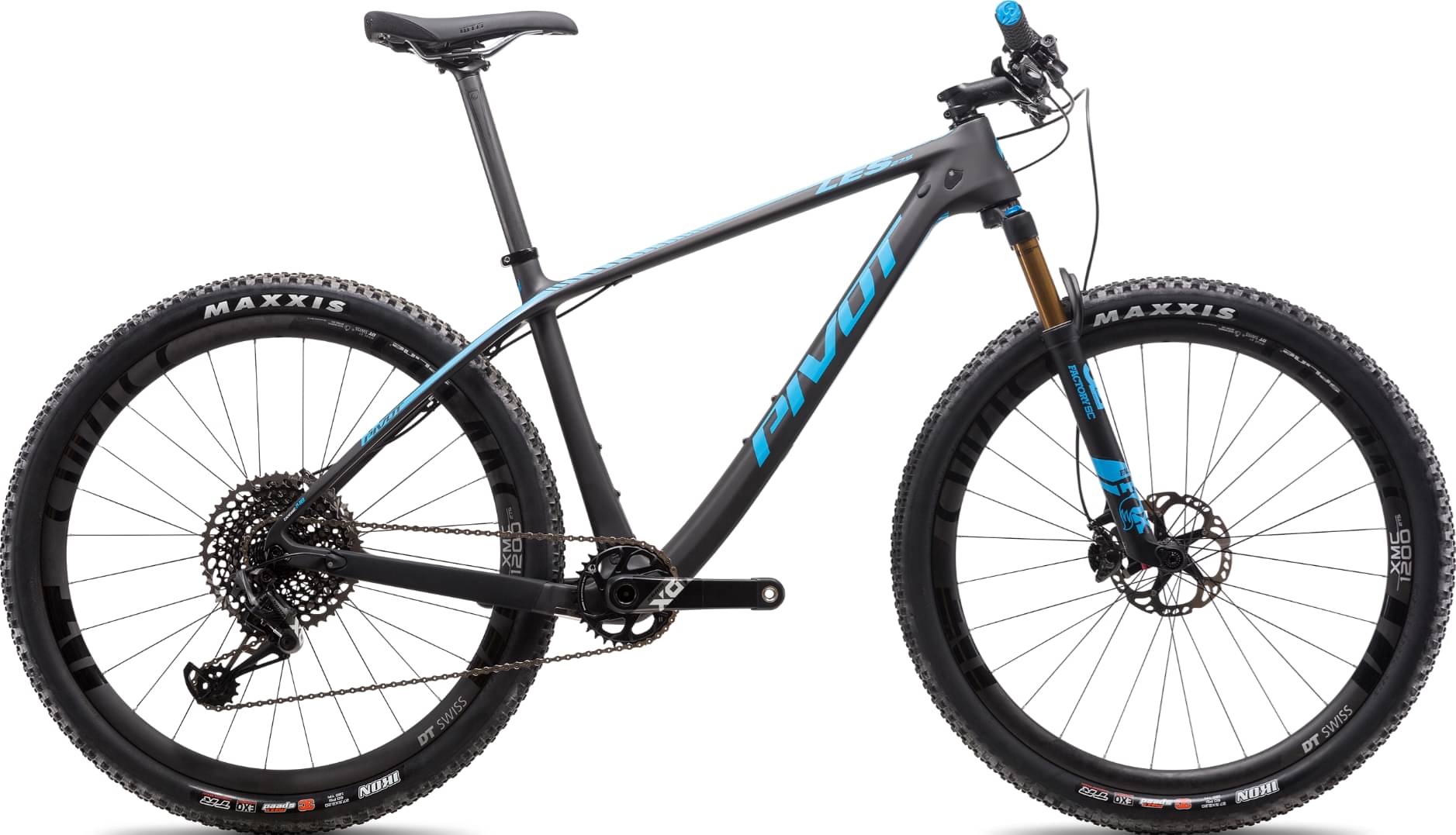

LES 27.5 Race X01 is part of the Pivot Les model. 126 bikes variations carry this model name so far. Take a sneak peek at all Pivot Les bikes models from 2022, by clicking here.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2022 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot LES SL Team XX1 AXS 2022, is the most expensive and costs 10033$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 5149$. Doing a quick comparison, we notice that LES 27.5 Race X01 price is 170.29% more expensive than the average cost of a Crosscountry bike.
LES 27.5 Race X01 components
Fork
The LES 27.5 Race X01 comes factory-installed with the Fox Performance Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the LES 27.5 Race X01 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LES 27.5 Race X01 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Pivot LES 27.5 Race X01 bike has 4 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In short, you can easily find one that suits you.
