Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES 27.5
Suspension Fork
Fox Performance 32 27.5", 44mm offset, GRIP - 100mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano SLX M7100 ISPEC EV 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Ride 32T
Chain
Shimano CN-M7100 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 25mm - 27.5”
15x110 F/12x148
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Brakes
Brakes
Shimano SLX M7100 2-piston
Cockpit
Stem
Phoenix Race XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Stack | 575 mm | 589 mm | 594 mm | 607 mm |
| Reach | 386 mm | 402 mm | 415 mm | 430 mm |
| Top Tube Length | 553 mm | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 68.75 ° | 69.25 ° | 69.25 ° | 69.5 ° |
| Head Tube Length | 89 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1062 mm | 1076 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 650 | 688 mm | 726 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |

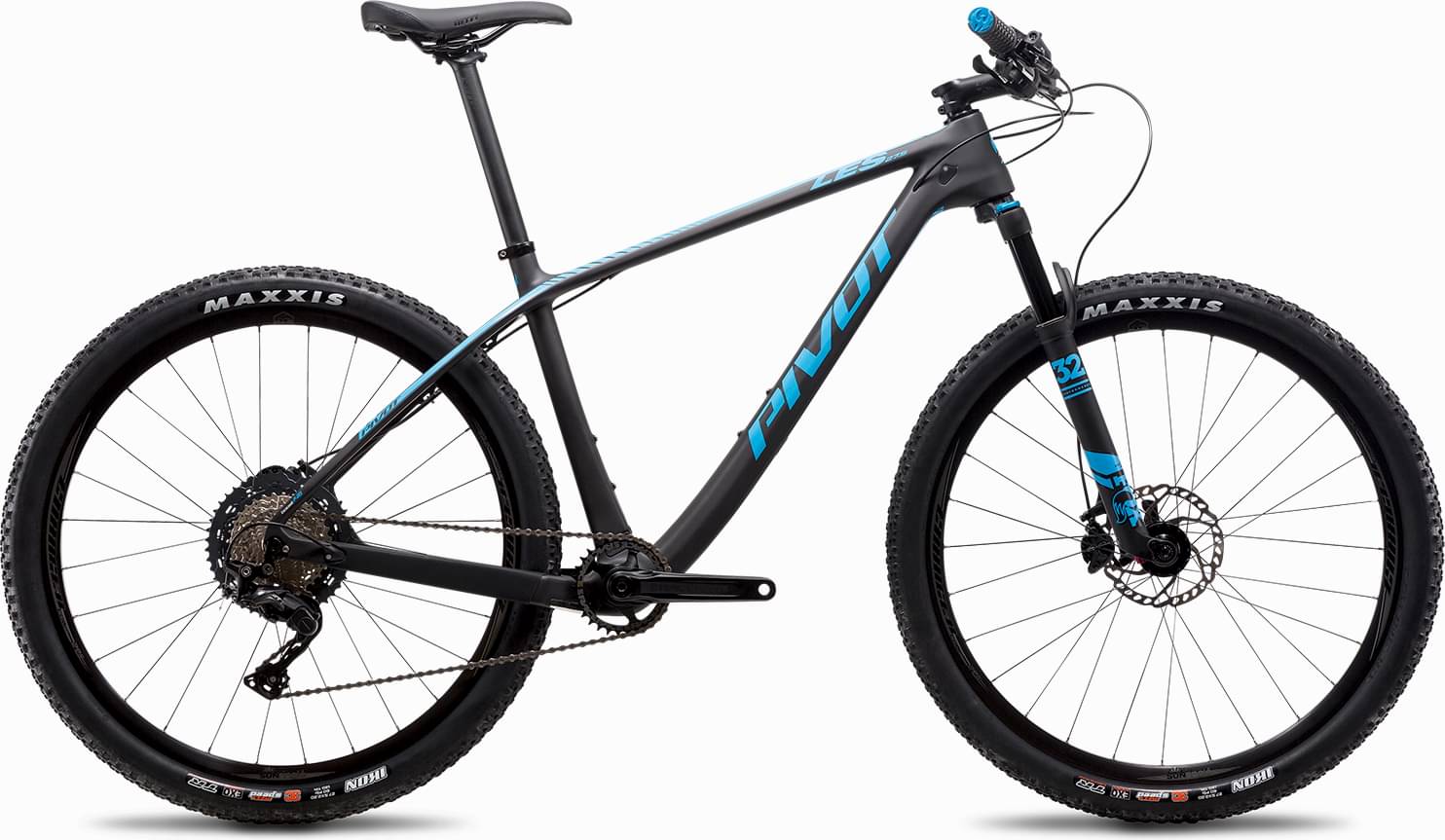

Model Overview
LES 27.5 Race XT completes the Pivot Les model. Pivot released 126 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2023 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot LES SL Team XX1 AXS 2023, is the most expensive and costs 9799$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Pivot released this model in 2023, its price was 4777$. In conclusion, this bike price is 150.76% higher than the price of the average Crosscountry bike.
Overview of components
Fork
The LES 27.5 Race XT comes factory-installed with the Fox Performance Float 32 fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on LES 27.5 Race XT are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot LES 27.5 Race XT is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Pivot LES 27.5 Race XT bike has 4 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In short, you can easily find one that suits you.
