Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES 27.5
Suspension Fork
Fox Factory Stepcast 32 27.5", 44mm offset, FIT4 - 100mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next SL 34t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"
15x110 F/12x148 R
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Brakes
Brakes
Shimano XTR M9100 2-piston
Disk Rotors
Shimano XTR CenterLock - 160mm
Shimano XTR CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - Race
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Phoenix Team Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Stack | 575 mm | 589 mm | 594 mm | 607 mm |
| Reach | 386 mm | 402 mm | 415 mm | 430 mm |
| Top Tube Length | 553 mm | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 68.75 ° | 69.25 ° | 69.25 ° | 69.5 ° |
| Head Tube Length | 89 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1062 mm | 1076 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 650 | 688 mm | 726 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
About this model

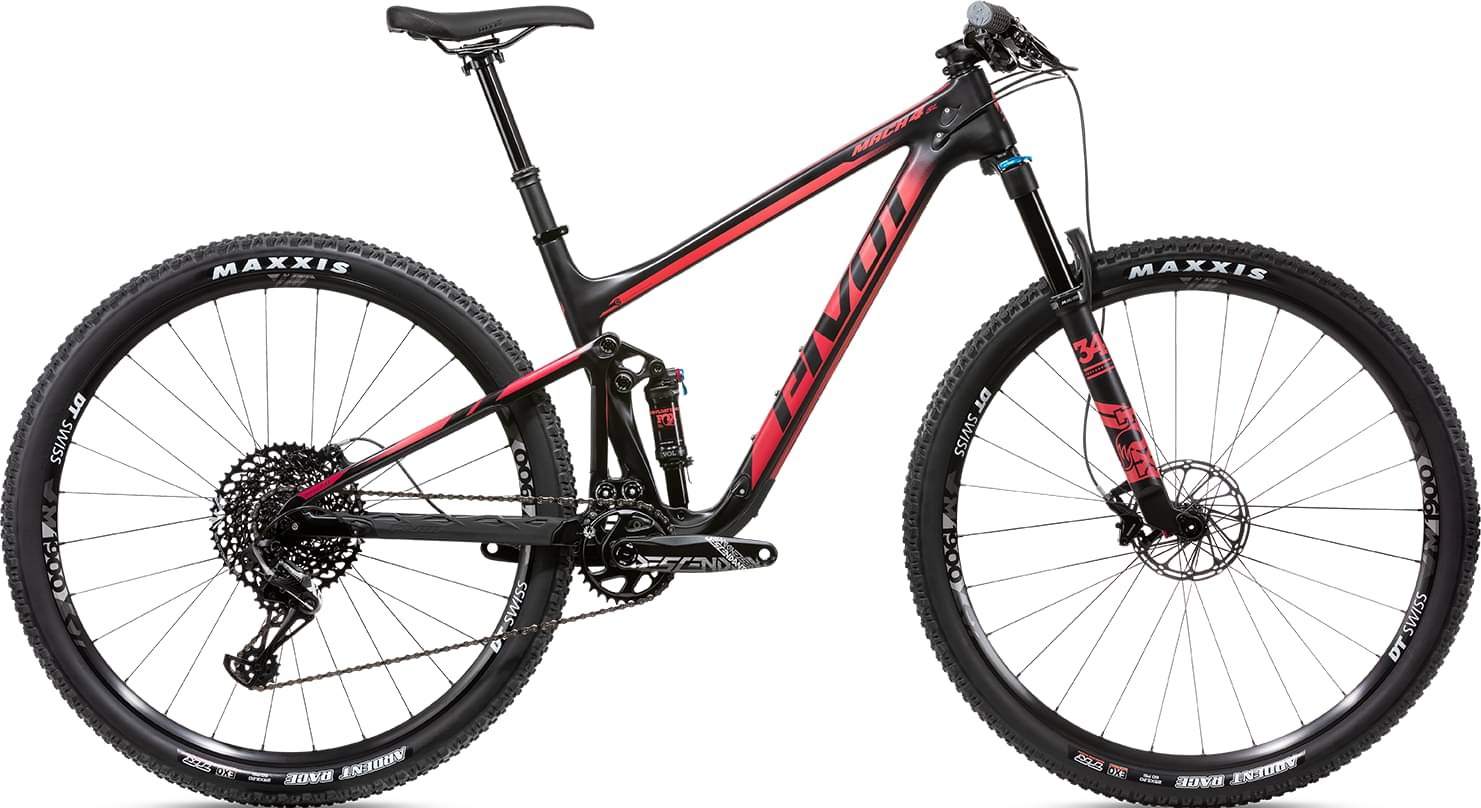

LES 27.5 Team XTR is a Pivot Les model. Pivot released 126 bikes variations of this model so far. Take a sneak peek at all Pivot Les bikes models from 2022, by clicking here.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2022 is the most economical model, with a starting price of 4199$. Pivot LES SL Team XX1 AXS 2022 on the other hand costs 10033$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 8652$. Doing a quick comparison, we notice that LES 27.5 Team XTR price is 354.17% more expensive than the average cost of a Crosscountry bike.
Overview of components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The LES 27.5 Team XTR 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LES 27.5 Team XTR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
