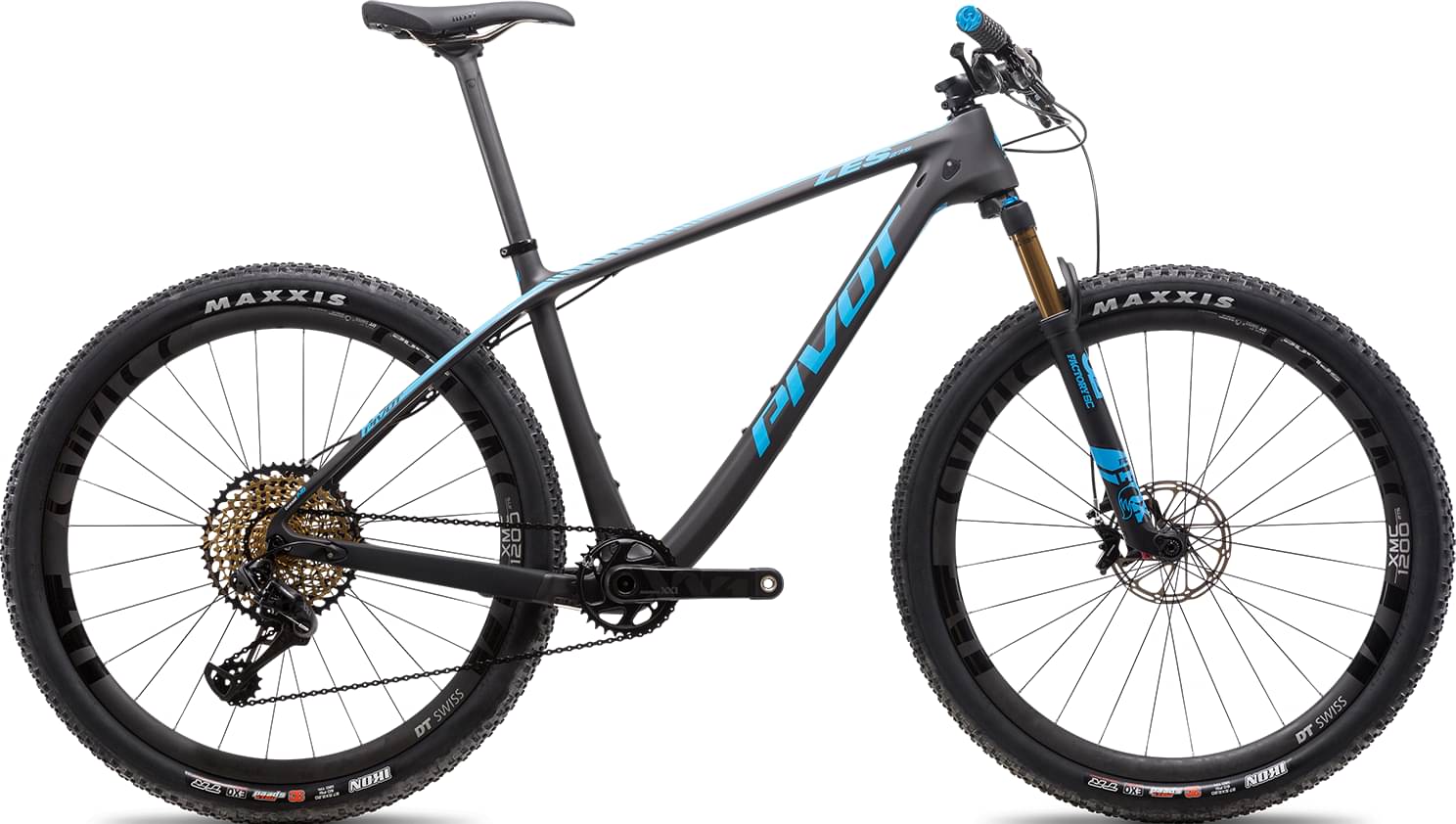

Pivot LES 27.5 Team XX1 AXS 2022
2022 Mountain
Estimate price |
10,436$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES 27.5
Suspension Fork
Fox Factory Stepcast 32 27.5", 44mm offset, FIT4 - 100mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 34t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"
15x110 F/12x148 R
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Brakes
Brakes
SRAM Level Ultimate 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mm
SRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - Race
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Phoenix Team Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Stack | 575 mm | 589 mm | 594 mm | 607 mm |
| Reach | 386 mm | 402 mm | 415 mm | 430 mm |
| Top Tube Length | 553 mm | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 68.75 ° | 69.25 ° | 69.25 ° | 69.5 ° |
| Head Tube Length | 89 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1062 mm | 1076 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 650 | 688 mm | 726 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
About this model
LES 27.5 Team XX1 AXS completes the Pivot Les model. Pivot released 126 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2022 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot LES SL Team XX1 AXS 2022, is the most expensive and costs 10033$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 9661$. If we compare this with the average Crosscountry bike cost we notice that the price is 407.14% more expensive.
LES 27.5 Team XX1 AXS components
Fork
The LES 27.5 Team XX1 AXS comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the LES 27.5 Team XX1 AXS bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The LES 27.5 Team XX1 AXS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
LES 27.5 Team XX1 AXS comes in 4 sizes, that range from 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
